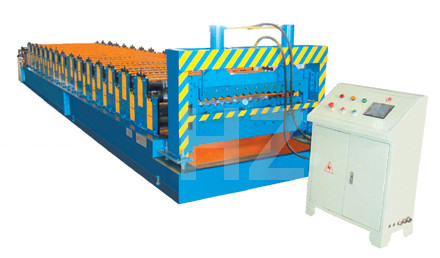

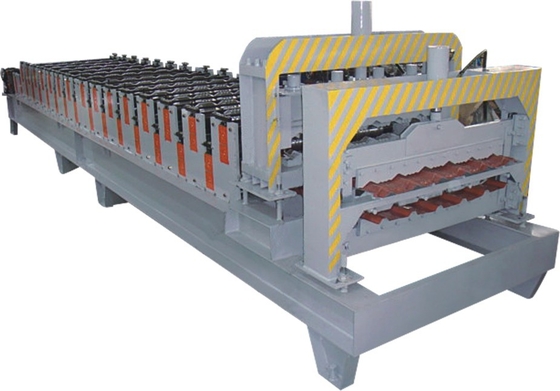

Galvanized Steel Double Layer Roll Forming Machine With HRC50 - 60 Heat Treatment

  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-914-1250
Minimum Order Quantity 1 set
Price negotation
Packaging Details water proof package
Delivery Time 90 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Double Layer Sheet 0.3~0.8mm Hydraulic Decoiler 5 Tons And 10 Tons
Motor Power 5.5KW Material GCR15 Or #45
Hardness 55~58 Degree Speed 10~20m/min
High Light

double deck roll forming machine

,

metal roofing forming machine
Leave a Message
Product Description

Galvanized Steel Double Layer Roll Forming Machine For Roof Wall Cladding With HRC50 - 60 Heat Treatment



Main Specification of Double layer



Material thickness 0.3-0.8mm
Material width depend on customer’s requirement
Decoiler Type manual or automatical type ( depend on customer’s requirement )
Weight Capacity Of Decoiler 5 Ton
Main Motor Power 5.5kw
Hydraulic Motor Power 4 kw
Axis Diameter 75mm
Working Speed 0-15m/min
Transporting Type Chain Transmission
Heat Treatment of Cutting Blade HRC 50-60
Voltage 380V 50Hz 3phases(changeable as needs)
Material of the cutter Cr12Mov,quench treatment
Processing tolerance 10m±1.5mm
Control system Panasonic PLC control
Yield strength 235Mpa



Working Flowing



Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table







Components



  • Decoiler ---------------------------------------------- 1 Unit
  • Feeding guide ---------------------------------------- 1 Unit
  • main roll forming machine ---------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station ------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table ----------------------------------------- 1 Unit



Application



Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding



Profile Drawing of Double Layer



Galvanized Steel Double Layer Forming Machine For Roof Wall Cladding With HRC50 - 60 Heat Treatment

Galvanized Steel Double Layer Forming Machine For Roof Wall Cladding With HRC50 - 60 Heat Treatment





Our Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

Galvanized Steel Double Layer Roll Forming Machine With HRC50 - 60 Heat Treatment 2Galvanized Steel Double Layer Roll Forming Machine With HRC50 - 60 Heat Treatment 3
