0.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Roof Panel

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-914-1220
Minimum Order Quantity 1 set
Price negotation
Packaging Details water proof package
Delivery Time 90 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Rollers Material Gcr15 Hardness 55~58 Degree
Motor Power 5.5KW;380V;50HZ;3 PHASE Working Speed 10~20m/min
Thickness Of Input 0.3·0.8mm Color To Be Customized
High Light

double deck roll forming machine

,

metal roll forming machines
Leave a Message
Product Description

0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding











Details of Double Layer Roof Panel Roll Forming Machine



  • Material thickness: 0.3-0.8mm
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 7.5 Kw
  • Hydraulic Motor Power: 3 Kw
  • Forming Station: approx 18 & 18 ( depend on profile drawing )
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 8.5 Ton



Work Flowing of Double Layer Roof Panel




Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out tabl



Main Component

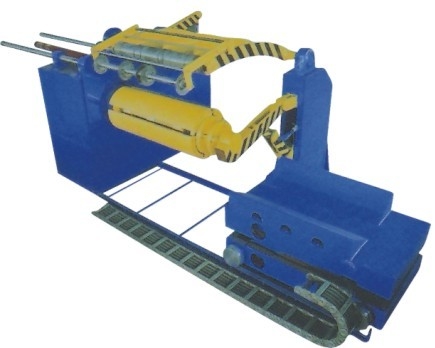

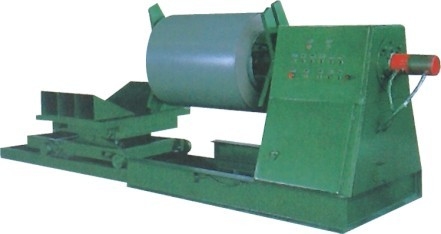

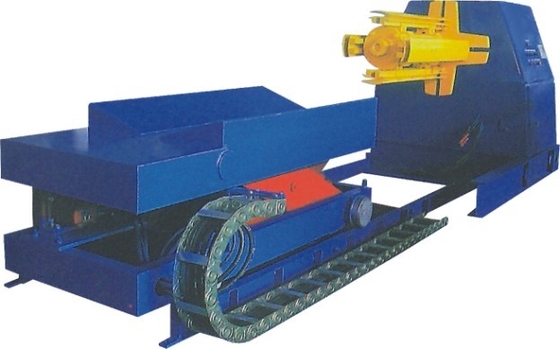

Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit

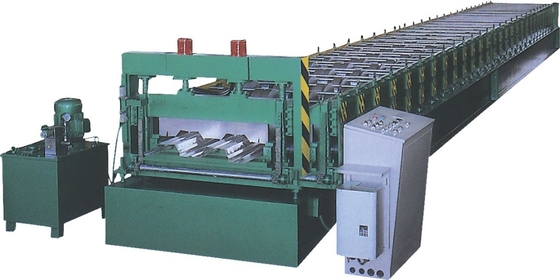

Main Roll Forming Machine 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control 1 unit
Output Table 1 Unit







Application





Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding





Our Advantage





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience





Reference Drawing







0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding

0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding

0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding

0.3 - 0.8mm Thickness Double Layer Roof Panel Roll Forming Machine For Roof Wall Cladding



0.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Roof Panel 40.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Roof Panel 50.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Roof Panel 60.3 - 0.8mm Thickness Double Layer Roll Forming Machine For Roof Panel 7
