U Guide Rolling Shutter Making Machine With Rubber System 410~ 580mm
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-180-200 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 60 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Guarantee | 5 Years | Materila Of Rollers | SKD11 Or Cr15 |
|---|---|---|---|
| Hardness Of Rollers | HRC58~62 Degree | Input Material | GI And PPGI |
| Color | To Be Customized | PLC | Delta Brand |
| High Light | rolling shutter making machine,metal forming equipment |
||
Product Description

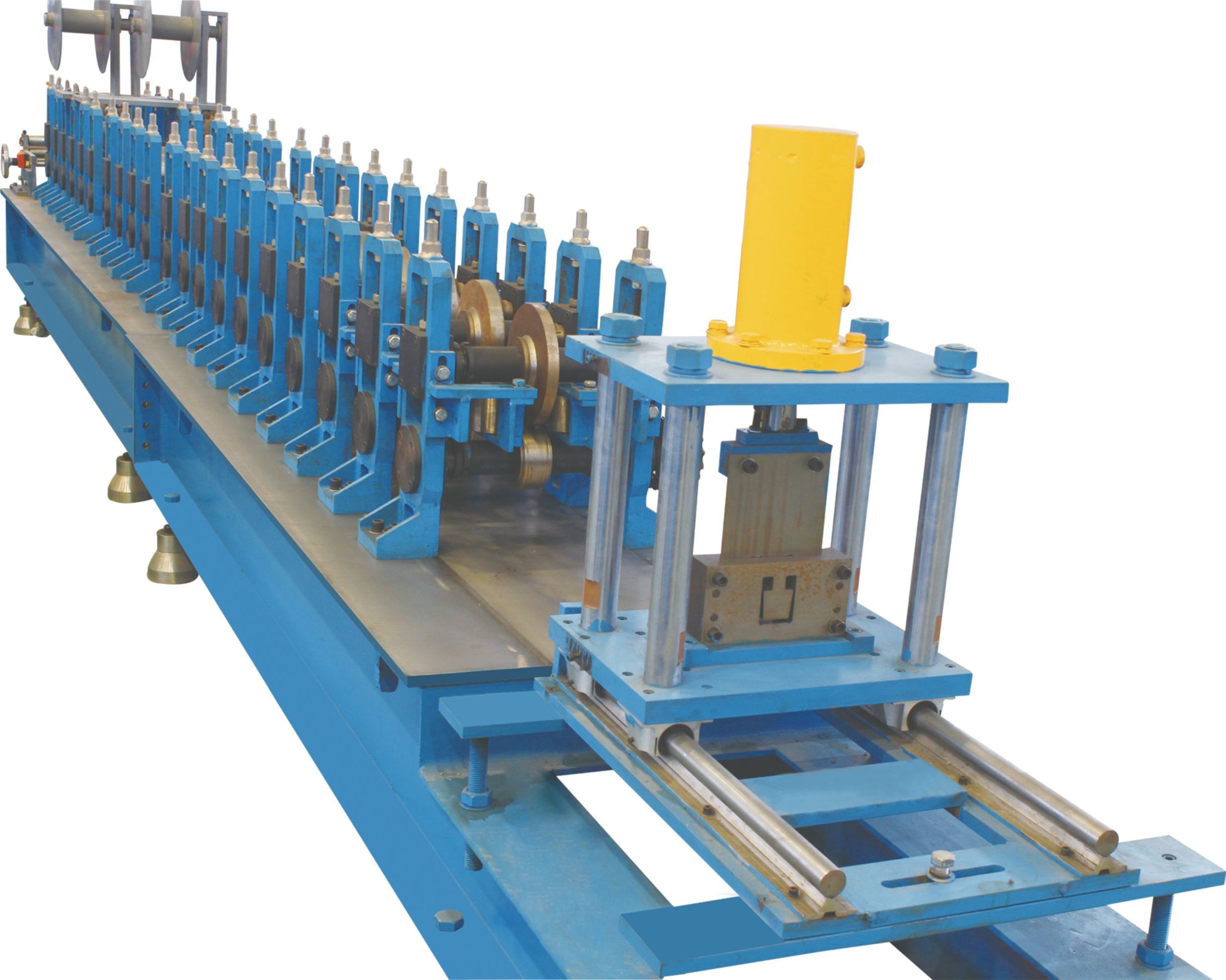

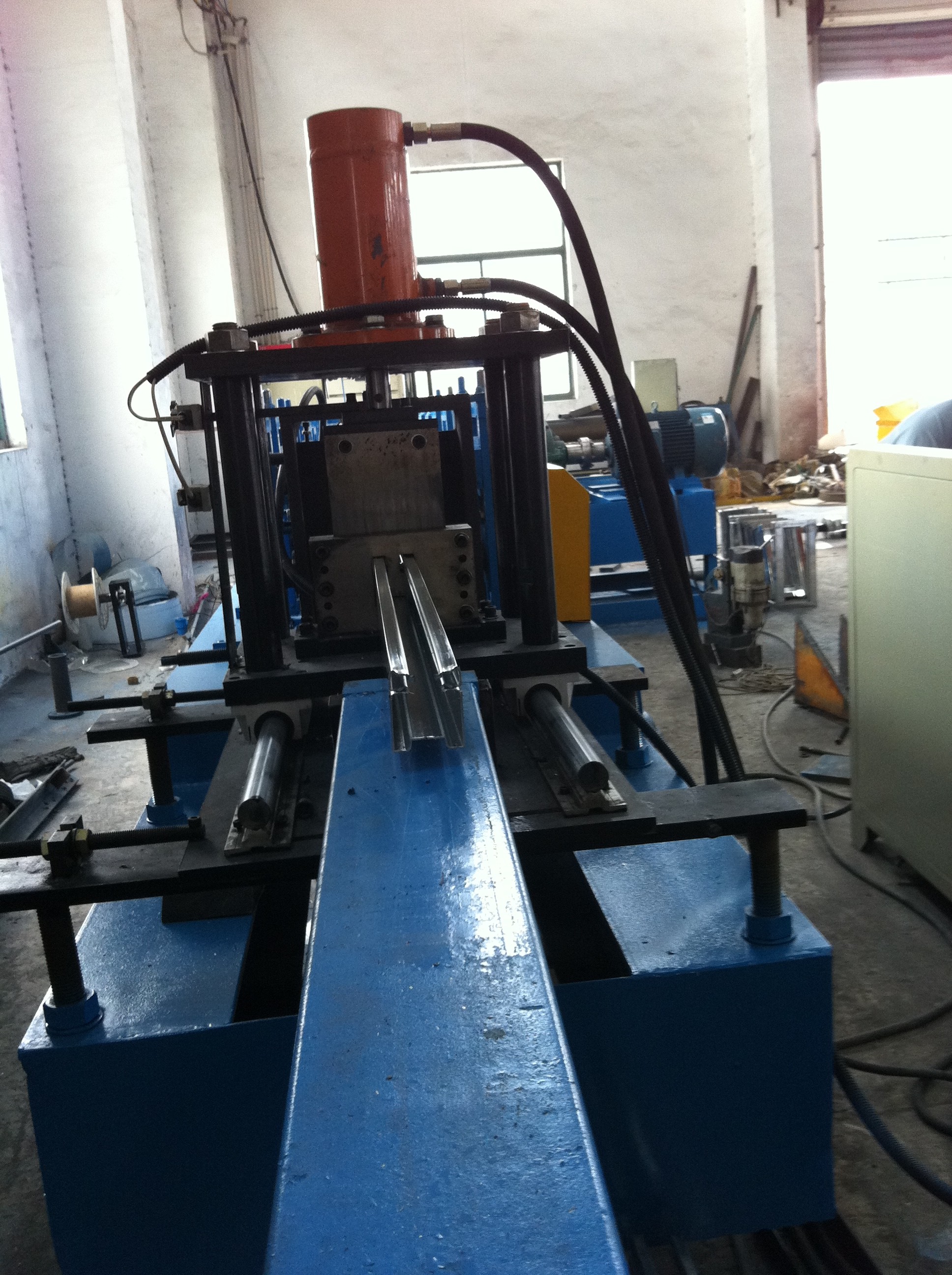

U guide forming machine for rolling shutters doors with rubber system
Main component of the line:
| NO. | name | quantity |
| 1 | Un-coiler (2 tons ) MANUAL | 1 |
| 2 | roll former | 1 |
| 3 | Hydraulic cutter | 1 |
| 4 | PLC control cabinet | 1 |
| 5 | Output table with rollers(6 meters) | 1 |
TECHNICAL DETAILS
Un-coiler
1. Capacity: 2 tons
2. Material: #45 steel quenched
3. Inner diameter: 410~ 580mm
Main roll former
1. Stations: 20
2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON,800 MPA
3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA
4. Bearing brand: FAG Germany
5. Main Motor: 5.5 KW, 380V, 50HZ
CHAMICAL COMPOSITION:
| C | SI | MN | P | S | CR | NI | CU | MO | AI | V | B | |
| Shaft | 0.450 | 0.220 | 0.540 | 0.027 | 0.008 | 0.050 | 0.020 | 0.010 | 0.000 | 0.009 | 0.000 | 0 |
| Rollers | 1.00 | 0.32 | 0.33 | 0.011 | 0.003 | 1.49 | 0.05 | 0.00 | 0.02 | 0.041 | ||
| Cutter | 1.57 | 0.34 | 0.38 | 0.022 | 0.010 | 11.10 | 0.18 | 0.14 | 0.48 | |||
| Cut knife | 2.04 | 0.23 | 0.23 | 0.020 | 0.010 | 11.66 | 0.12 | 0.06 |
PLC Control Cabinet:
1. Touch screen brand: Delta
2. PLC brand: Delta
3. Inverter brand: Delta
4. Main components for low pressure electricity: Schneider Germany
Output table
1. Length: 6 meters
2. Drive type: Rollers
CUTTING PLATFORM
1. Cutting type: Hydraulic cutter
2. Motor: 4KW; 380V; 50HZ
3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950

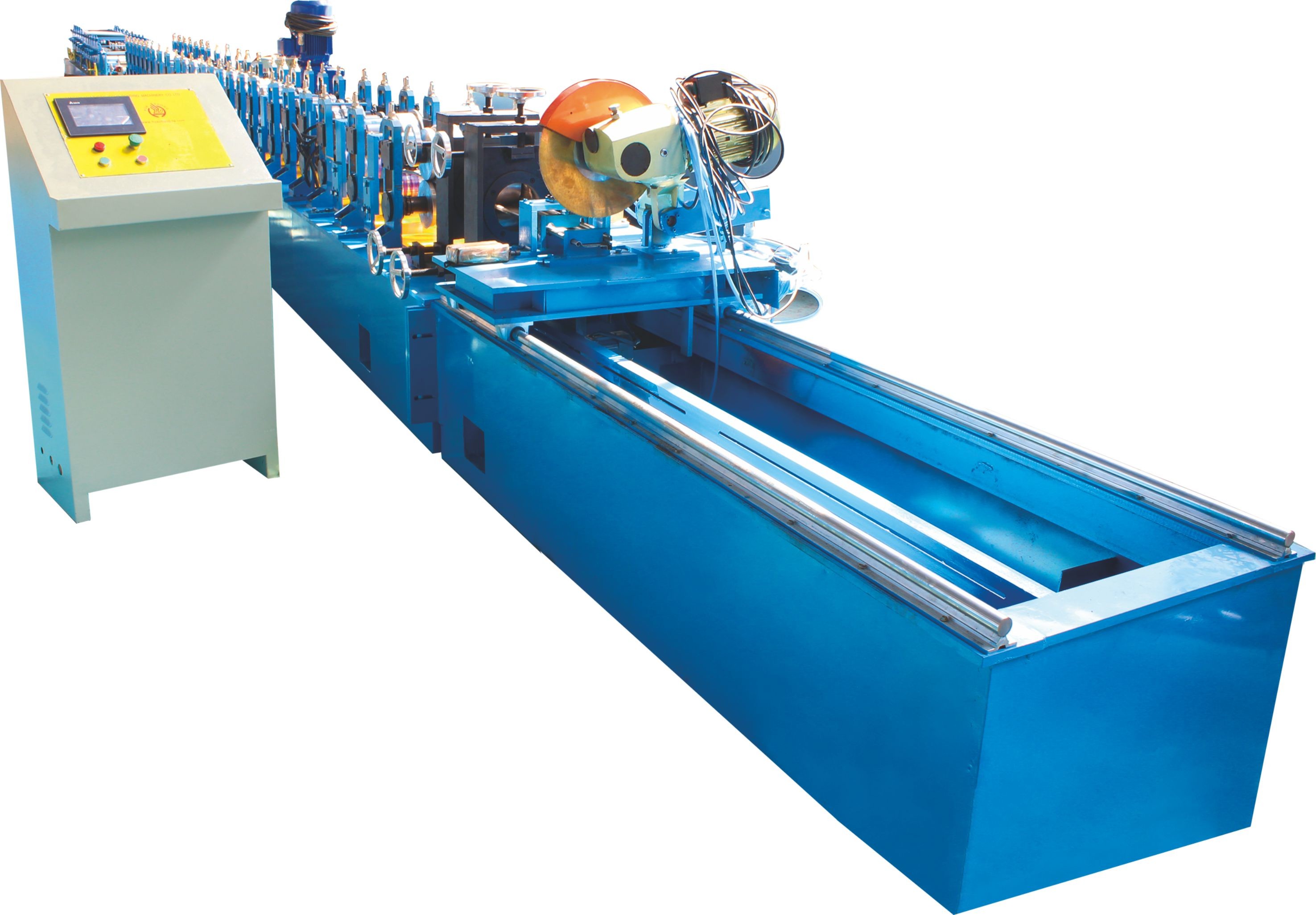

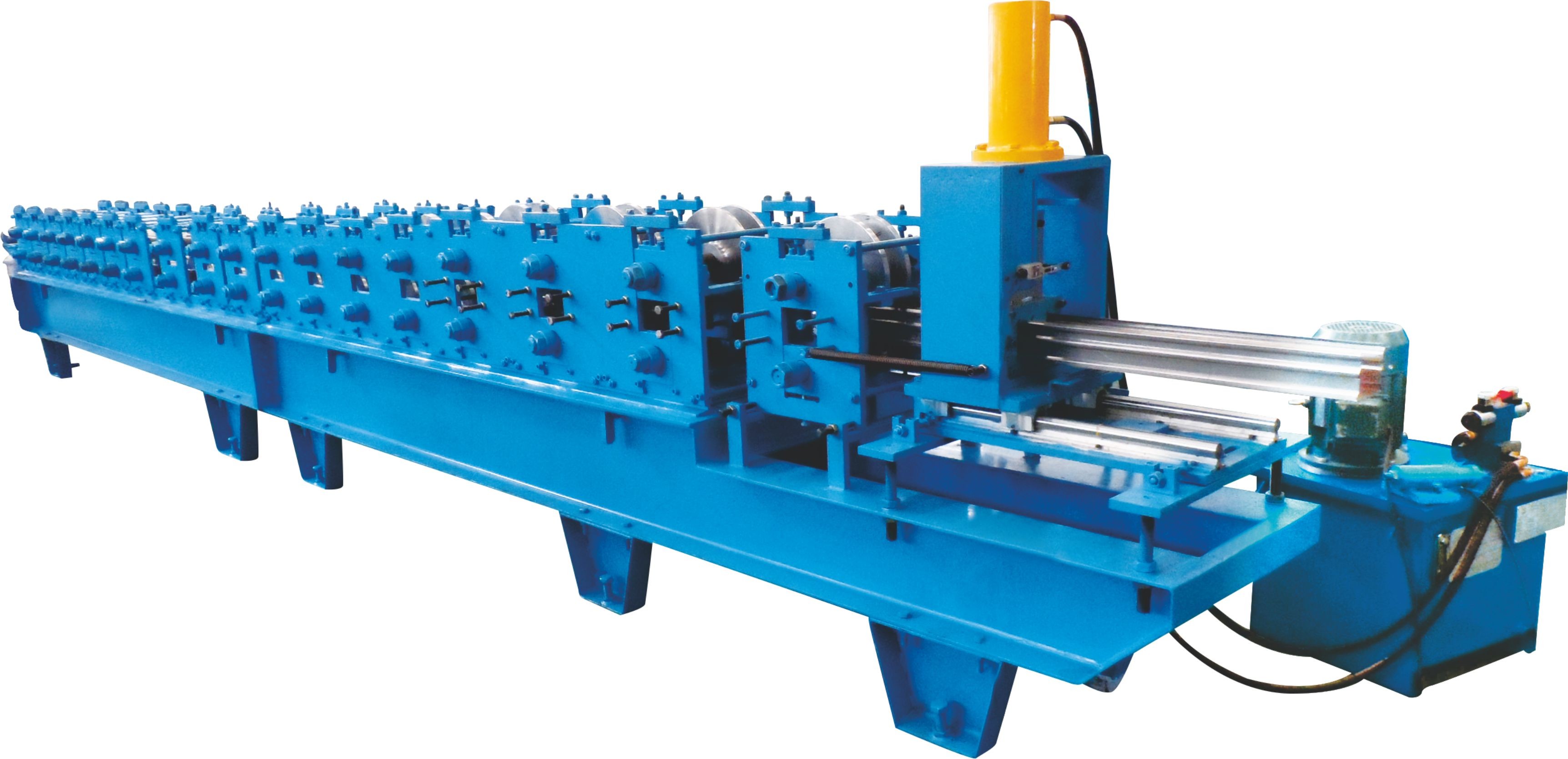

Bottom shutters profile forming machine
