Rainwater Downspout Roll Forming Machine With 12000mm*1100mm*1200mm Dimension

Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-400-500-600
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 70 days
Payment Terms L/C, D/P, T/T
Supply Ability 3 per month
Product Details
Application House Construction Material Material PPGI
Guarantee 5 Years Elbow Machine Elbow Machine Separately
Rollers Material CR15, Mould Steel Hardness HRC58~60 Degree, Chromed
High Light

tube roll forming machine


steel pipe making machine

Leave a Message
Product Description

Rainwater Downspout Roll Forming Machine with About 12000mm*1100mm*1200mm Dimension


A). Main Specifications


  1. Main motor power: 7.5Kw
  2. Number of roll stand: About 20 stands
  3. Forming speed: 6-12m/min
  4. Voltage: 380 V, 3 Phase 50Hz ( or depend on customer’s requirement )
  5. Dimension of machine: About 12000mm*1100mm*1200mm
  6. Machine wight: about 12 Ton
  7. Material of Axis: High grade 45# steel
  8. Diameter of Axis: φ75mm
  9. Material of Roller: High grade 45#, polished and coated with 0.05mm Chrome Surface.
  10. Materical of Machine Frame: A3 Steel, thickness 18mm
  11. Electrical Control: PLC Frequency Control System with touch screen
  12. PLC: PANASONIC Brand
  13. Encoder: OMRON Brand
  14. Transducer: PANASONIC Brand

B). Main Components

Decoiler -------------------------------------------- 1 Unit

Feeding guide -------------------------------------- 1 Unit

main roll forming machine ------------------------ 1 Unit

Hydraulic cutting device --------------------------- 1 Unit

Hydraulic Station ----------------------------------- 1 Unit

PLC computer control ------------------------------ 1 Unit

Output table ---------------------------------------- 1 Unit

Elbow machine -------------------------------------- 1 Unit


C). Working Flow

Decoiler--> Coil sheet guiding and feeding --> Roll forming machine with safty guard--> Tighten Device -> Cut to length --> Out-put Table --> Curving machine



D). Applications


Rainwater downpipe, downspout, rainspout, water pipe, drainpipe


E). Competitive Advantages


1. Durable and widely used products

2.Simple to operate when assemble

3.Direct manufacturer, provide with high quality and best price.

4.Provide sample in free.

5.Products and design solution supplied fast and freely

6.Best design oriented for your special requirements

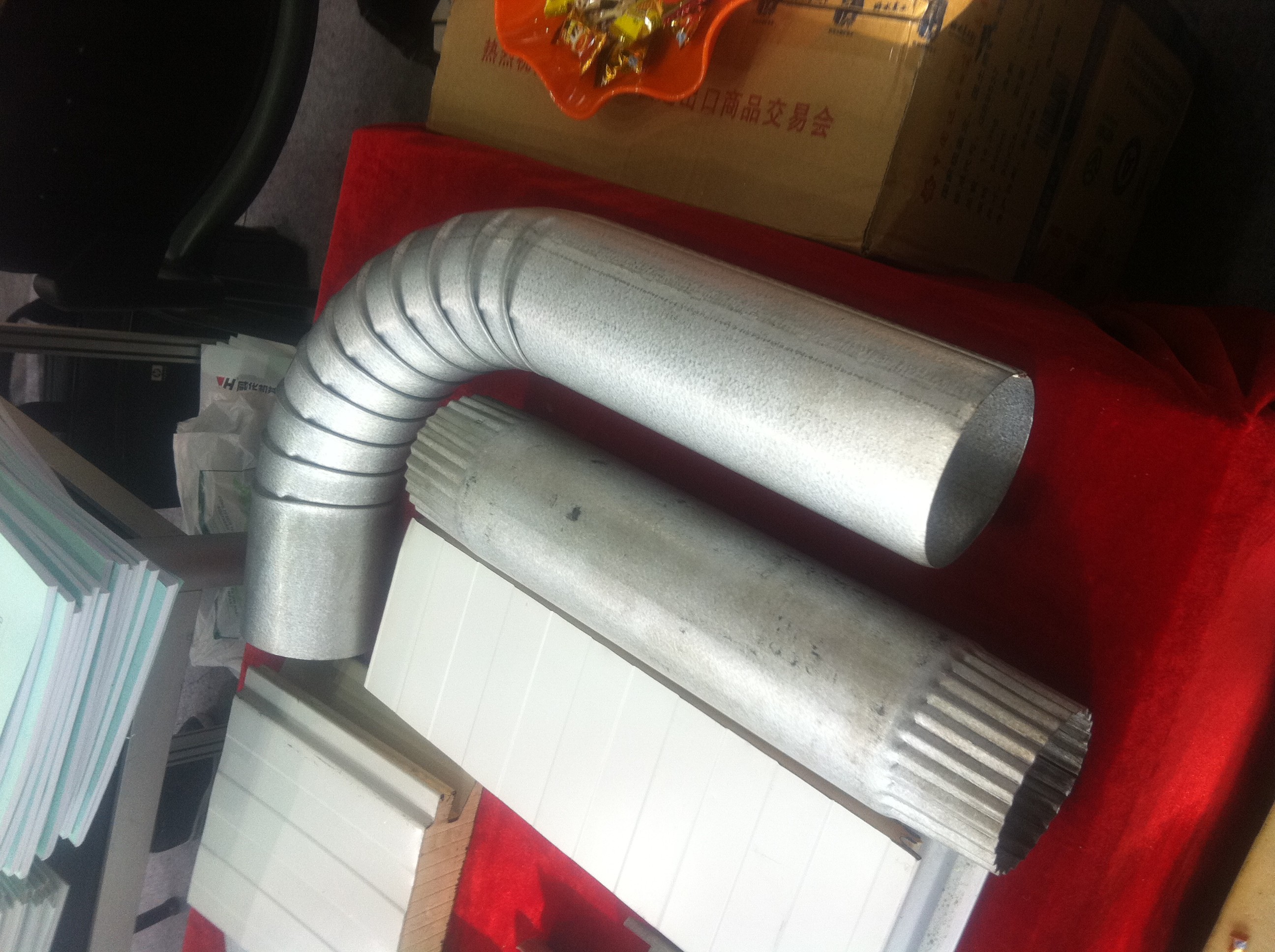

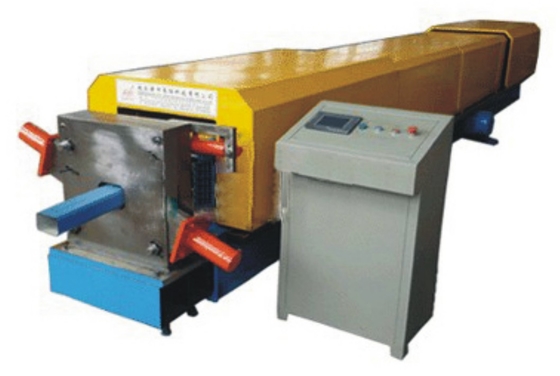

F). Machine Reference Pictures

Rainwater Downspout Roll Forming Machine With 12000mm*1100mm*1200mm Dimension 0Rainwater Downspout Roll Forming Machine With 12000mm*1100mm*1200mm Dimension 1
