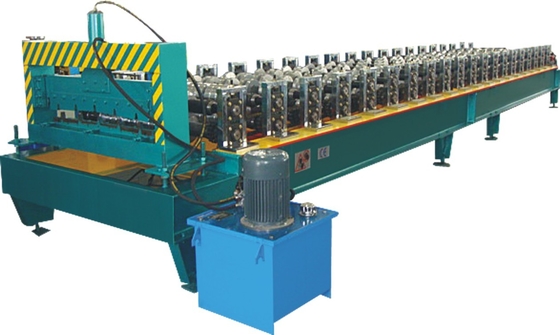

5.5KW High Speed Double Deck Roll Forming Machine With Automatic Hydraulic Cutting

  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-400-500-1000
Minimum Order Quantity 1 set
Price negotation
Packaging Details water proof package
Delivery Time 90 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Rollers Material Gcr15 Hardness 55~58 Degree
Working Speed 10~20m/min Motor Power 5.5 KW ;380V;50HZ;3 Phase
Color To Be Customized
High Light

double deck roll forming machine

,

metal roofing forming machine
Leave a Message
Product Description

5.5KW High Speed Double Deck Roll Forming Machine With Automatic Hydraulic Cutting



A). Main Specifications of Double Layer Roll Forming Machine

  • Material thickness: 0.3-0.8mm
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 3 Kw
  • Forming Station: approx 18 & 18 ( depend on profile drawing )
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: DELTA Brand
  • Encoder: OMRON Brand
  • Transducer: DELTA Brand
  • Machine Weight: about 8.5 Ton



B). working Flow of Double Layer Roll Forming Machine


Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table



C). Main Componerts of Double Layer Roll Forming Machine



  • Decoiler ---------------------------------------------- 1 Unit
  • Feeding guide ---------------------------------------- 1 Unit
  • main roll forming machine ---------------------------- 1 Unit
  • Hydraulic cutting device ------------------------------ 1 Unit
  • Hydraulic Station ------------------------------------- 1 Unit
  • PLC computer control -------------------------------- 1 Unit
  • Output table ----------------------------------------- 1 Unit





D). Applications of Double Layer Roll Forming Machine





Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding





E). Our Advantages of Double Layer Roll Forming Machine





  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience





F). Reference Drawings of Double Layer Roll Forming Machine





7.5KW High Speed Double Deck / Layer Roll Forming Machine With Automatic Hydraulic Cutting

7.5KW High Speed Double Deck / Layer Roll Forming Machine With Automatic Hydraulic Cutting

7.5KW High Speed Double Deck / Layer Roll Forming Machine With Automatic Hydraulic Cutting

7.5KW High Speed Double Deck / Layer Roll Forming Machine With Automatic Hydraulic Cutting

5.5KW High Speed Double Deck Roll Forming Machine With Automatic Hydraulic Cutting 45.5KW High Speed Double Deck Roll Forming Machine With Automatic Hydraulic Cutting 55.5KW High Speed Double Deck Roll Forming Machine With Automatic Hydraulic Cutting 65.5KW High Speed Double Deck Roll Forming Machine With Automatic Hydraulic Cutting 75.5KW High Speed Double Deck Roll Forming Machine With Automatic Hydraulic Cutting 8
