12 Ton Hydraulic Cutting Z / C Channel Purlin Roll Forming Machine With 17 Forming Station
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-400-500-700 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 70 days |
| Payment Terms | L/C, D/P, Western Union, T/T |
| Supply Ability | 2 per month |
Product Details
| Material | GI And PPGI | Motor Power | 15kw, 380v, 50HZ |
|---|---|---|---|
| Forming Speed | 6~12m/min | Color | To Be Customized |
| Rollers Hardness | HRC58~62 Degree, Chromed | ||
| High Light | cz purlin roll forming machine,c channel roll forming machine |
||
Product Description
Hydraulic Cutting Z Channel Purlin Roll Forming Machine With 17 Forming Station LB-Z300
Main Specification of Z Channel Purlin Roll Forming Machine
| Hydraulic Cutting Z Channel Purlin Roll Forming Machine With 17 Forming Station TW-Z300 | |
| Material thickness | 1.5-3.0mm |
| Material | GI, Carbon steel |
| Machine diameter | about 11500x1500x1300mm ( LXWXH ) |
| Weight of machine | about 12 Ton |
| Decoiler | Manual or hydraulic decoiler ( customer can choose ) |
| Weight capacity of decoiler | 5 Ton |
| Forming station | about 17 |
| Principle axis | 80mm diameter |
| Forming speed | 0-15m/min |
| Drive type | 1.5' chain transmission |
| Roller material | GCr15 steel, quenched and heated process |
| Main power | 18.5KW |
| Hydraulic power | 11KW |
| Punching | Hydraulic Punching |
| Electrical Control | PLC Frequency Control System with touch screen |
| PLC | PANASONIC Brand |
| Encoder | OMRON Brand |
| Transducer | PANASONIC Brand |
Main Components
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Main Roof Tile Roll Forming Machine | 1 Unit |
| Hydraulic Pressing for Step | 1 Unit |
| Hydraulic Cutting System | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Box | 1 Unit |
| Support Tables | 1 Unit |
Work Flowing
Decoiler --- Fedding & Leveling --- Punching --- Roll Forming --- Cut-to-length --- Run out table
Reference Drawing
Application
Z purlin, z shaped purlin, z channel, z section, z profile, z shape, steel z purlin, z purlin steel structure
Advantages
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience

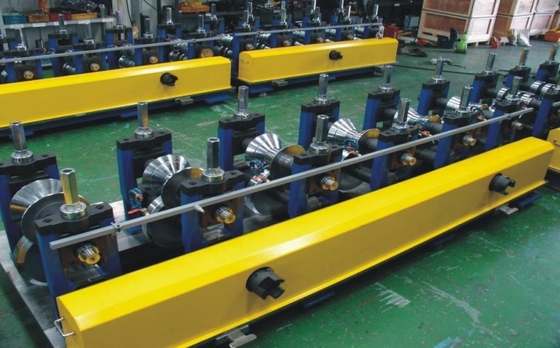

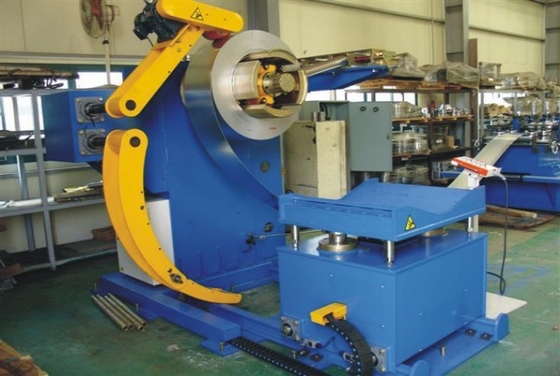

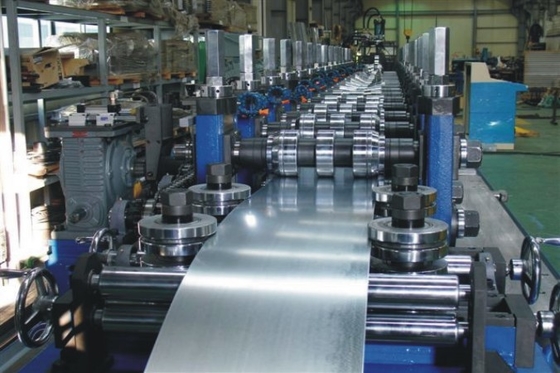

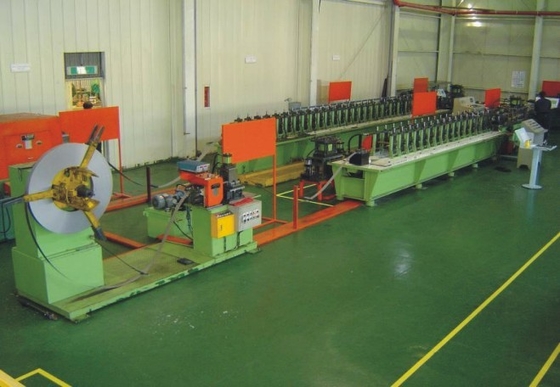

Machine Pictures
