Steel Structure Floor Deck Roll Forming Machine For Roof Deck , Steel Tile TW-FD1250
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-400-500-600 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 90 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Rollers Material | #45, HRC58 Degree | Thickness | 0.3~0.8mm PPGI |
|---|---|---|---|
| Working Speed | 5~12m/min | Certification | ISO9001; CE |
| High Light | metal deck roll forming machine,floor decking forming machine,sheet metal forming equipment |
||
Product Description

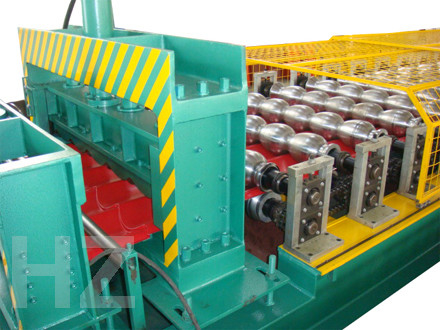

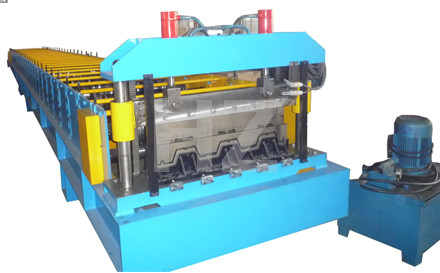

Steel Structure Floor Deck Roll Forming Machine For Roof Deck , Steel Tile TW-FD1250
Main Specifications of Floor Deck Roll Forming Machine
- Material Spec: Galvanized steel sheet
- Thickness of Coil Sheet: 0.8 --1.2 mm
- Main Motor Power of Floor decking roll forming machine: 18.5kw
- Forming Speed: 10--12m/min
- Hydraulic Station Power: 4kw
- Quantity of Stands: About 24 groups
- Hydraulic Pressure: 10~12Mpa
- Controlling System: PLC
- Index Error of Length: 10m±1.5mm
- Total Weight: About 1800kg
- Voltage: 380V 3 phase 50Hz or at buyers requirement
Main Components
- Decoiler ------------------------------------------------- 1 Unit
- Feeding ------------------------------------------------- 1 Unit
- Main roll forming machine ----------------------------1 Unit
- Hydraulic cutting device ------------------------------1 Unit
- Hydraulic Station ------------------------------------- 1 Unit
- PLC computer control --------------------------------1 Unit
- Output table ------------------------------------------- 1 Unit
Reference Drawings
Application
Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...
Our Advantage
- High Quality
- Reliable
- Durable
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
