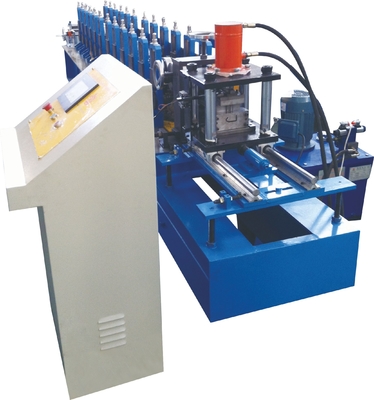

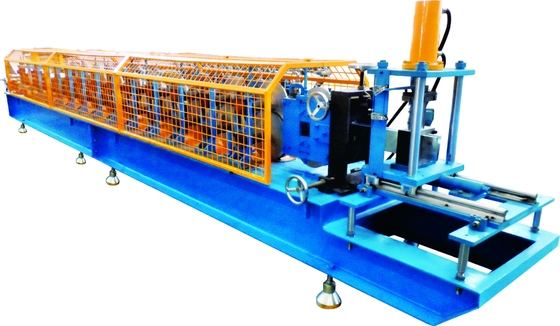

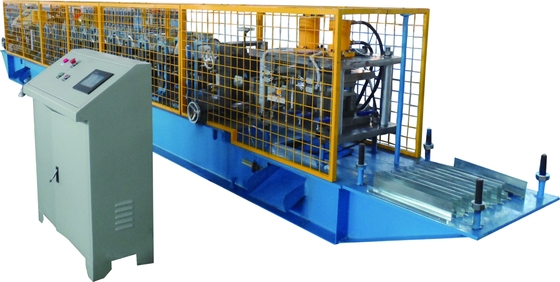

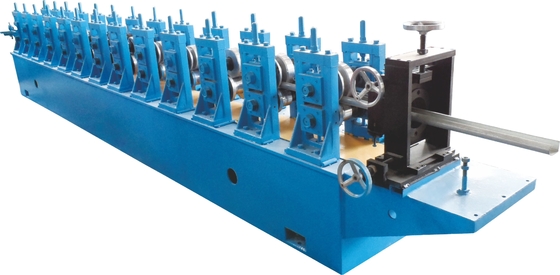

Tracking Profile Cold Roll Forming Machine For V Sturt Forming / Bending Machine
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-120-90 |
| Minimum Order Quantity | 1 set |
| Price | USD15000-USD20000 |
| Packaging Details | water proof package |
| Delivery Time | 60 days |
| Supply Ability | 5 per month |
Product Details
| Customized Pattern | PLC Control, Automatic Cutting | CE Certification | Automatic Punching And Cutting; Blue And Yellow |
|---|---|---|---|
| High Light | cold roll forming equipment,cold roll former |
||
Product Description
Tracking profile forming machine; v sturt forming machine; bending machine
Technical parameters as below:
1, Suitable plate of the rolling :For your choice
2, Forming speed: 3-5m/min (pre-punching system is included)
3, Forming stands: 12
Thickness: 1.5 ~2.0mm
4, Roller material: CR15, HRC 60 Degree. Roller diameter φ120
5, Material of principal axis: Fine steel modulation processing of 45
(axis diameter:φ50)
6, Sprocket wheel: 45 steel high-frequencies quench; distance 25.4. Quantity: 13pcs
7, Motor power: 7.5 KW
8, Cut-off system: Adopts hydraulic pressure drive, cut off after forming.
9, Hydraulic system electrical machinery power: 3 KW
10, Hydraulic system pressure: 10Mpa
11, PLC Control system: Delta system
12, Rack row of work place: Steel rack of 446X199H; Detachable wall plate type row of work place
13. Overall Dimension: 3500mmX700mmX900mm
14, Total weight: 2.5 ton approximately
15. Un-coiler: 2 Ton capacity of manual un-coiler
16. The production procession
Un-coiler ---------- Feeding device -------Roll forming ---- Pre-punching- PLC control --- Hydraulic cutting ---- Run out table
LAYOUT OF THE LINE
