Industrial Rack Shelving Box Beam Cold Roll Former With 4 Box Interlock Machine Forming Stations
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-380 |
| Minimum Order Quantity | 1 set |
| Price | negotation |
| Packaging Details | water proof package |
| Delivery Time | 90 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Material | PPGI And GI | Rollers Material | Gcr15 |
|---|---|---|---|
| Hardness | 58~60 Degree | Cutting | Hydraulic With Servo Control |
| Color | To Be Customized | Thickness Of Input Sheet | 1.5mm ~2.0mm |
| High Light | cold roll forming equipment,highway guardrail forming machine |
||
Product Description

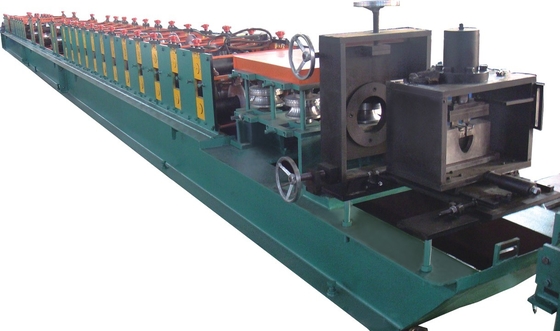

Industrial Shelf Rack Shelving Box Beam Roll Forming Machine with 4 Box Interlock Machine Forming Stations
Shelving Box Beam Roll Forming Machine is to form metal plates into required sections by continuous deformation of a group of rollers at room temperature, and is made two identical channel sections nested together to form a box beam.
A). Technical Patameters
- Product forming speed: 10-20m/min
- Roller material: 45# Steel
- Forming stations: 14 stations + 4 Box Interlock machine Stations
- Shaft diameter: 70mm
- Forming structure: Guiding column, chrome-plated
- Machine base frame: tube welding structure ,milling gauntry, punch holes automatic
- Transmission type: gear box
- Main Power: 11kw
- Bearing: HRB brand, needle roll bearing, taper bearing
- Thickness: 1.5-2.0MM
- Product Material: Galvanized Coil or Carbon Steel
B). Working Flow of Clip Lock Roll Forming Machine
Manual Decoiler ---- Feeding & Leveling ---- Roll Forming ---- Cutting ---- Run out table - Interlock Machine
C). Component
| 1 | Decoiler | 1 Unit | |
| 2 | Main Machine | Feeding Guide | 1 Unit |
| Leveling Device | 1 Unit | ||
| Roll Forming System | 1 Unit | ||
| Cutting Device | 1 Unit | ||
| 3 | PLC Control System | 1 Unit | |
| 4 | Hydraulic Station | 1 Unit | |
| 5 | Run out Table | 1 Unit | |
| 6 | Box Interlock Machine | 1 Unit | |
D). Applications
Box beam, Rack box beam, Shelf box beam, Rack Shelf box beam, Shelf rack box beams
Box beam is the most widely used beam, as the structure is the most strong compare with other type of beam.
E). Competitive Advantages
High Quality
Reasonable Price
Good after Service
Factory Visit
1 Year Warranty
More Than 10 Years Experience
Storage Rack Box Beam Roll Forming Machine has the advantages of high productivity, steady quality, power and labor saving in forming all kinds of complicated profiles. Our Company, Wuxi Techwell Machinery Co., Ltd, can also design all kinds of shaped steel profile forming equipment, punching molding and welding production line according to customers’ requests.
