| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE;ISO9001 |
| Model Number | LB-400-450-500 |
| Minimum Order Quantity | 1 set |
| Price | USD150000-USD180000 |
| Packaging Details | water proof |
| Delivery Time | 120 days |
Product Details
| Continuous Production | Three In One | ||
|---|---|---|---|
| High Light | metal plate embossing machine,sheet metal embossing machine |
||
Product Description

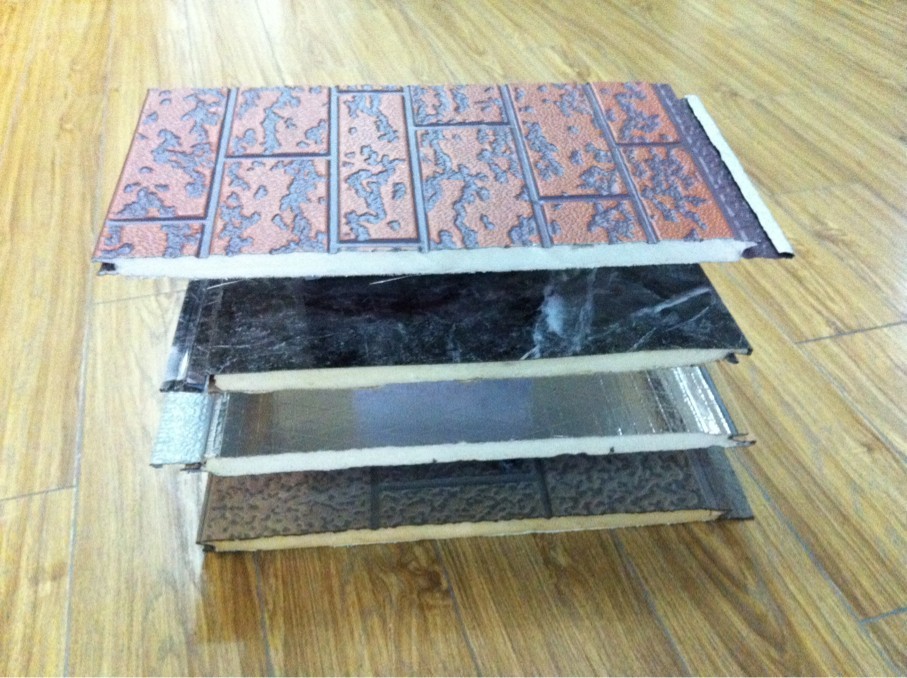

Decorative Wall And Ceiling Panel Metal Embossing Machine Continuous Line
Processing Principe
Un-coiler ---- Embossing(2 sets) -----roll forming(3 sets) ----Heating system----- PU foam injection ---- Aluminium foil & back film system ----- double belt --- PLC control system ---- flying saw cutting system ---- run out table.
Main Technical Data
50 meters total length
Main component of the line:
| NO. | name | quantity |
| Main roll former | ||
| 1 | Un-coiler (5 tons ) | 2 |
| 2 | Embossing machine with bottom guide for quick change system | 2 |
| 3 | Automatic feeder | 1 |

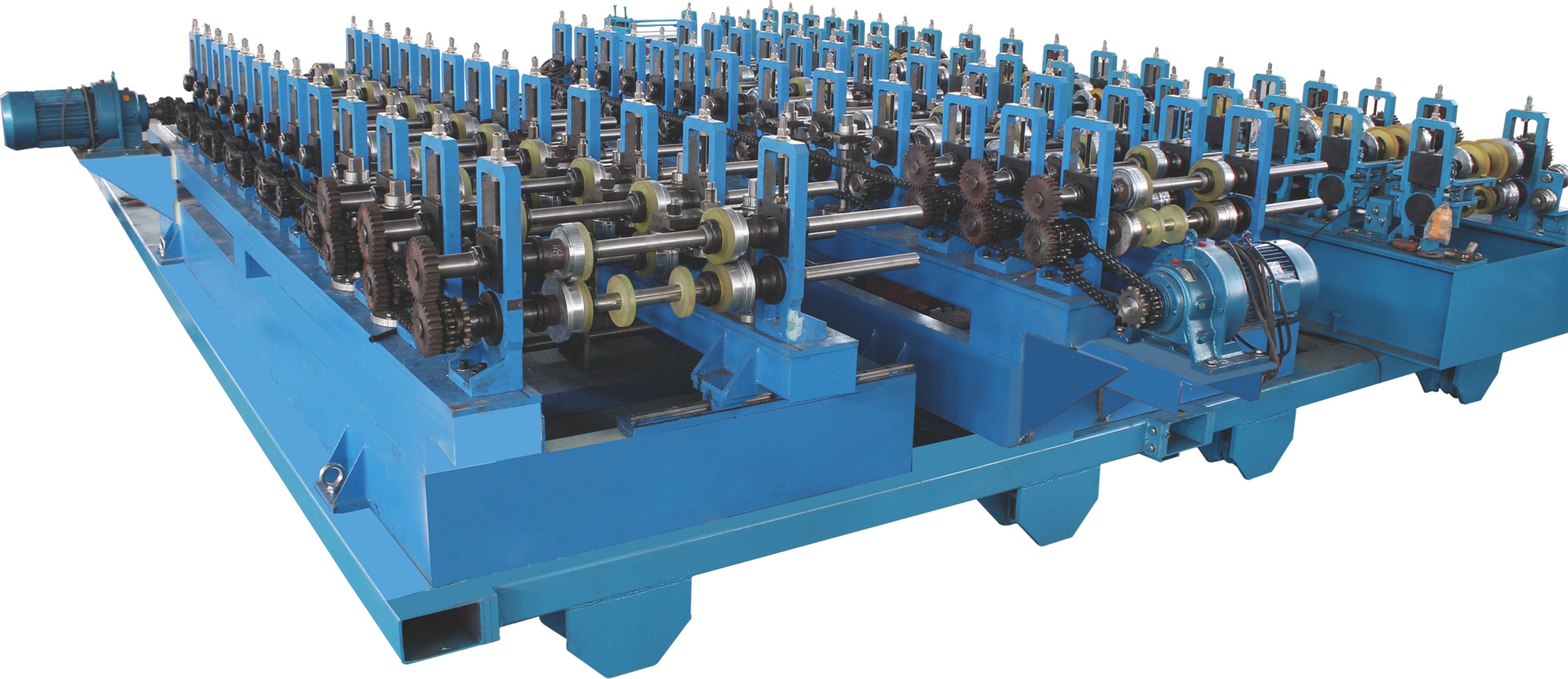

| 4 | roll former(adjustable style)with bottom guide for quick change system | 3 |
| 5 | Hydraulic system | 1 |
| 6 | Electrical control system | 1 |
| 7 | Electrical heating system | 1 |
| 2. LOW PRESSURE FOAM MACHINE | ||
| 1 | Low pressure continuous foam machine | 1 |
| 2 | Pursing output device | 1 |
| 3 | Electrical control system | 1 |
| NO. | Name | Quantity |
| 4. DOUBLE BELT SYSTEM | ||

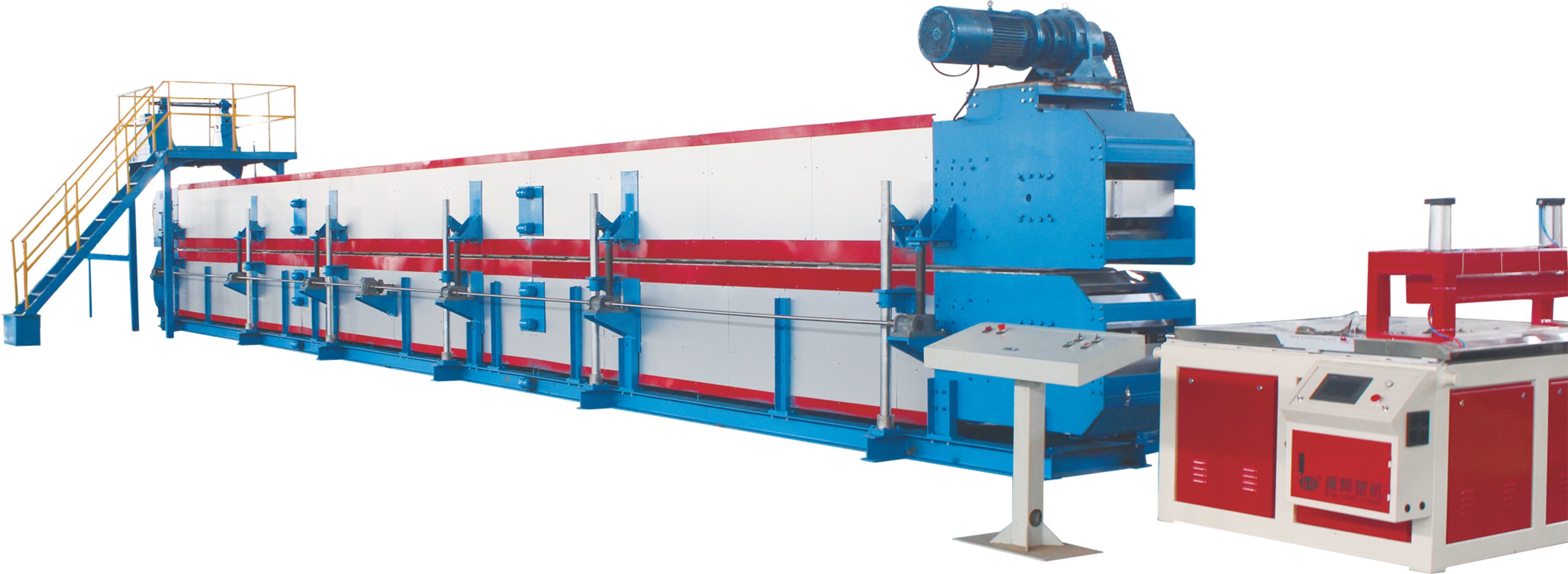

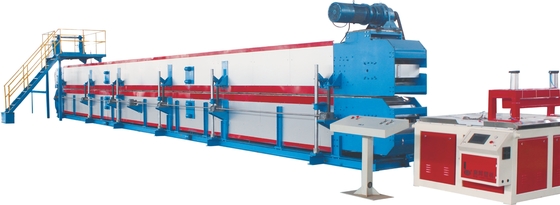

| 1 | Double belts system(24M) | 1 |
| 2 | Chain supporting system of two side | 1 |
| 3 | Side-chain system | 1 |
| 4 | Heating machine for double belts | 1 |
| 5 | Electrical control system | 1 |
| 6. CUTTING SYSTEM | ||
| 1 | Cutting saw blade | 1 |
| 2 | Conveyor with output table | 1 |
| 3 | Electrical control system | 1 |
| 7 | Coating machine | 4 |
| 8 | Rollers conveyor system: 6 meters | 1 set |
| Cutting and output table system: flying saw | Run out table (rollers): 6 m | Control system |
|
|
|
