Shutters Slat Door Frame Roll Forming Machine With PU Foam , Roll Forming Line

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-42-55-77
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details water proof package
Delivery Time 90 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Input Material Aluminum And Galvanized Steel Material Of Rollers SKD11 Or Cr15
Guarantee 5 Years Hardness HRC58~62 Degree
PLC Delta System With Servo Control Color To Be Customized
Forming Stations 37 Stations
High Light

door frame forming machine

,

roller shutter forming machine
Leave a Message
Product Description

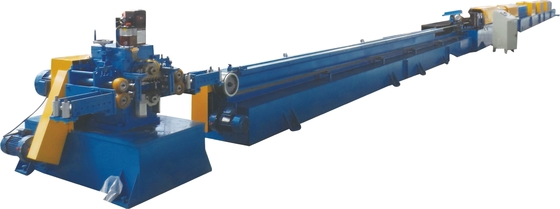

Rolling shutters slat forming machine for windows and doors system with PU foam



Windows & doors foam insulated shutters slat machine parameters:

Model (for windows): 37mm; 39mm; 42mm; 45mm (flat); 55mm

Model (for doors): 77mm; 90mm; 95mm; 98mm; 100mm

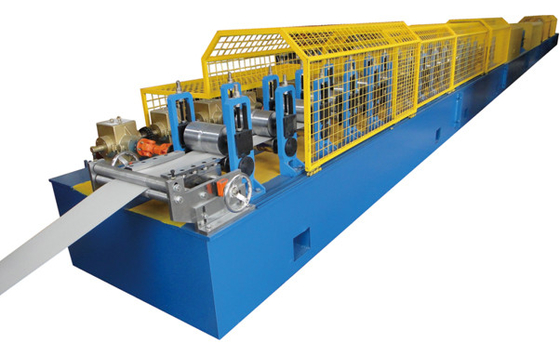

COMPLETE LINE LAYOUT

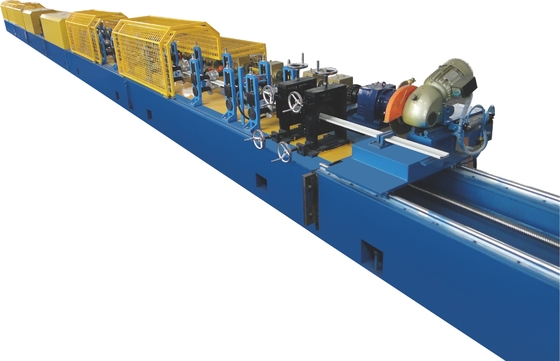

Double head un-coiler ----- feeder guide --- roll forming –Heating device-- --PU Injection -roll forming – keep heating box --- ---- Pneumatic punching hole ------PLC control --- Flying saw cutting unit --- 6 meters roller run out table

Shutters Slat Door Frame Roll Forming Machine With PU Foam , Roll Forming Line 0

COMPONENT OF COMPLETE LINE:

①Double head un-coiler: 2 tons capacity manual one/unit

②Main frame of forming machine one/unit

④Straighten part one / unit

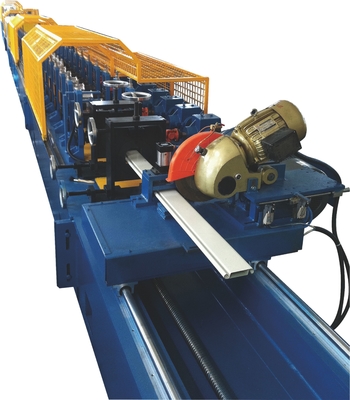

⑤ Pneumatic flying saw cutting machine one / unit

⑥ Simple roller stacker 6 meters one/unit

⑦ PLC system: One/unit

8. PU Foam injection machine: One/ set

Shutters Slat Door Frame Roll Forming Machine With PU Foam , Roll Forming Line 1

Specification for Foam machine:

1. Motor power: total 5.5 KW; 380V; 50/60HZ China brand

2. Mixing head with one spare is included

3. Mixing pump quantity: 8g/Second

4. Density: 70~80 Kg/m3

5. Mixing type: mechanical & automatic

6. Washing: Automatic

7. Tank volume: 50 KG / tank. Both Poly and ISO

8. Brand of Foam machine: GREAT WALL

Shutters Slat Door Frame Roll Forming Machine With PU Foam , Roll Forming Line 2Shutters Slat Door Frame Roll Forming Machine With PU Foam , Roll Forming Line 3Shutters Slat Door Frame Roll Forming Machine With PU Foam , Roll Forming Line 4Shutters Slat Door Frame Roll Forming Machine With PU Foam , Roll Forming Line 5
