Shutters Doors Double Layer Roll Forming Machine With 0.6~0.8mm Thickness Of PPGI

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-80-77
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 90 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Input Material PPGI And Galvanized Steel Material Of Rollers SKD11 Or Cr15
Hardness HRC58~62 Degree Guarantee 5 Years
Forming Stations 36 Stations PLC Delta System With Servo Control

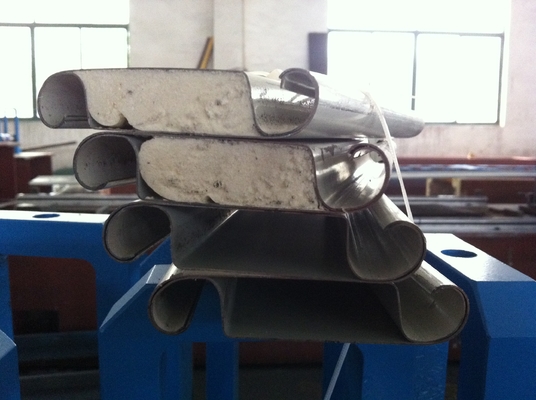

Double Sheet Input Double Sheet Forming Together Color To Be Customized
High Light

door frame forming machine

,

door frame making machine
Leave a Message
Product Description

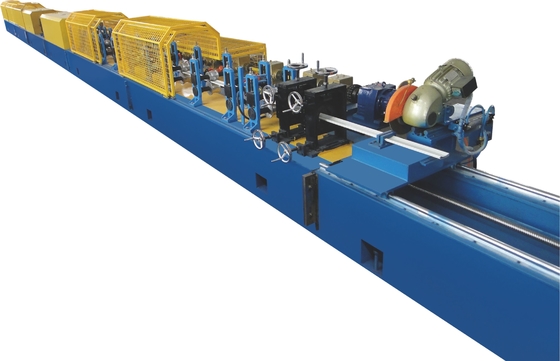

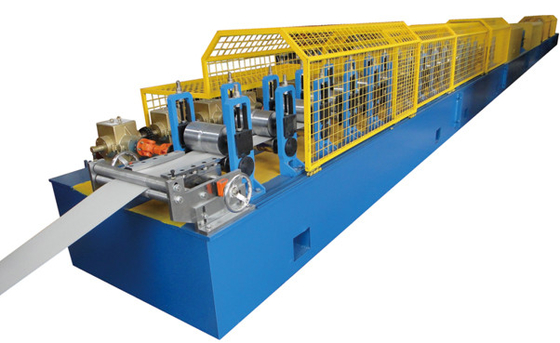

Double layer rolling shutters doors forming machine with 0.6~0.8mm thickness of PPGI



Main component of the line:

NO. name quantity
Main roll former
1 Un-coiler (3 tons ) Motor 2
2 Upper roll former 1
3 Down roll former 1
4 Combined roll former 1

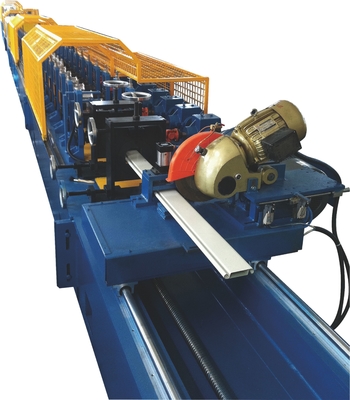

5 Pneumatic Fly Saw cutter with servo control system 1
6 PLC control cabinet 1
7 Output table with rollers(6meters) 1
8 Low pressure foam injection machine 1
9 Warm box 1



TECHNICAL DETAILS

Un-coiler

1. Capacity: 3 tons

2. Material: #45 steel

3. Motor drived: China brand 3 KW. 380V, 60HZ

4. Inner diameter: 410~ 580mm

Main roll former

1. Stations: 36

2. Rollers material: CR15; HRC 60. Chrome coated: 0.03mm. The Strength in Mpa: 70 TON,800 MPA

3. Shaft material: Diameter: 70mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA

4. Bearing brand: FAG Germany

5. Main Motor: 11KW, China top brand, 380V, 60HZ

6. H Beam 500 mm with precision welded

CHEMICAL COMPOSITION:

  C SI MN P S CR NI CU MO AI V B
Shaft 0.450 0.220 0.540 0.027 0.008 0.050 0.020 0.010 0.000 0.009 0.000 0
Rollers
Cutter 1.57 0.34 0.38 0.022 0.010 11.10 0.18 0.14 0.48
Cut knife 2.04 0.23 0.23 0.020 0.010 11.66 0.12 0.06

Foam injection machine

Shutters Doors Double Layer Roll Forming Machine With 0.6~0.8mm Thickness Of PPGI 0

1. Motor power: total 5.5 KW; 380V; 50/60HZ

2. Mixing head with one spare is included

3. Mixing pump quantity: 8g/Second

4. Density: 70 ~ 80 Kg/M³

5. Mixing type: mechanical & automatic

6. Washing: Automatic

7. Tank volume: 50 KG / tank. Both Poly and ISO

8. Brand of Foam machine: GREAT WALL.

PLC Control Cabinet:

1. Touch screen brand: DELTA

2. PLC brand: DELTA

3. Inverter brand: DELTA

4. Main components for low pressure electricity: Schneider Germany

Output table

1. Length: 6 meters

2. Drive type: Rollers

CUTTING PLATFORM

1. Cutting type: Pneumatic Fly Saw cutter with servo control system

2. Motor brand: China top motor 4KW; 380V; 50/60HZ



Shutters Doors Double Layer Roll Forming Machine With 0.6~0.8mm Thickness Of PPGI 1



Shutters Doors Double Layer Roll Forming Machine With 0.6~0.8mm Thickness Of PPGI 2Shutters Doors Double Layer Roll Forming Machine With 0.6~0.8mm Thickness Of PPGI 3Shutters Doors Double Layer Roll Forming Machine With 0.6~0.8mm Thickness Of PPGI 4
