Aluminum Rolling Shutters Door Frame Making Machine With PU Injection Foam System
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-77 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 90 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Production Capacity | 15m/min | Input Material | Aluminum And Galvanized Steel |
|---|---|---|---|
| Material Of Rollers | SKD11 Or Cr15 | Hardness | HRC58~62 Degree |
| Guarantee | 5 Years | PLC | Delta System With Servo Control |
| Color | To Be Customized | ||
| High Light | door frame forming machine,door frame making machine |
||
Product Description

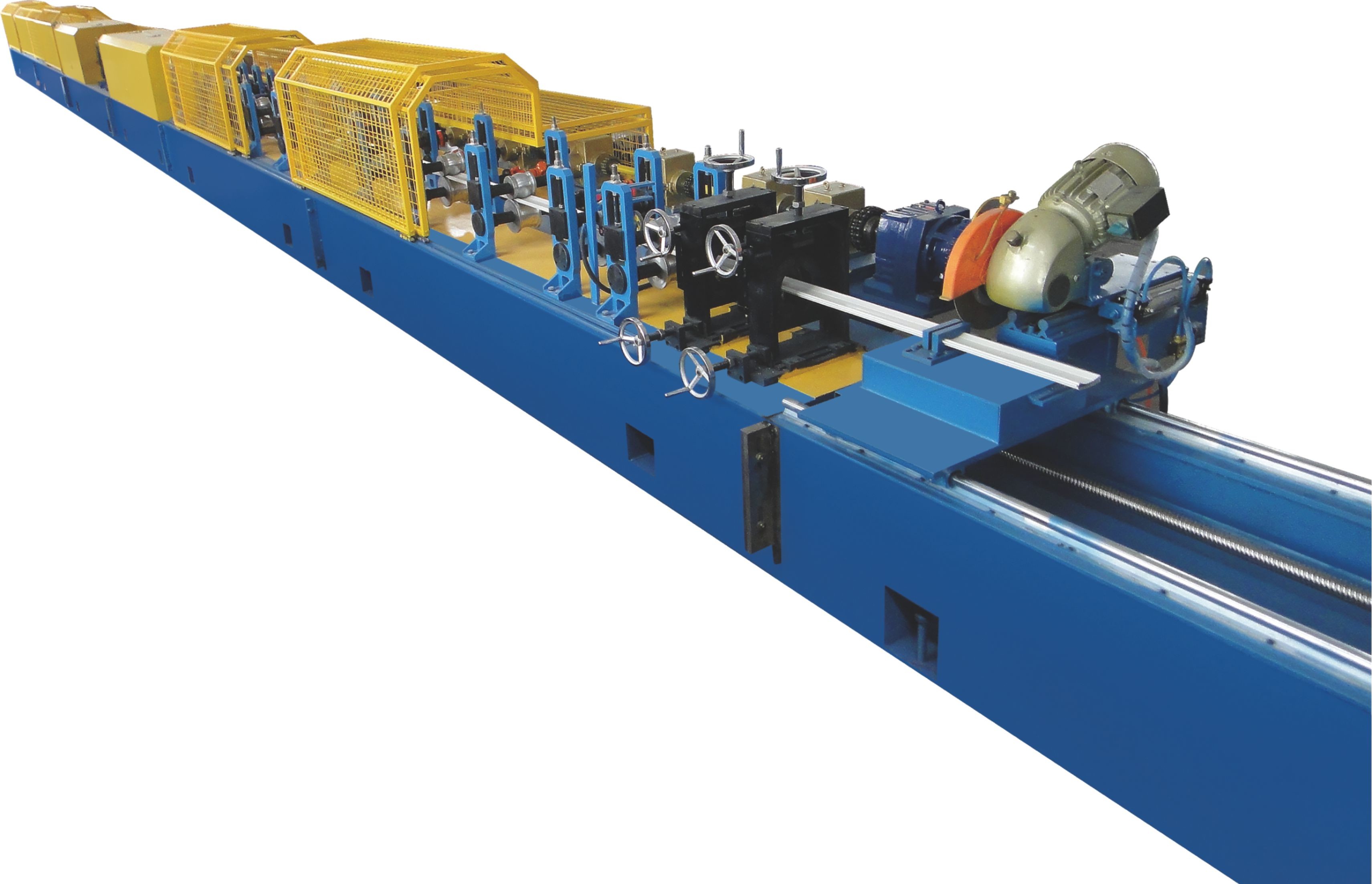

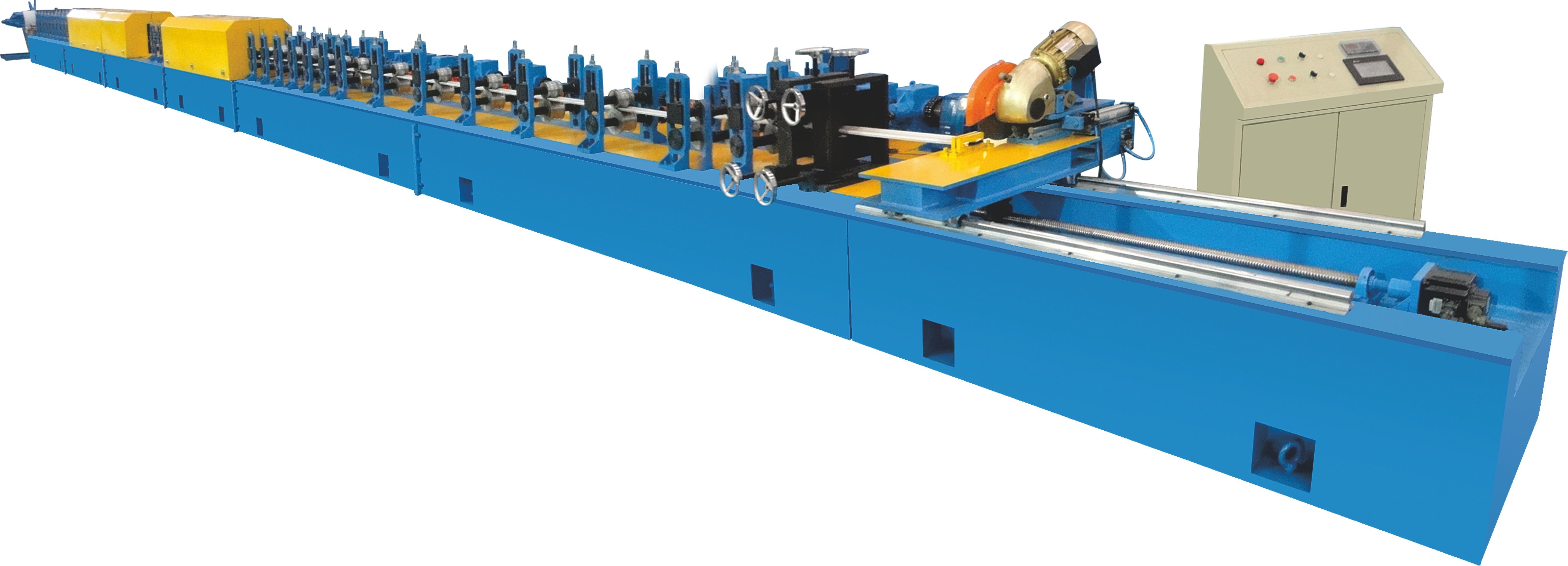

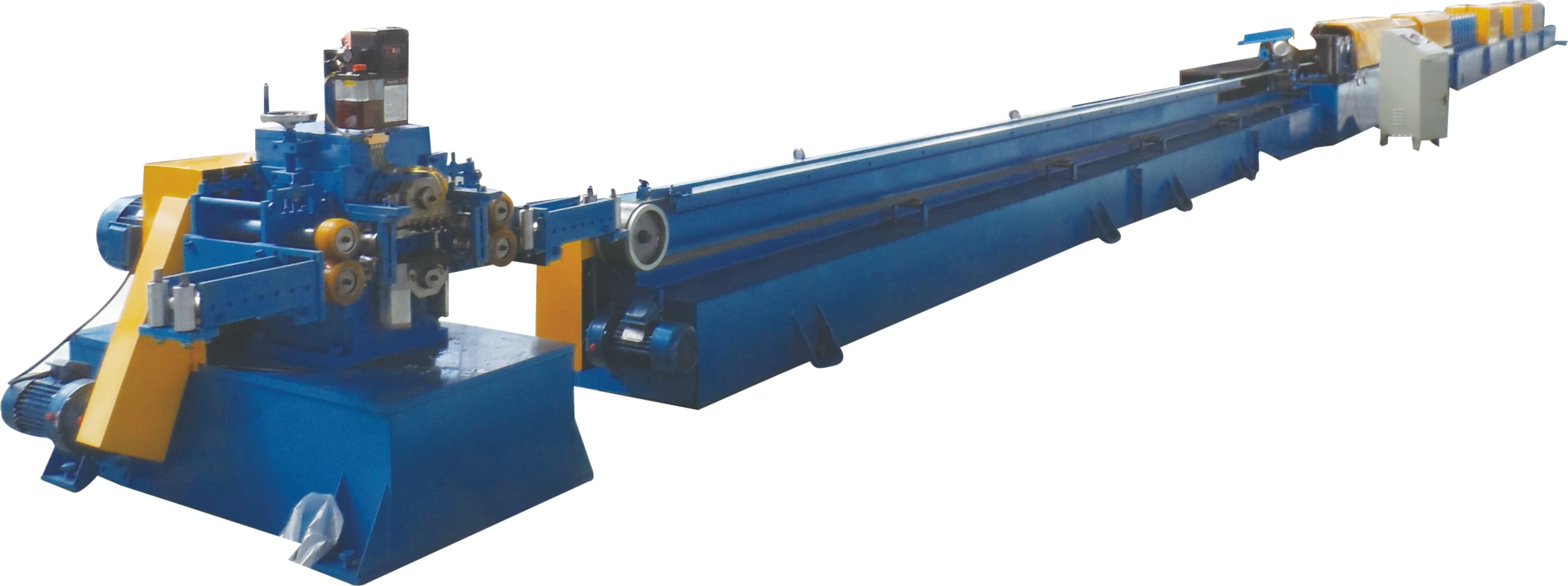

Aluminum rolling shutters forming machine with PU injection foam system
Windows & doors foam insulated shutters slat machine parameters:
Model (for windows): 37mm; 39mm; 42mm; 45mm (flat);55 mm
Model (for doors): 77mm; 90mm; 95mm; 98mm; 100mm
|
COMPLETE LINE LAYOUT Double head un-coiler ----- feeder guide --- roll forming –Heating device-- --PU Injection -roll forming – keep heating box --- ---- Pneumatic punching hole ------PLC control --- Flying saw cutting unit --- 6 meters roller run out table
|
COMPONENT OF COMPLETE LINE:
①Double head un-coiler: 2 tons capacity manual one/unit
②Main frame of forming machine one/unit
④Straighten part one / unit

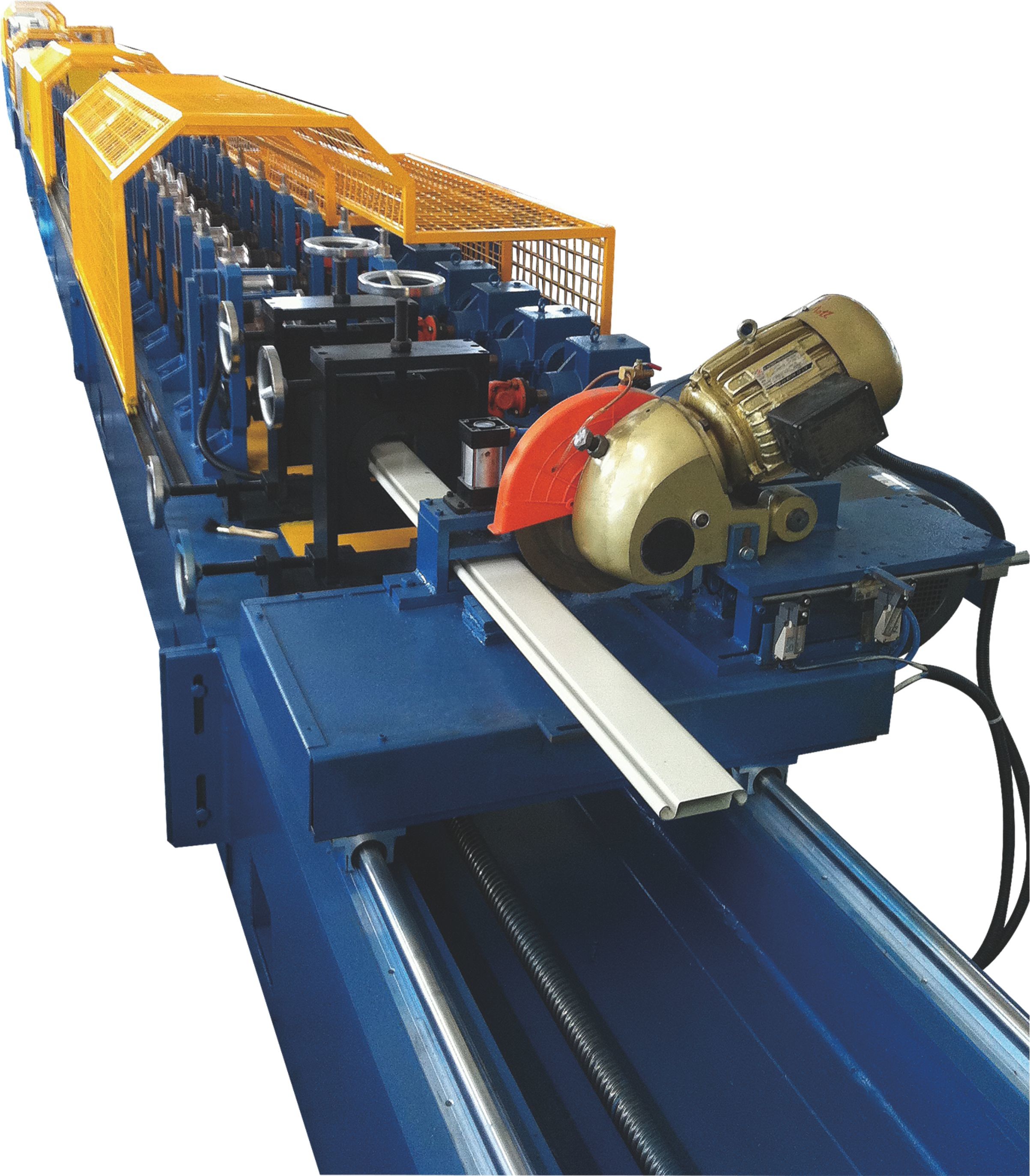

⑤ Pneumatic flying saw cutting machine one / unit
⑥ Simple roller stacker 6 meters one/unit
⑦ PLC system: One/unit
8. PU Foam injection machine: One/ set
Specification for Foam machine:
1. Motor power: total 5.5 KW; 380V; 50/60HZ China brand
2. Mixing head with one spare is included
3. Mixing pump quantity: 8g/Second
4. Density: 70~80 Kg/m3
5. Mixing type: mechanical & automatic
6. Washing: Automatic
7. Tank volume: 50 KG / tank. Both Poly and ISO
8. Brand of Foam machine: GREAT WALL.
