Thickness 0.3 - 0.7mm Roofing Sheet Making Machine Working Speed 0 - 20 M / Min
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-1000-1220 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 60 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Material Of Rollers | #45 Carbon Steel | Material Of Sheet | PPGI And Galvanized Steel |
|---|---|---|---|
| Guarantee | 5 Years | Color | To Be Customized |
| Motor Power | 7.5KW | Cutting | Hydraulic |
| High Light | roof tile making machine,roof sheet forming machine |
||
Product Description
Material Thickness 0.3-0.7mm Roof Roll Forming Machine With Working Speed 0-20m/min
Main Specification
- Material thickness: 0.3-0.8mm
- Material width: depend on customer’s requirement
- Decoiler Type: manual or automatical type ( depend on customer’s requirement )
- Weight Capacity Of Decoiler: 5 Ton
- Main Motor Power: 5.5 Kw
- Hydraulic Motor Power: 3 Kw
- Forming Station: 13-20 ( depend on profile drawing )
- Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
- Main Axis Material: High grade 45#, quenched and heat treatment.
- Axis Diameter: ¢ 75mm
- Working Speed: 0-15 m/min
- Transporting Type: Chain Transmission
- Heat Treatment of Cutting Blade: HRC 50-60
- Type of Cutting: Hydraulic cutting
- Material Of Cutting Blade: C r 12
- Heat Treatment of Cutting Blade: HRC 50-60
Product Description
Roofing sheet roll forming machines are extensively used in building steel-structure large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, hotels, villas, residences and different kinds of greenhouses.
Main Components

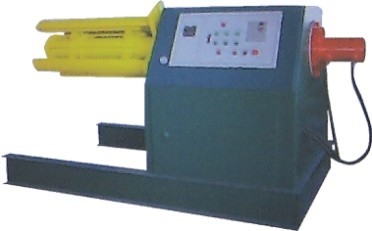

Decoiler ---------------------------------------------- 1 Unit
Feeding guide -------------------------------------- 1 Unit

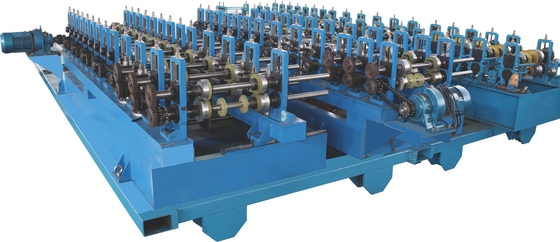

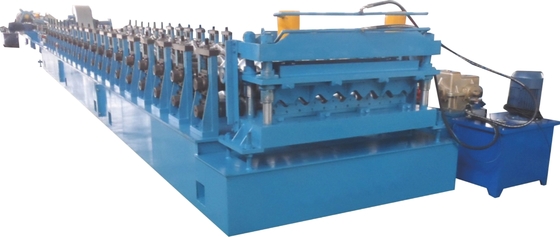

main roll forming machine ------------------------ 1 Unit

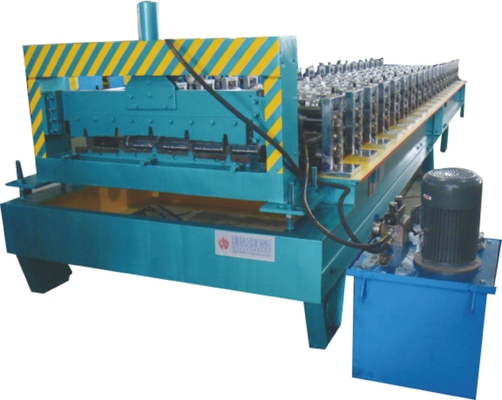

Hydraulic cutting device -------------------------- 1 Unit
Hydraulic Station ----------------------------------- 1 Unit
PLC computer control ----------------------------- 1 Unit
Output table ---------------------------------------- 1 Unit
Work Flowing
Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table
Application
Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
Advantages
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
