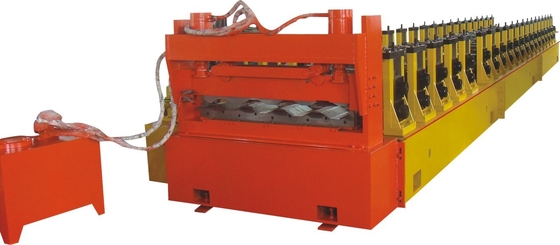

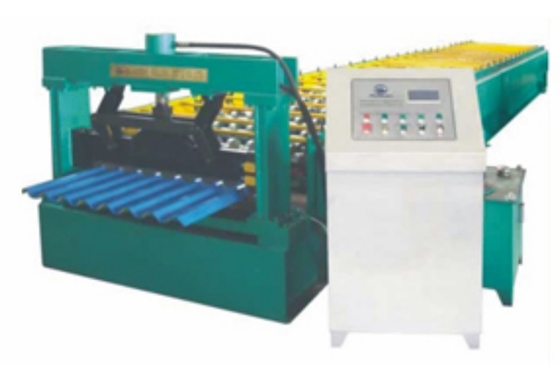

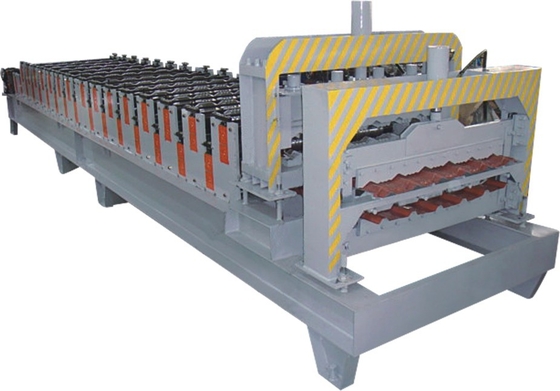

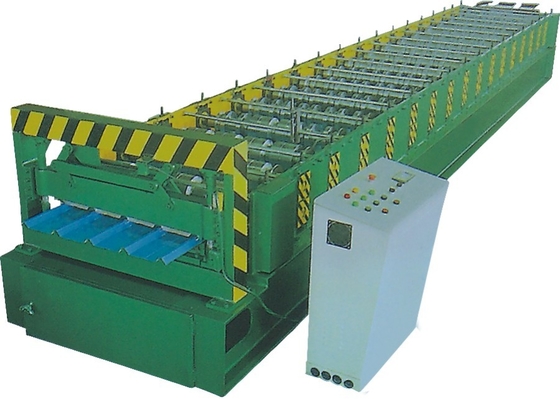

Metal Roof Panel Roll Forming Machine with 6m Auto Stacker LB30-200-1000

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-1000-1250
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details water proof package
Delivery Time 60 days
Payment Terms L/C, D/P, T/T
Product Details
Material PPGI And Galvanized Steel Input Sheet Thickness 0.3~0.8mm
Guarantee 5 Years Material Of Rollers #45
Hardness HRC58~62 Degree PLC Delta
High Light

roof tile making machine

,

roof sheet forming machine
Leave a Message
Product Description

Metal Roof Panel Roof Sheet Roll Forming Machine with 6m Auto Stacker LB30-200-1000

Metal Roof Panel Roll Forming Machine



Roof Panel Forming Machine Technical Data
Suitable Material Color Steel Coil, PPGI
Thickness 0.3-0.7mm
Yield Strength 300-550Mpa
Coil width 1220mm
Forming Roller Stations 22-24 forming stations
Diameter of Forming Shaft 75mm
Forming Speed 0-35m/min
Forming Roller Material 45# Steel, coated with hard chrome 0.05mm
Cutter Material CR12Mov Mold steel, with quench treatment
Controlling system PLC with Touch screen & Inverter
Main Motor Power 11KW
Servo Motor 2.2KW
Cutting Power 5.5KW
Machine weight 11000Kgs





































Roof Profile Drawing



Metal Roof Panel Roof Sheet Roll Forming Machine with 6m Auto Stacker TW30-200-1000



Finished Roof Profile Sheet



Metal Roof Panel Roof Sheet Roll Forming Machine with 6m Auto Stacker TW30-200-1000



Metal Roof Panel Roll Forming Machine with 6m Auto Stacker LB30-200-1000 2

Main Components



Hydraulic Decoiler 1 Unit
Pinch Guiding Device 1 Unit
Roll Forming System 1 Unit
Flying Cutting System 1 Unit
PLC Control Box 1 Unit
Hydraulic Station 1 Unit
6m Auto Stacker

1 Unit
