High Speed Roof Panel Roll Forming Machine With Chain Drive PLC Control
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-914-1220 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 60 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 5 per month |
Product Details
| Material | PPGI And Galvanized Steel | Guarantee | 5 Years |
|---|---|---|---|
| Material Of Rollers | #45 | Hardness | HRC58~62 Degree |
| Input Sheet Thickness | 0.3~0.8mm | Automatic | Fully Automatic |
| Hydraulic Decoiler | 5 Tons Capacity | Color | To Be Customized |
| High Light | sheet metal roll forming machines,roof tile making machine |
||
Product Description

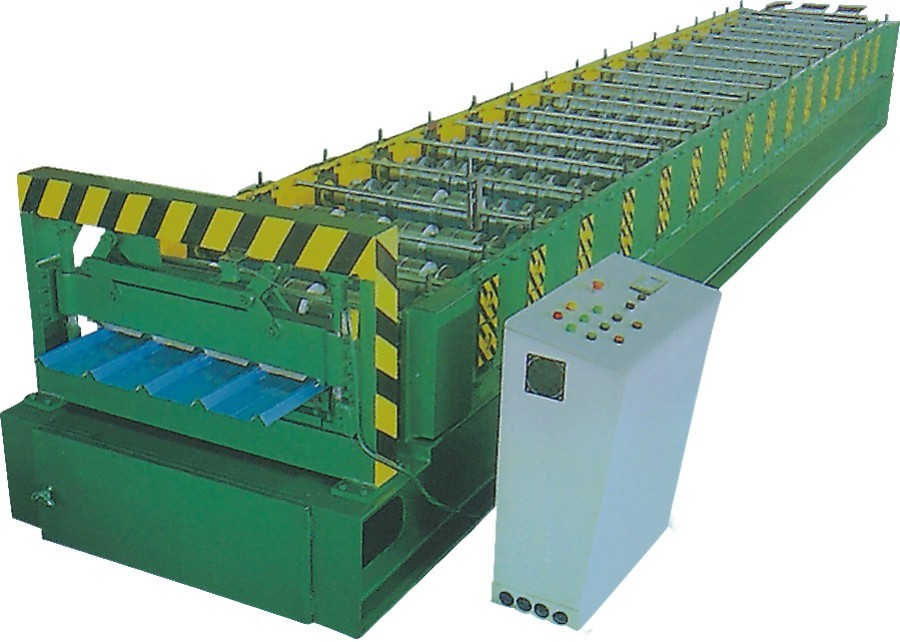

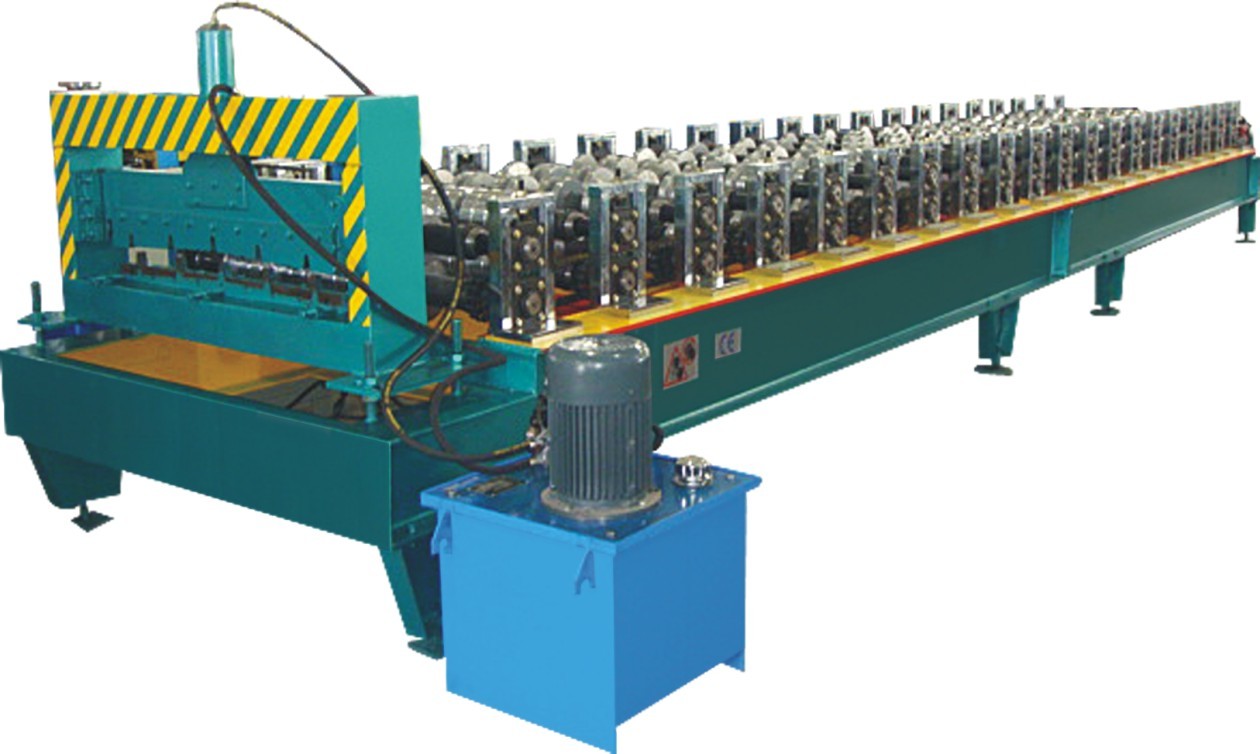

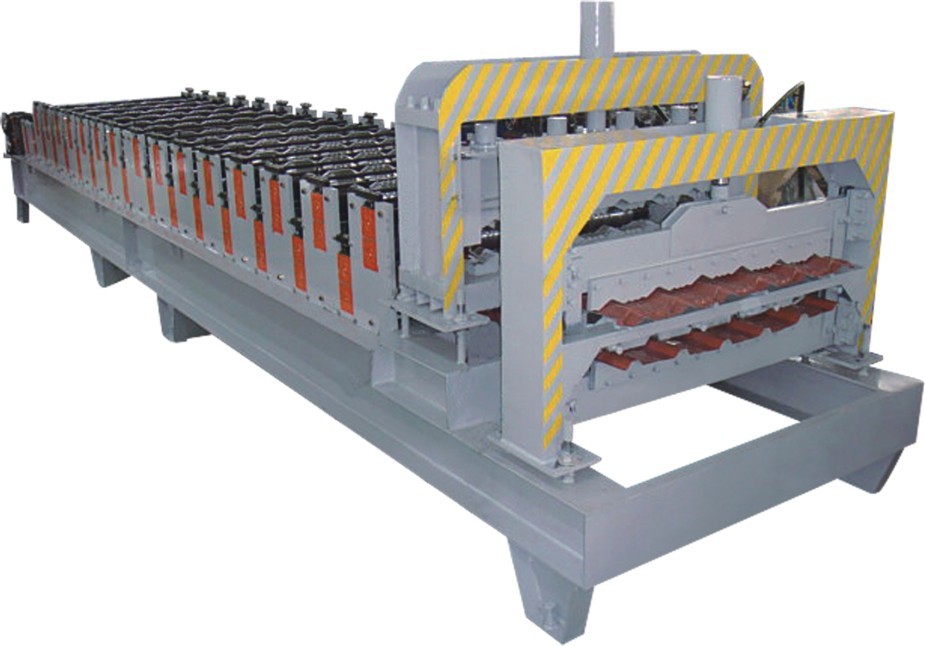

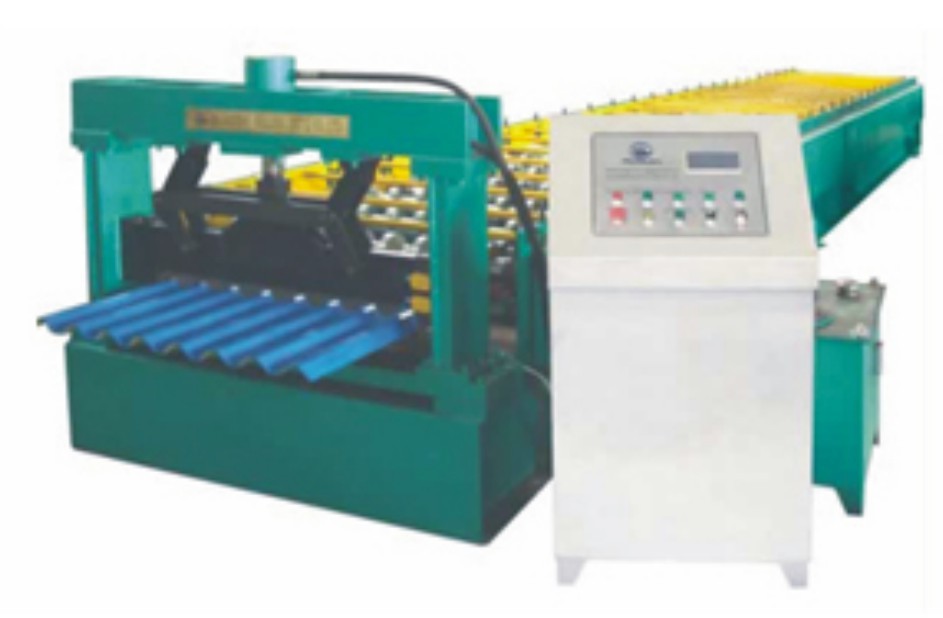

High Speed Roof Panel Roll Forming Machine With Chain Drive PLC Control
Main Specification
- Material Thickness: 0.3-0.7mm
- Material: Color Steel Coil, PPGI, Yield Strength 350Mpa
- Coil Width: 1250mm
- Forming Roller Stations: 22-24 forming stations
- Diameter of Forming Shaft: 75mm
- Forming Speed: 0-20m/min
- Forming Roller Material: 45# Steel, coated with hard chrome 0.05mm
- Cutter Material: CR12Mov Mold steel, with quench treatment
- Controlling System: PLC with Touch screen & Inverter
- Main Motor Power: 7.5KW
- Cutting Power: 3KW
- Machine Weight: 5500Kgs
Main Components
- Decoiler ---------------------------------------------- 1 Unit
- Feeding guide -------------------------------------- 1 Unit
- main roll forming machine ------------------------ 1 Unit
- Hydraulic cutting device -------------------------- 1 Unit
- Hydraulic Station ----------------------------------- 1 Unit
- PLC computer control ----------------------------- 1 Unit
- Output table ----------------------------------------- 1 Unit
Work Flowing
Decoiler ---> Fedding Guide ---> Roll Forming ---> Cut-to-length ---> Run out table
Application
Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding
Reference Drawing
Advantages
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
