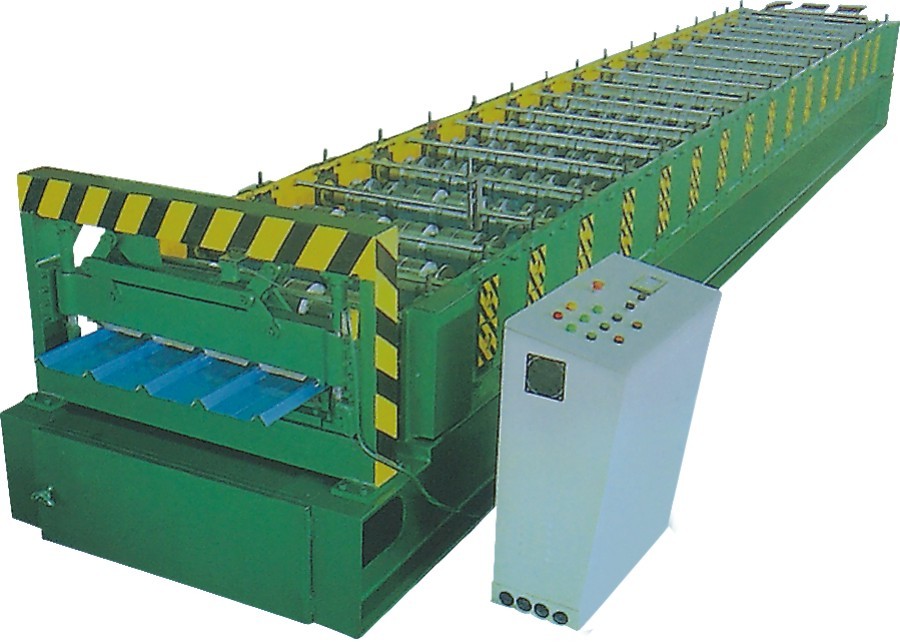

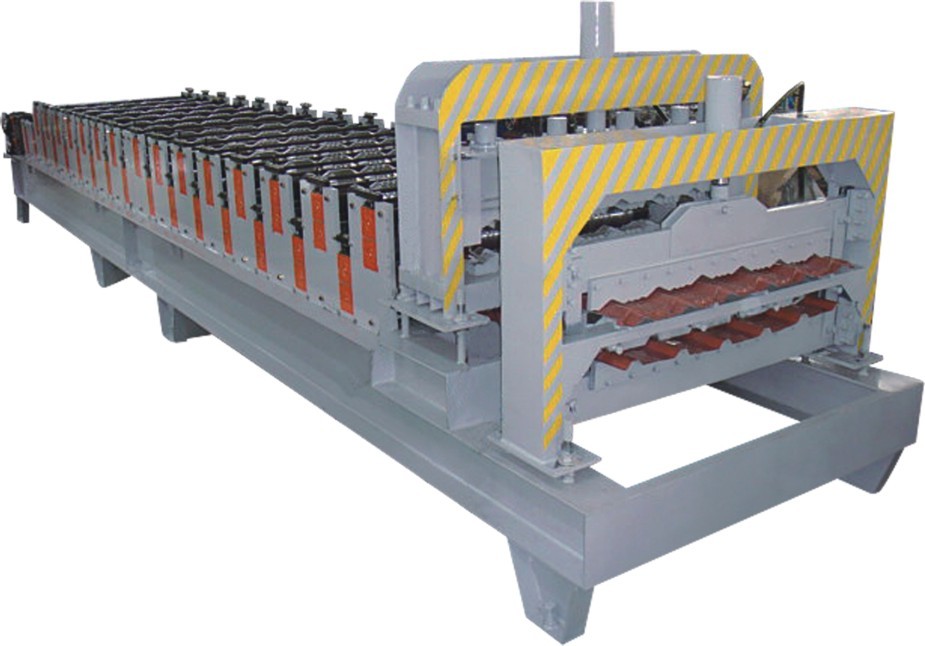

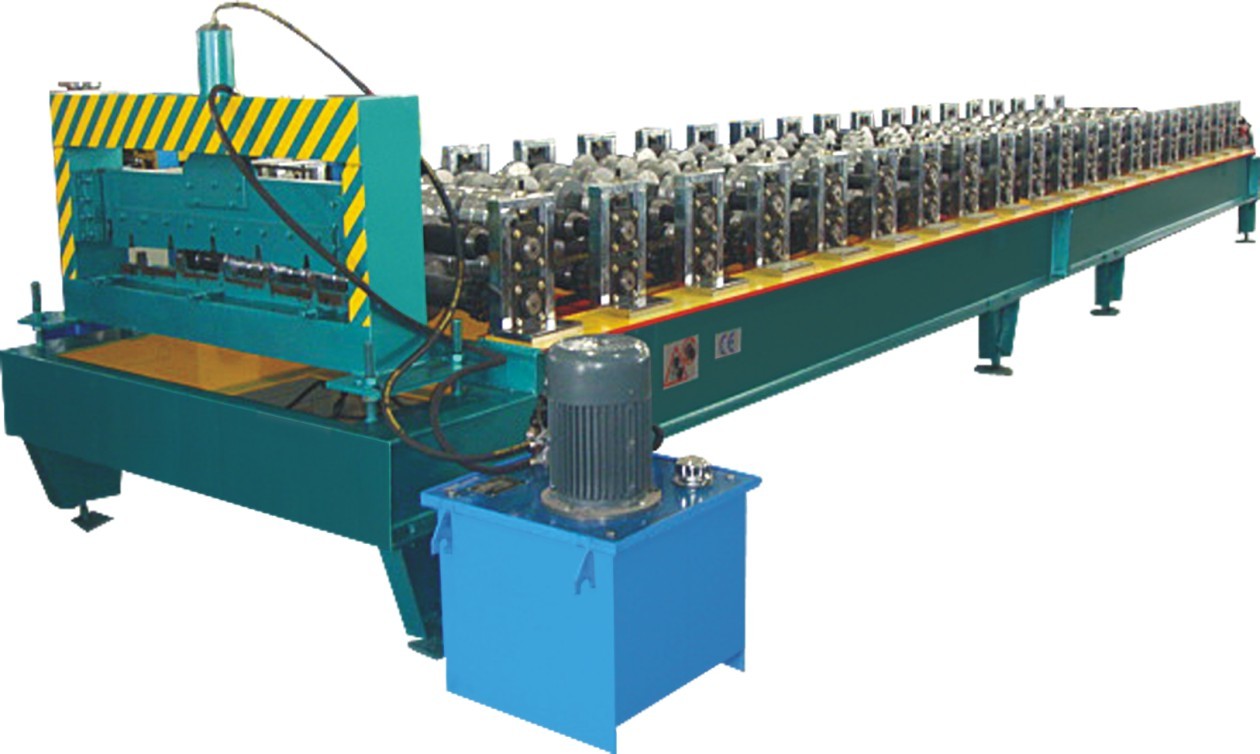

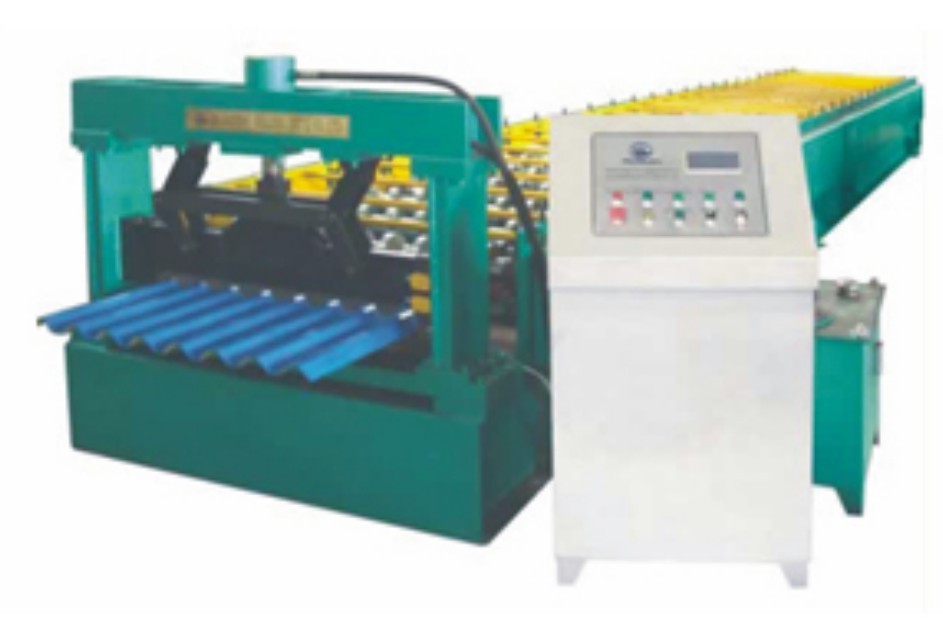

PLC Frequency Control System Metal Roofing Forming Machine Double Layer
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-1000-1250-914 |
| Minimum Order Quantity | 1 set |
| Price | negotation |
| Packaging Details | water proof package |
| Delivery Time | 90 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Rollers Material | Gcr15 And #45 | Hardness | 55~58 Degree |
|---|---|---|---|
| Motor Power | 5.5KW;380V;50HZ; 3 PHASE | Working Speed | 10~20m/min |
| Color | To Be Customized | ||
| High Light | metal roofing forming machine,metal roll forming machines |
||
Product Description
Main Specifications of Double Layer Roofing Roll Forming Machine
- Material thickness: 0.3-0.8mm
- Material width: depend on customer’s requirement
- Working Speed: 0-20m/min
- Shaft Diameter: 75mm
- Roller Material: High grade 45# steel, with surface coated hard chrome
- Decoiler Type: manual or automatical type ( depend on customer’s requirement )
- Weight Capacity Of Decoiler: 5 Ton
- Cutting: Hydraulic cutting
- Main Motor Power: 7.5 Kw
- Hydraulic Motor Power: 3 Kw
- Forming Station: approx 18 & 18 ( depend on profile drawing )
- Electrical Control: PLC Frequency Control System with touch screen
- PLC: PANASONIC Brand
- Encoder: OMRON Brand
- Transducer: PANASONIC Brand
- Machine Weight: about 8.5 Ton
Work Flowing
Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table
Main Component of Double Layer Forming Machine
- Decoiler ----------------------------------------------- 1 Unit
- Feeding guide ---------------------------------------- 1 Unit
- main roll forming machine ---------------------------1 Unit
- Hydraulic cutting device ------------------------------1 Unit
- Hydraulic Station ------------------------------------- -1 Unit
- PLC computer control -------------------------------- 1 Unit
- Output table -------------------------------------------- 1 Unit
Application
Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
Our Advantage
- High Quality
- Reliable
- Durable
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
Double Layer Reference Drawing
