Windows And Steel Door Frame Roll Forming Machine Double Head Uncoiler
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-77-90 |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | water proof package |
| Delivery Time | 90 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Input Material | Galvanized Steel And Aluminum | Production Capacity | 15m/min |
|---|---|---|---|
| Production Length | 35m Total | Material Of Rollers | SKD11 Or Cr15 |
| Hardness | HRC58~62 Degree | PLC | Delta Brand With Servo System |
| Guarantee | 5 Years | After Sales Service | Send Technician Go To Buyer's Factory To Fix It After Sales |
| Forming Stations | 37 Stations | ||
| High Light | roller shutter forming machine,door frame making machine |
||
Product Description

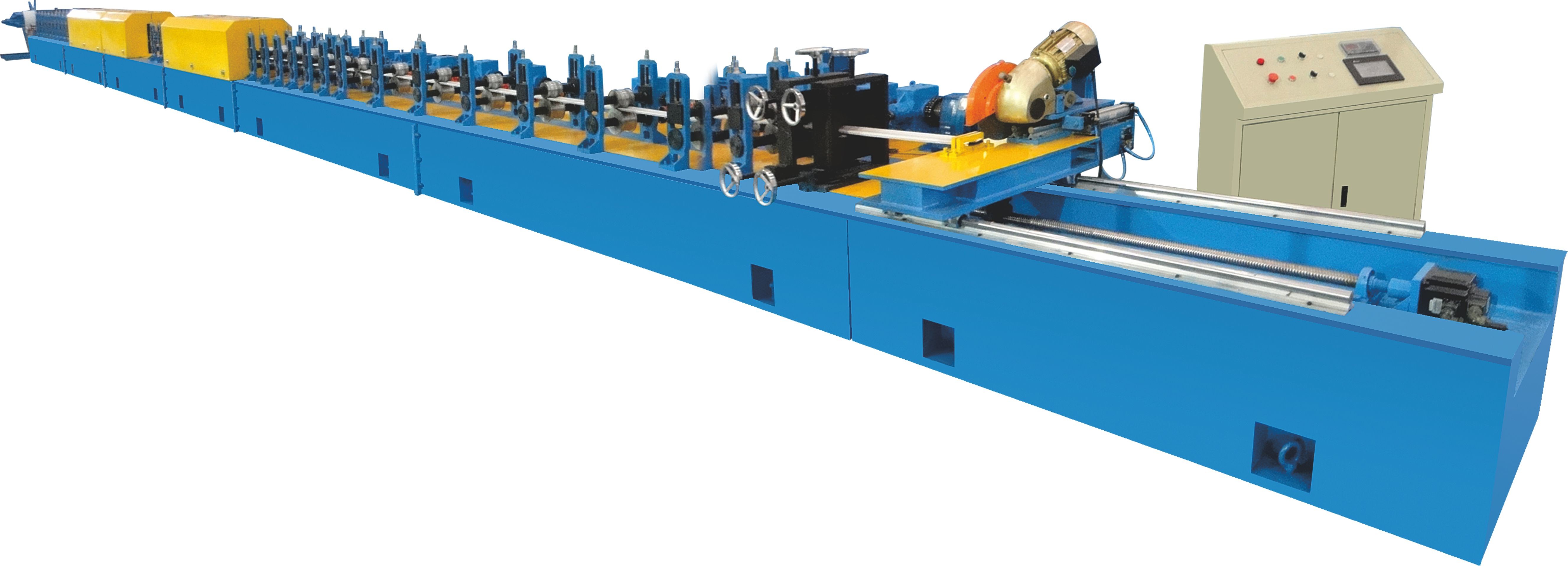

shutters slat forming machine for windows and doors
Windows & doors foam insulated shutters slat machine parameters:
Model (for windows): 37mm; 39mm; 42mm; 45mm (flat);55 mm
Model (for doors): 77mm; 90mm; 95mm; 98mm; 100mm
|

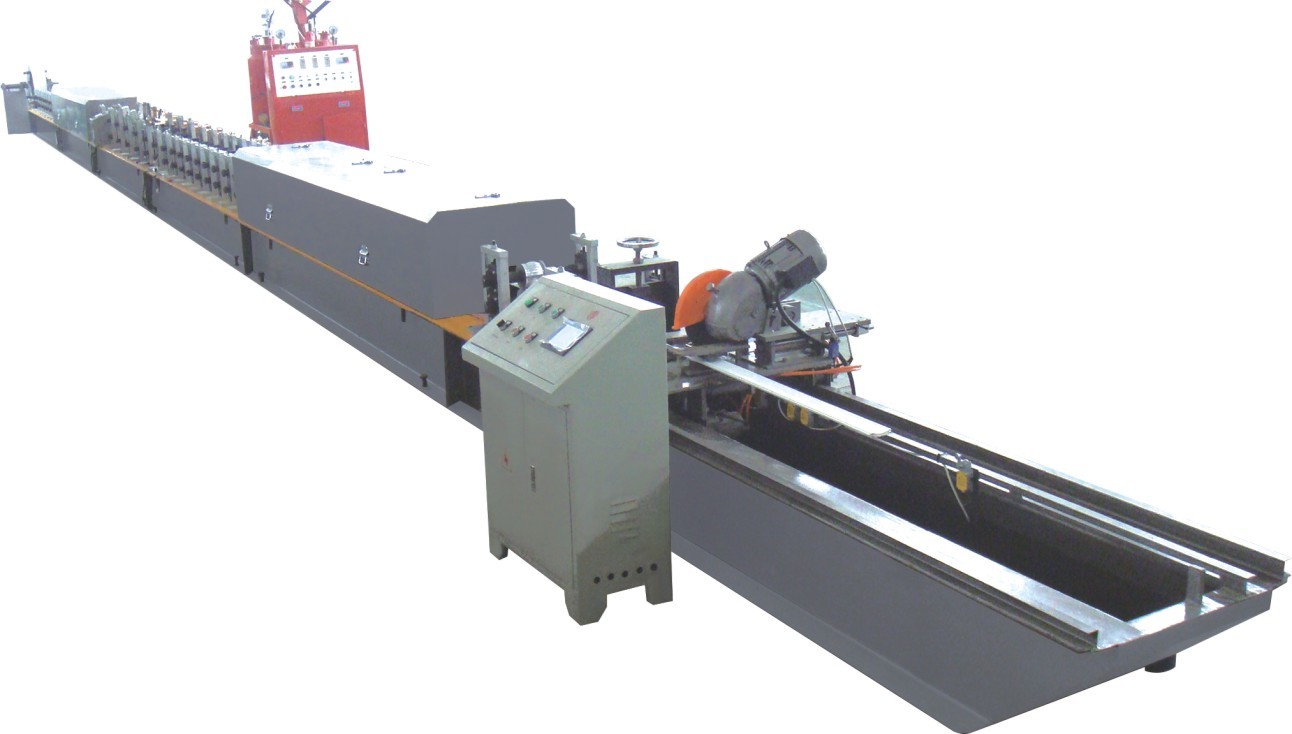

COMPLETE LINE LAYOUT Double head un-coiler ----- feeder guide --- roll forming –Heating device-- --PU Injection -roll forming – keep heating box --- ---- Pneumatic punching hole ------PLC control --- Flying saw cutting unit --- 6 meters roller run out table
|
COMPONENT OF COMPLETE LINE:
① Double head un-coiler: 2 tons capacity manual one/unit

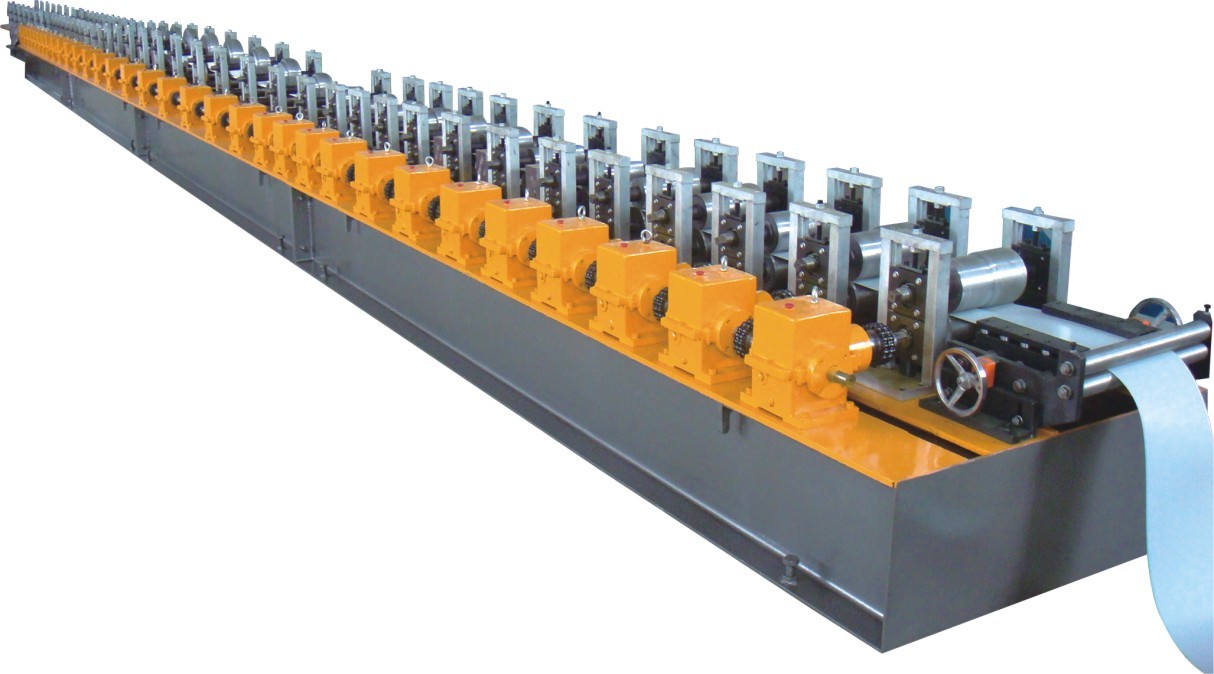

②Main frame of forming machine one/unit
④Straighten part one / unit
⑤ Pneumatic flying saw cutting machine one / unit
⑥ Simple roller stacker 6 meters one/unit
⑦ PLC system: One/unit

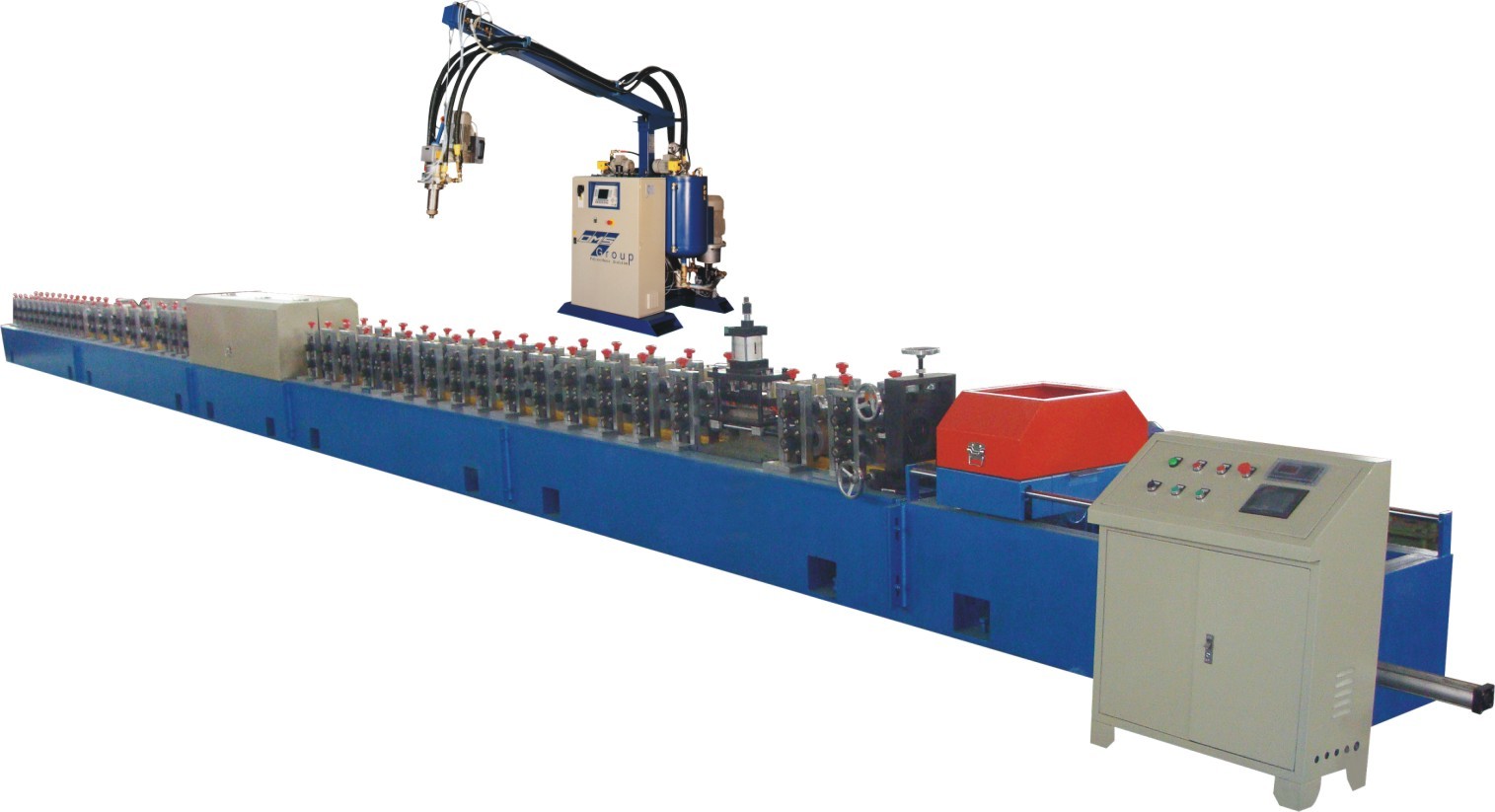

8. PU Foam injection machine: One/ set
Specification for Foam machine:
1. Motor power: total 5.5 KW; 380V; 50/60HZ China brand
2. Mixing head with one spare is included
3. Mixing pump quantity: 8g/Second
4. Density: 70~80 Kg/m3
5. Mixing type: mechanical & automatic
6. Washing: Automatic
7. Tank volume: 50 KG / tank. Both Poly and ISO
8. Brand of Foam machine: GREAT WALL
Windows & doors foam insulated shutters slat machine parameters
