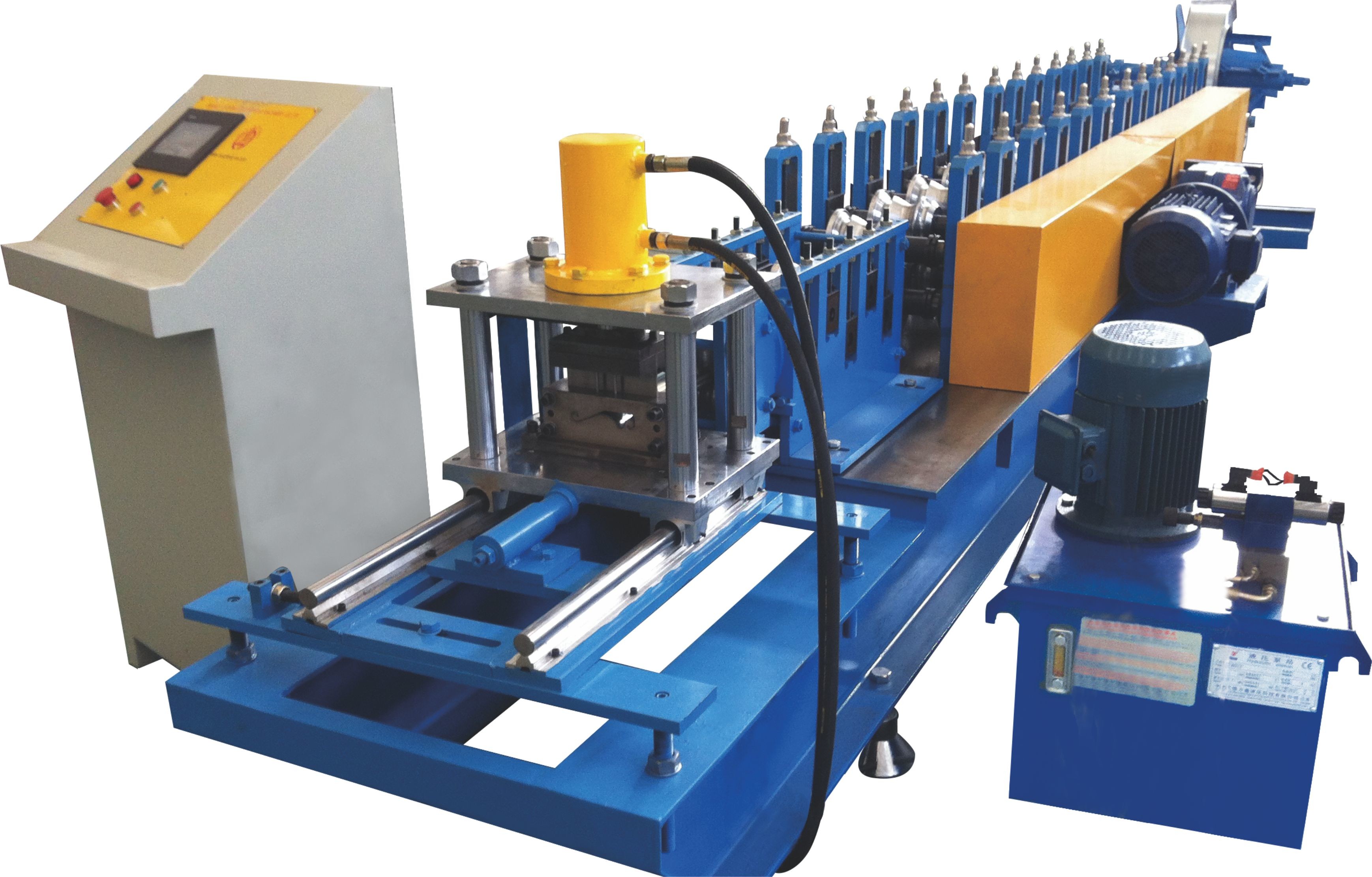

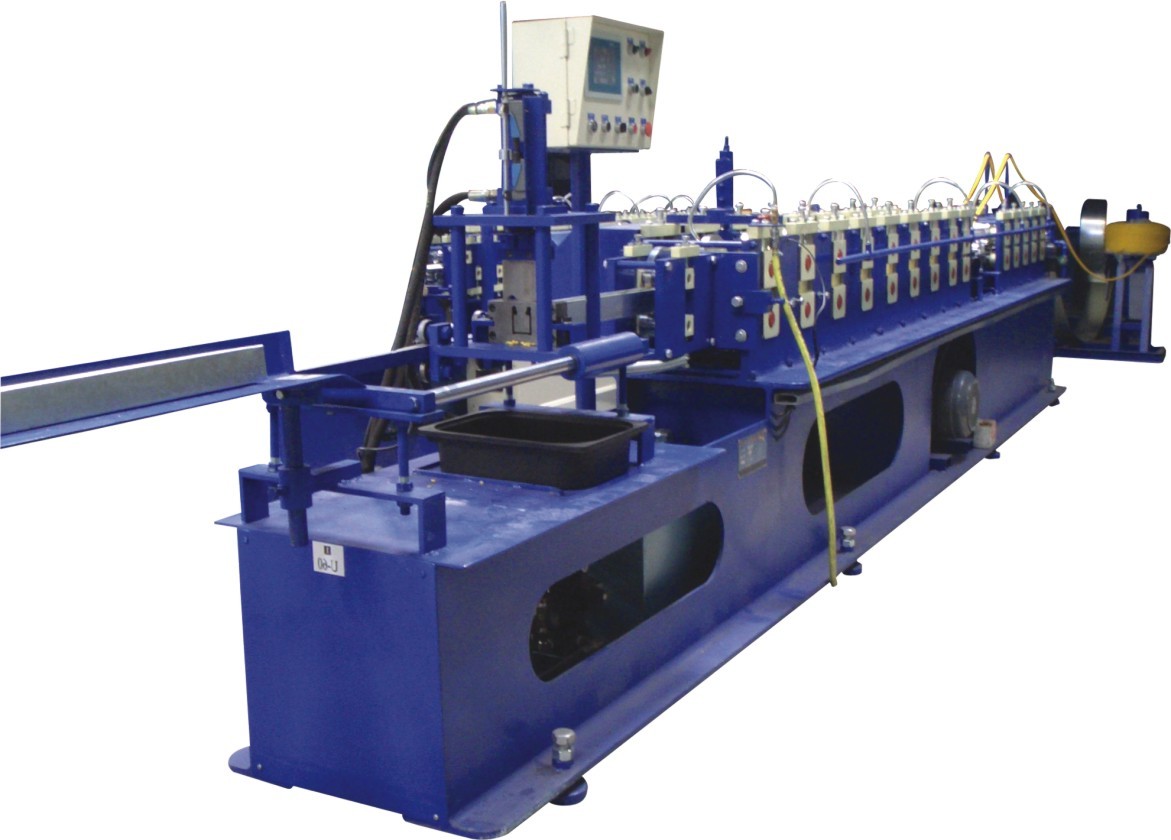

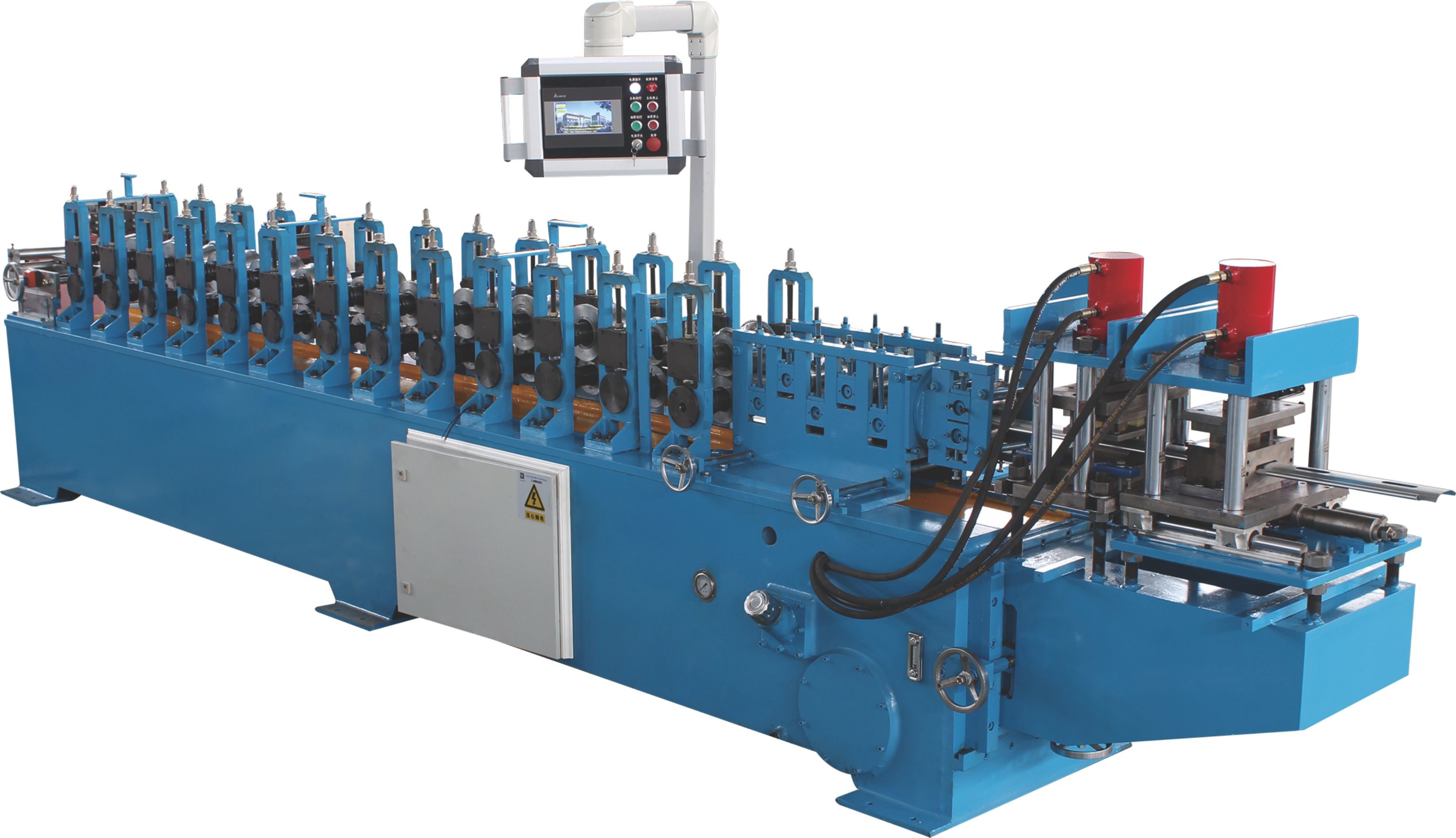

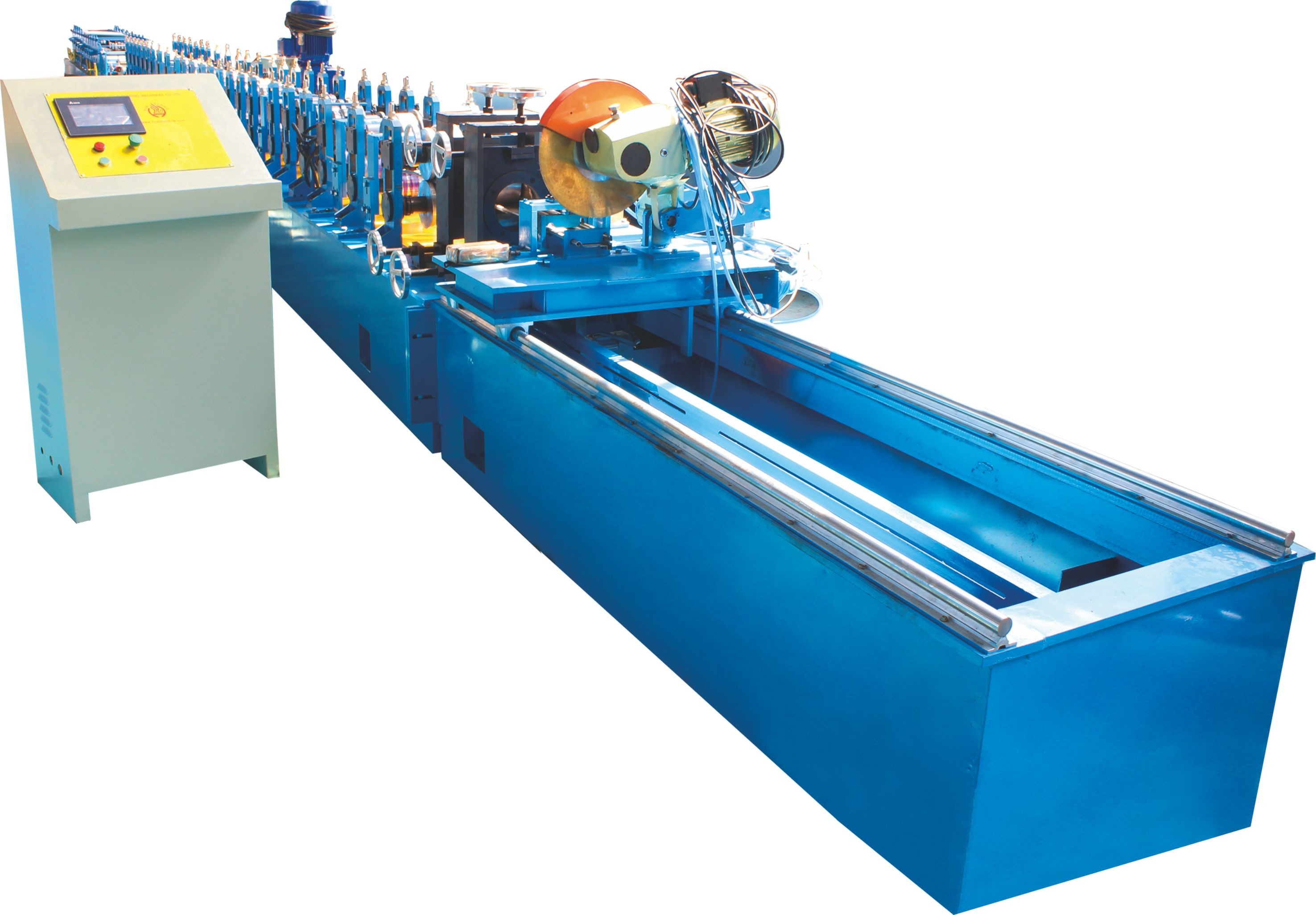

Galvanized Steel Rolling Door Frame Roll Forming Machine 13 Stations
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-100-80-125 |
| Minimum Order Quantity | 1 set |
| Price | Negotiation |
| Packaging Details | water proof package |
| Delivery Time | 60 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Input Material | Galvanized Steel And Carbon Steel | Material Of Rollers | SKD11 Or Cr15 |
|---|---|---|---|
| Guarantee | 5 Years | Production Capacity | 15m/min |
| Application | Rolling Doors And Industiral Doors | Hardness | HRC58~62 Degree |
| Forming Stations | 13 Stations | Perforation | Available |
| PLC | Detla System | ||
| High Light | door frame forming machine,door frame making machine |
||
Product Description
rolling doors
Main component of the line:
| NO. | name | quantity |
| Main roll former | ||
| 1 | Un-coiler (2 tons ) MANUAL | 1 |
| 2 | roll former | 1 |
| 3 | Hydraulic cutter | 1 |
| 4 | PLC control cabinet | 1 |
| 5 | Output table with rollers(6 meters) | 1 |
TECHNICAL DETAILS
Un-coiler
1. Capacity: 2 tons
2. Material: #45 steel quenched
3. Inner diameter: 410~ 580mm
Main roll former
1. Stations: 13
2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON, 800 MPA
3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA
4. Bearing brand: FAG Germany
5. Main Motor: 5.5 KW, 380V, 50HZ
CHAMICAL COMPOSITION:
| C | SI | MN | P | S | CR | NI | CU | MO | AI | V | B | |
| Shaft | 0.450 | 0.220 | 0.540 | 0.027 | 0.008 | 0.050 | 0.020 | 0.010 | 0.000 | 0.009 | 0.000 | 0 |
| Rollers | 1.00 | 0.32 | 0.33 | 0.011 | 0.003 | 1.49 | 0.05 | 0.00 | 0.02 | 0.041 | ||
| Cutter | 1.57 | 0.34 | 0.38 | 0.022 | 0.010 | 11.10 | 0.18 | 0.14 | 0.48 | |||
| Cut knife | 2.04 | 0.23 | 0.23 | 0.020 | 0.010 | 11.66 | 0.12 | 0.06 |
PLC Control Cabinet:
1. Touch screen brand: DELTA
2. PLC brand: DELTA
3. Inverter brand: DELTA
4. Main components for low pressure electricity: Schneider Germany
5. Encoder: Omron
Output table
1. Length: 6 meters
2. Drive type: Rollers
CUTTING PLATFORM
1. Cutting type: Hydraulic system
2. Motor: 4KW; 380V; 50HZ
3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950
Un-coiler --Pneumatic feeder -- Micro perforation -- Re-coiler
| 1 | Un-coiler (automatic) 2 tons | 1 |
| 2 | Mechanical press machine | 1 |
| 3 | Pneumatic feeder | 1 |
| 4 | Re-coiler (automatic) | 1 |
| 5 | Perforated mould | 1 |
