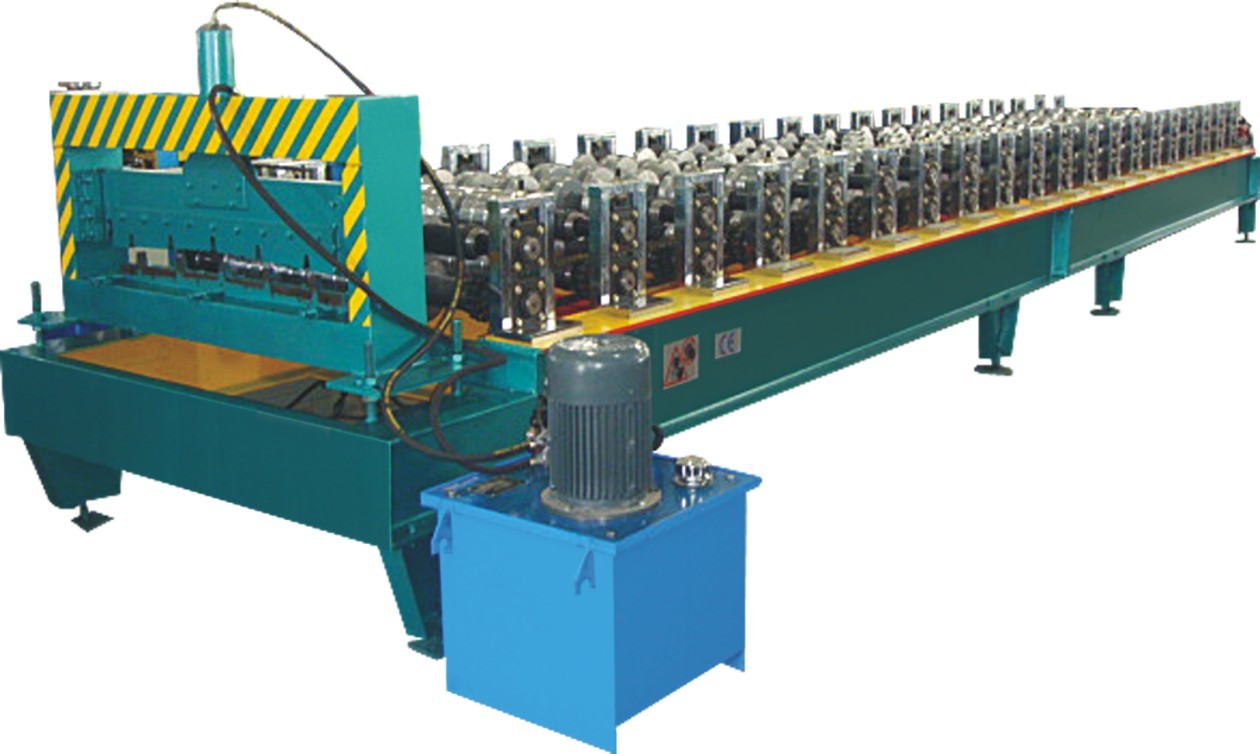

Hydraulic Cutting Trapezoidal Metal Deck Roll Forming Machine LB38-200-1000
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-1000-1200 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 60 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 5 per month |
Product Details
| Material | PPGI And Galvanized Steel | Guarantee | 5 Years |
|---|---|---|---|
| Material Of Rollers | #45 | Hardness | HRC58~62 Degree |
| PLC | Delta Brand | Decoiler Capacity | 5 Tons Hydraulic |
| High Light | sheet metal roll forming machines,roof sheet forming machine |
||
Product Description
ations of Roof Deck Sheet Panel Roll Forming Machine
Roofing sheet roll forming machines are extensively used in building steel-structure large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences and different kinds of greenhouses.
Main Specifications of TW38-200-1000 Trapezoidal Sheet Roll Forming Machine
| Trapezoidal Roof Deck Sheet Roll Forming Machine Technical Data | |
| Material specifications | Color Steel Coil, PPGI |
| Thickness 0.3-0.7mm | |
| Yield Strength 350-550Mpa | |
| Coil width 1250mm | |

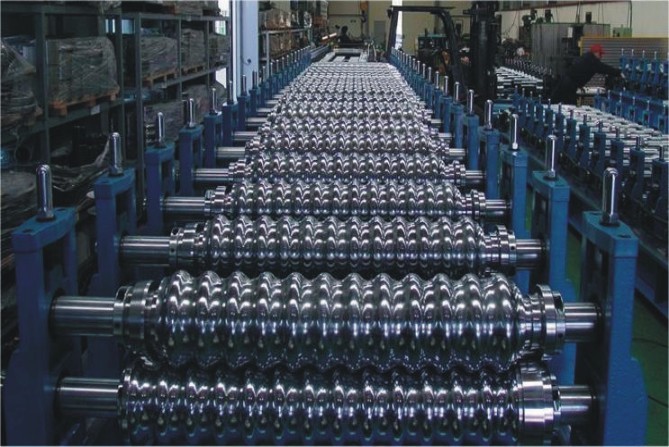

| Forming Roller Stations | 24 forming stations |
| Diameter of Forming Shaft | 75mm |
| Forming Speed | 0-20m/min |
| Forming Roller Material | 45# Steel, coated with hard chrome 0.05mm |
| Cutter Material | CR12Mov Mold steel, with quench treatment |
| Controlling system | PLC with Touch screen & Inverter |
| Main Motor Power | 7.5KW |
| Cutting Power | 3KW |
| Machine weight | 5600Kgs |
Finished Roof Profile Sheet
Main Components
| Hydraulic Decoiler | 1 Unit |
| Pinch Guiding Device | 1 Unit |
| Roll Forming System | 1 Unit |
| Flying Cutting System | 1 Unit |
| PLC Control Box | 1 Unit |
| Hydraulic Station | 1 Unit |
| Runout Table | 1 Unit |
