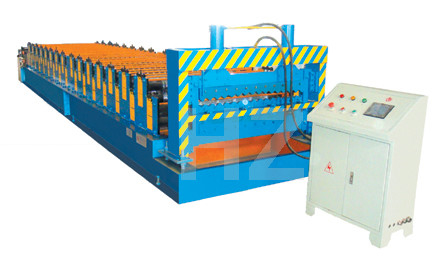

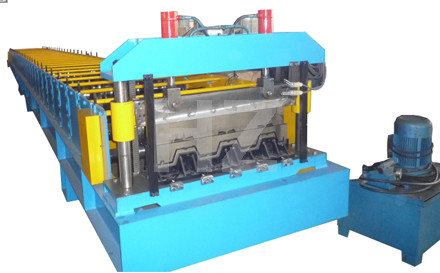

Speed 0-15m/Min Sheet Metal Roll Forming Machines / Metal Roofing Equipment

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-1220-1250
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 60 days
Payment Terms L/C, D/P, T/T
Supply Ability 3 per month
Product Details
Material PPGI Input Sheet Thickness 0.3~0.8mm
Guarantee 5 Years Material Of Rollers #45
Hardness HRC58~62 Degree Decoiler 5 Tons Capacity, Hydraulic
High Light

sheet metal roll forming machines

,

roof tile making machine
Leave a Message
Product Description

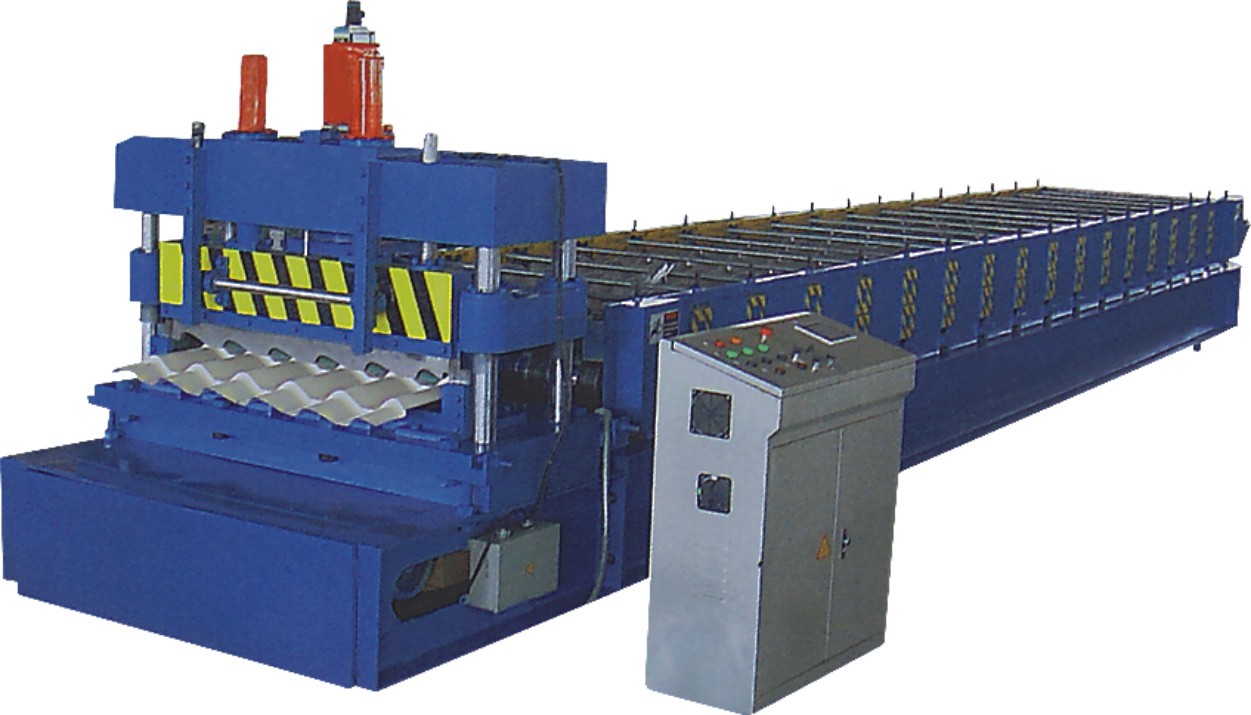

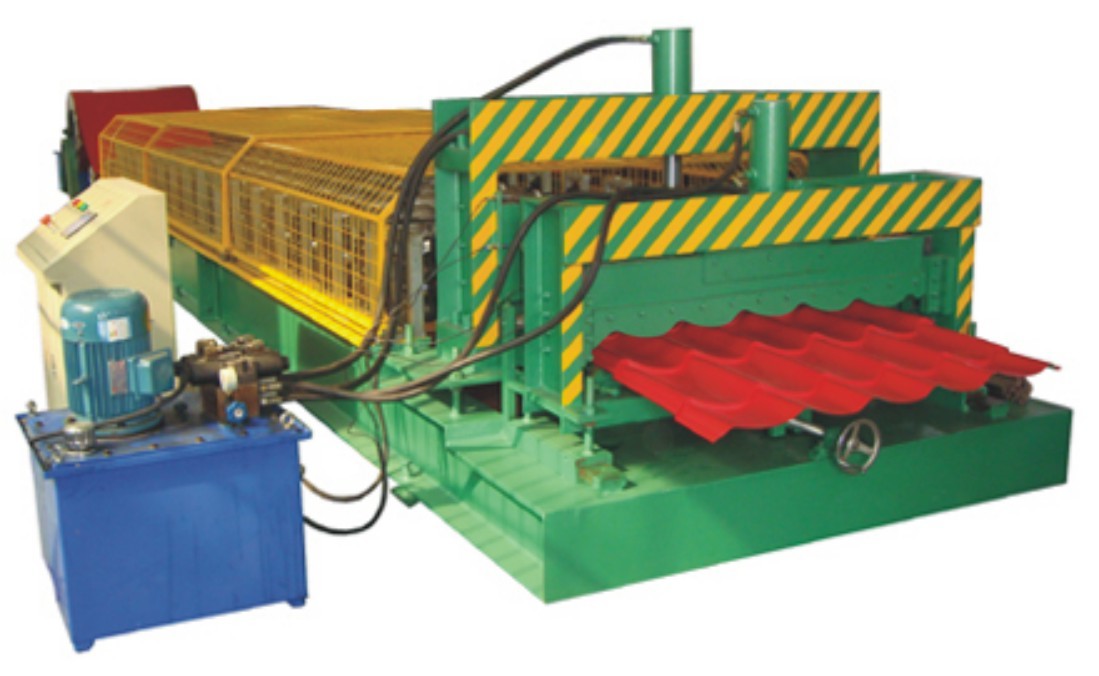

Forming Speed 0-15m/min Tile Roll Forming Machine For Metal Roof Tile steel





Main Specification



Material Thickness 0.3-0.7mm
Coil Width Customized, 1000mm or 1200mm or 1250mm
Yield Strength 250-300 Mpa
Material PPGI,Color Steel,GI
Decoiler/Uncoiler Uncoiler Type Manual or Hydraulic or Auto Type
Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
Tile Roll Forming Machine Forming Stations 13-18 Stations ( Depend on Profiles )
Roller material 45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft 76mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 5.5KW



  • Hydraulic Station: Famous Chinese brand
  • Hydraulic Power: 5.5KW
  • Cutting type: Hydraulic cutting
  • Cutting Die Material: Cr12Mov steel, HRC58-62
  • CuttingTolerance: 10m+/-1.5mm
  • Encoder: OMRON Brand
  • PLC: PANASONIC Brand
  • Inverter: YASKAWA Brand
  • Touch screen: PANASONICE
  • Operation type:Touch screen & Button



Components



  • Decoiler ---------------------------------------------- 1 Unit
  • Feeding guide -------------------------------------- 1 Unit
  • Main roll forming machine ------------------------ 1 Unit
  • Hydraulic pressing device -------------------------1 Unit
  • Hydraulic cutting device --------------------------- 1 Unit
  • Hydraulic Station ----------------------------------- 1 Unit
  • PLC computer control ------------------------------1 Unit
  • Output tables ---------------------------------------- 2 Units



Work Flowing



Decoiler --- Fedding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table



Application



Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall claddin



Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience
  • Speed 0-15m/Min Sheet Metal Roll Forming Machines / Metal Roofing Equipment 0
