Galvanized Steel Sheet 2 Wave Guard Rails Roll Forming Machine for Curvinging Highway
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-312 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 90 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Material | Galvanized Steel | Input Sheet Thickness | 2.0~4.0mm |
|---|---|---|---|
| Rollers Material | SKD11 Or CR15 | Hardness | HRC58~62 Degree, Chromed |
| Color | To Be Customized | Guarantee | 5 Years |
| Decoiler | 5 Tons Capacity, Hydraulic Decoiler | Motor Power | 35KW, 380V.50HZ |
| High Light | highway guardrail roll forming machine,sheet metal forming machine |
||
Product Description
Galvanized Steel Sheet 2 Wave Guardrail Curving Machine for Curvinging Highway Guardrail Profile
This guardrail forming machine mainly consists of decoiler, guide equipment, levelling system, hydraulic station, punching, roll forming system, cutting system, runout table.
A). Main Specifications
- Material Thickness: 2-4mm
- Forming Station: 15 excluding the feeding rollers and leveling rollers
- 7 Rollers leveling
- Principal Axis Diameter: ￠100mm
- Working Speed: 10-12m/min
- Main Power: 35KW
- Leveling Power: 2.2KW
- Hydraulic Power: 15KW
- Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
- Gross Weight of Machine: about 12 Ton
- Voltage: 380V, 3 Phase 50Hz
B). Main Components
- Hydraulic Decoiler ---------------------------------------------- 1 Unit
- Leveling and Feeding Guide ---------------------------------- 1 Unit
- Punching Device ------------------------------------------------- 1 Unit
- Roll Forming Machine ------------------------------------------- 1 Unit
- Hydraulic Cutting ------------------------------------------------- 1 Unit
- Hydraulic Station ------------------------------------------------- 1 Unit
- PLC Contol System ----------------------------------------------- 1 Unit
- Runout Table ------------------------------------------------------ 1 Unit
- Spare Coupling ---------------------------------------------------- 1 Unit
C). Applications
Highway guardrail, w beam, w beam guardrail, crash barrier...
D). Competitive Advantages
1.Durable and widely used products
2.Simple to operate when assemble
3.Easy to handle the products
4.Direct manufacturer, provide with high quality and best price.
5.Provide sample in free.
6.Products and design solution supplied fast and freely
7.Cutting service.
8.Best design oriented for your special requirements
9.Lifelong technical support
10.Professional team support

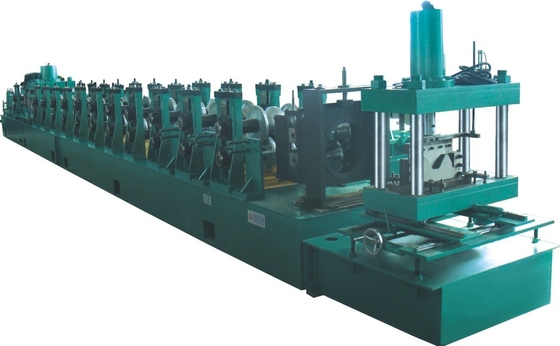

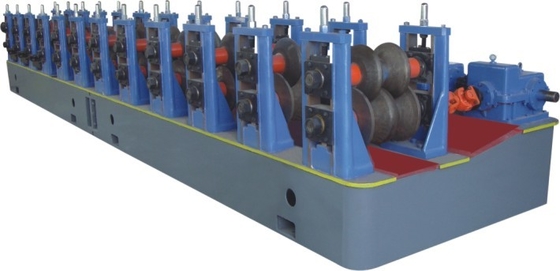

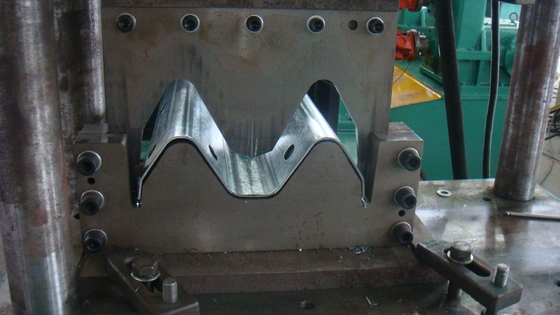

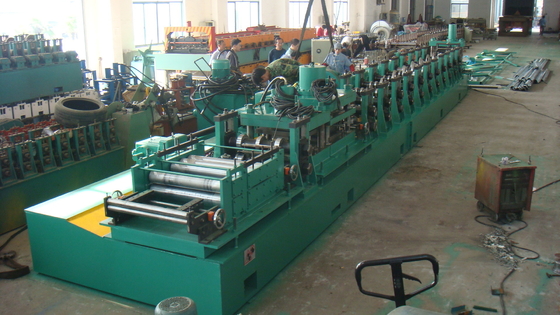

E). More Pictures
