16 Steps Station Sigma Section Guard Rails Roll Forming Machine With CE LB-SG100

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-400-500-600
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 90 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Guarantee 5 Years Material Galvanized Steel
Input Sheet Thickness 2.0~4.0mm Rollers Material SKD11 Or CR15
Hardness HRC58~62 Degree , Chromed Color To Be Customized
Punching Pre-punching Holes Hydraulic System
High Light

highway guardrail roll forming machine

,

guardrail roll forming machine
Leave a Message
Product Description

16 Steps Forming Station Sigma Section Roll Forming Machine With CE L-SG100





Main Specifications of Sigma Section Roll Forming Machine





  • Material thickness: 4mm
  • Main power: 21KW
  • Forming Station: 16 steps
  • Cutting power of Sigma Section Rll Forming Machine: 7.5KW
  • Drive of Sima Section Roll Forming Machine: Gearbox gimal transmssion
  • Roller Material: GCr15 steel, quenched and heated process
  • Shaft material: 45# Steel, heated and quenched treatment
  • Machine frame: Welded structural steel
  • Machine base: 36# H steel
  • Thickness of Frame steel: S18







Main Components





  • Hydraulic Decoiler ------------------------------------------- 1 Unit
  • Leveling and Feeding Guide --------------------------------- 1 Unit
  • Roll Forming Machine --------------------------------------- 1 Unit
  • Punching Device -------------------------------------------- 1 Unit
  • Hydraulic Cutting ------------------------------------------- 1 Unit
  • Hydraulic Station ------------------------------------------- 1 Unit
  • PLC Contol System ----------------------------------------- 1 Unit
  • Runout Table ----------------------------------------------- 1 Unit
  • Spare Coupling --------------------------------------------- 1 Unit









Reference Sigma Profile Drawing









16 Steps Forming Station Sigma Section Roll Forming Machine With CE TW-SG100











Applications







Sigma post, guardrail post, sigma section, sigma profile, sigma shape, sigma purlin...





16 Steps Forming Station Sigma Section Roll Forming Machine With CE TW-SG100







Our Advantage





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

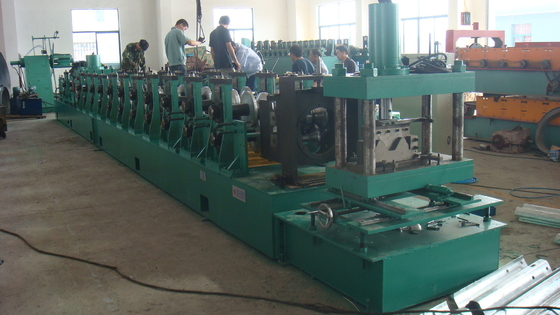

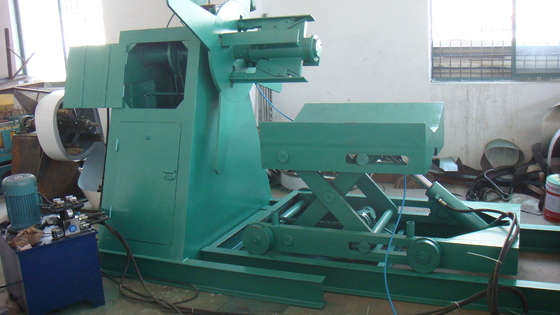

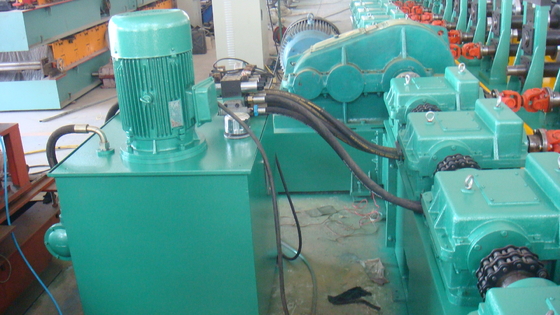

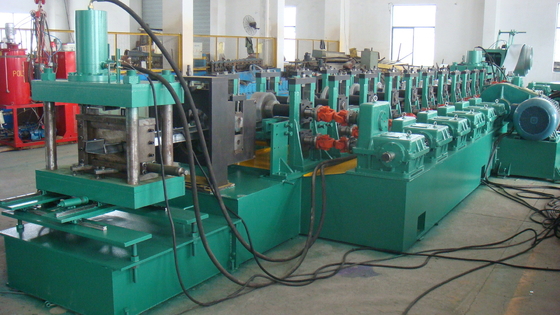

Sigma Section Forming Machine Pictures

16 Steps Station Sigma Section Guard Rails Roll Forming Machine With CE LB-SG100 216 Steps Station Sigma Section Guard Rails Roll Forming Machine With CE LB-SG100 316 Steps Station Sigma Section Guard Rails Roll Forming Machine With CE LB-SG100 416 Steps Station Sigma Section Guard Rails Roll Forming Machine With CE LB-SG100 5
