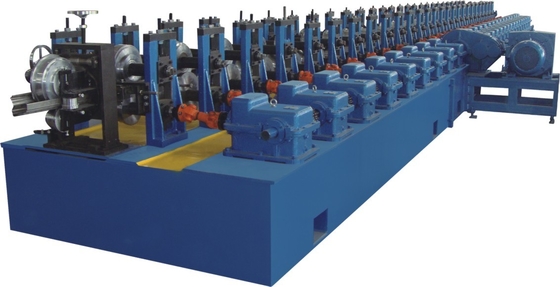

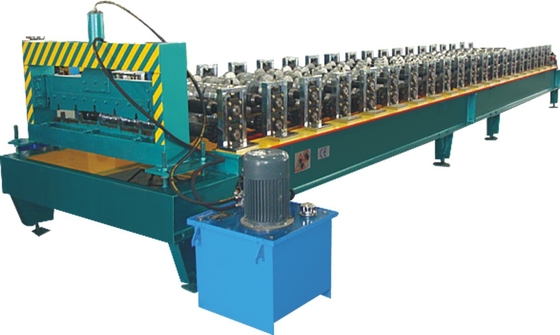

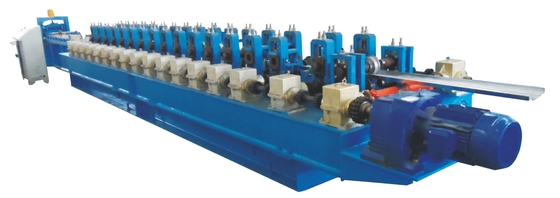

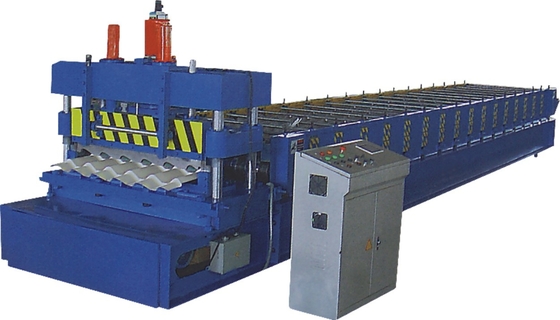

Color Steel Glazed Tile Cold Roll Forming Machine 5.5 Kw Main Motor Power

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-400-500-600
Minimum Order Quantity 1 set
Price negotation
Packaging Details water proof package
Delivery Time 90 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Rollers Material Gcr15 Hardness 58~62 Degree
Working Speed 10~20m/min PLC Panasonic Brand
Color To Be Customized
High Light

highway guardrail forming machine

,

cold roll former
Leave a Message
Product Description

Color Steel Glazed Tile Roll Forming Equipment , 5.5 Kw Main Motor Power Roll Former Machine



A). Main Components



1. Decoiler 1 Unit
2. Film covering device 1 Unit
3. Feeding guide 1 Unit
4. Main roll forming machine 1 Unit
5. Hydraulic pressing device 1 Unit
6. Hydraulic cutting device 1 Unit
7. Hydraulic Station 1 Unit
8. PLC computer control 1 Unit
9. Output table 1 Unit



B). Working Flowing



Decoiler --- Feeding Guide --- Film Covering --- Roll Forming --- Pressing --- Cut-to-length --- Run out table



C). Main Specifications



  • Material thickness: 0.3-0.7mm
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 11 Kw
  • Forming Station: 13-22 ( depend on profile drawing )
  • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
  • Main Axis Material: High grade 45#, quenched and heat treatment.
  • Axis Diameter: ¢ 75mm
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Transmission
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Material Of Cutting Blade: C r 12
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Machine Frame stand: Welded structural steel
  • Thickmess of Fame Steel: 18mm
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 8.5 Ton
  • Color Steel Glazed Tile Cold Roll Forming Machine 5.5 Kw Main Motor Power 0Color Steel Glazed Tile Cold Roll Forming Machine 5.5 Kw Main Motor Power 1Color Steel Glazed Tile Cold Roll Forming Machine 5.5 Kw Main Motor Power 2
