PLC Automatic Control Door Frame Roll Forming Machine With Hydraulic Cutter

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-80-75-100
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 60 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Input Material Galvanized Steel And Carbon Steel Coated Material Of Rollers SKD11 Or Cr15
Hardness Of Rollers HRC59~62 Degree Guarantee 5 Years
PLC Brand Of Delta Perforation Available
Forming Station 13 Stations Color To Be Customized
High Light

door frame forming machine

,

door frame making machine
Leave a Message
Product Description
Main component of the line:
NO. name quantity
Main roll former
1 Un-coiler (2 tons ) MANUAL 1
2 roll former 1
3 Hydraulic cutter 1
4 PLC control cabinet 1
5 Output table with rollers(6 meters) 1



TECHNICAL DETAILS

Un-coiler

1. Capacity: 2 tons

2. Material: #45 steel quenched

3. Inner diameter: 410~ 580mm

Main roll former

1. Stations: 13

2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON, 800 MPA

3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA

4. Bearing brand: FAG Germany

5. Main Motor: 5.5 KW, 380V, 50HZ

CHAMICAL COMPOSITION:

  C SI MN P S CR NI CU MO AI V B
Shaft 0.450 0.220 0.540 0.027 0.008 0.050 0.020 0.010 0.000 0.009 0.000 0
Rollers 1.00 0.32 0.33 0.011 0.003 1.49 0.05 0.00 0.02 0.041
Cutter 1.57 0.34 0.38 0.022 0.010 11.10 0.18 0.14 0.48
Cut knife 2.04 0.23 0.23 0.020 0.010 11.66 0.12 0.06

PLC Control Cabinet:

1. Touch screen brand: DELTA

2. PLC brand: DELTA

3. Inverter brand: DELTA

4. Main components for low pressure electricity: Schneider Germany

5. Encoder: Omron

Output table

1. Length: 6 meters

2. Drive type: Rollers

CUTTING PLATFORM

1. Cutting type: Hydraulic system

2. Motor: 4KW; 380V; 50HZ

3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950

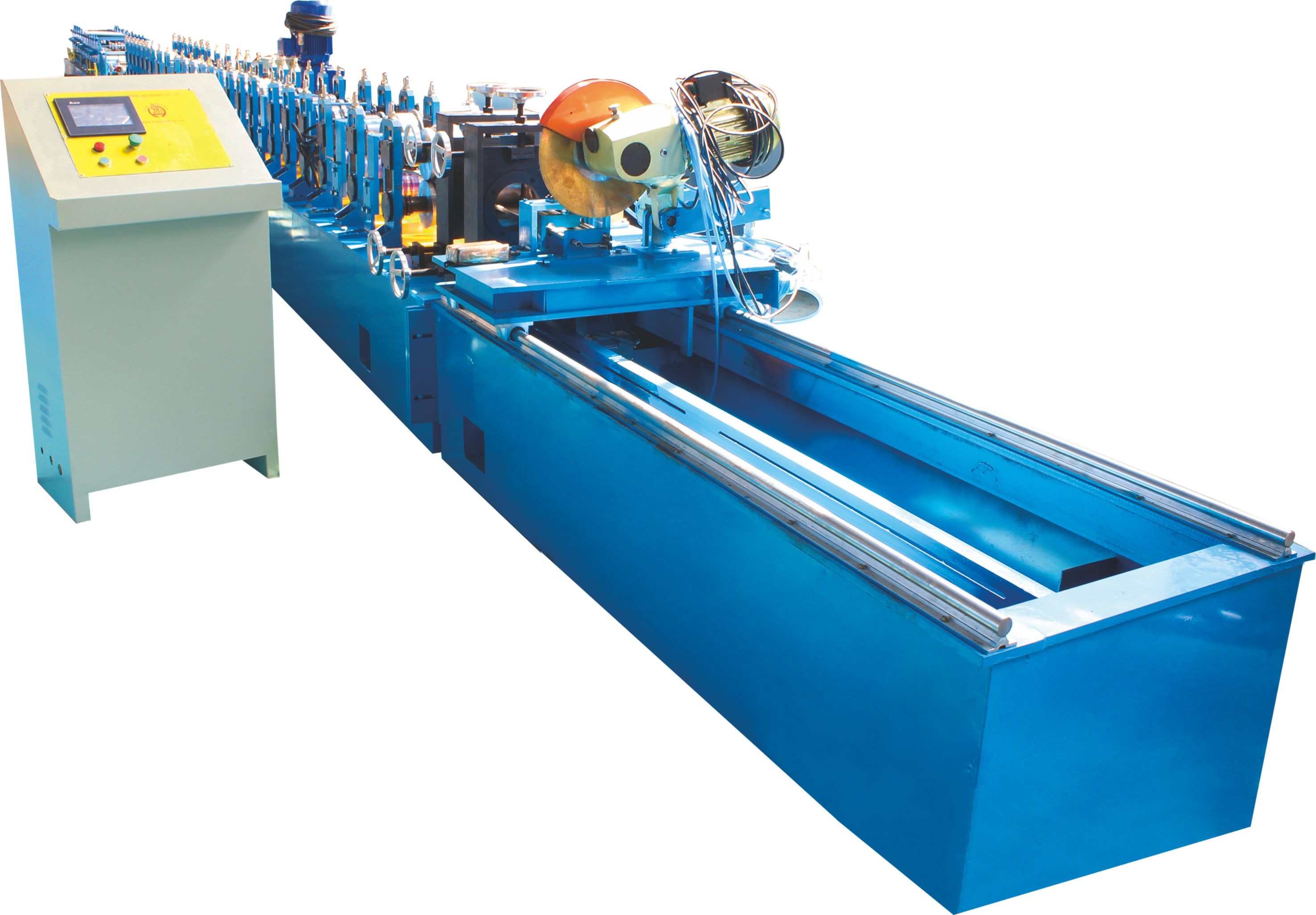

PLC Automatic Control Door Frame Roll Forming Machine With Hydraulic Cutter 0

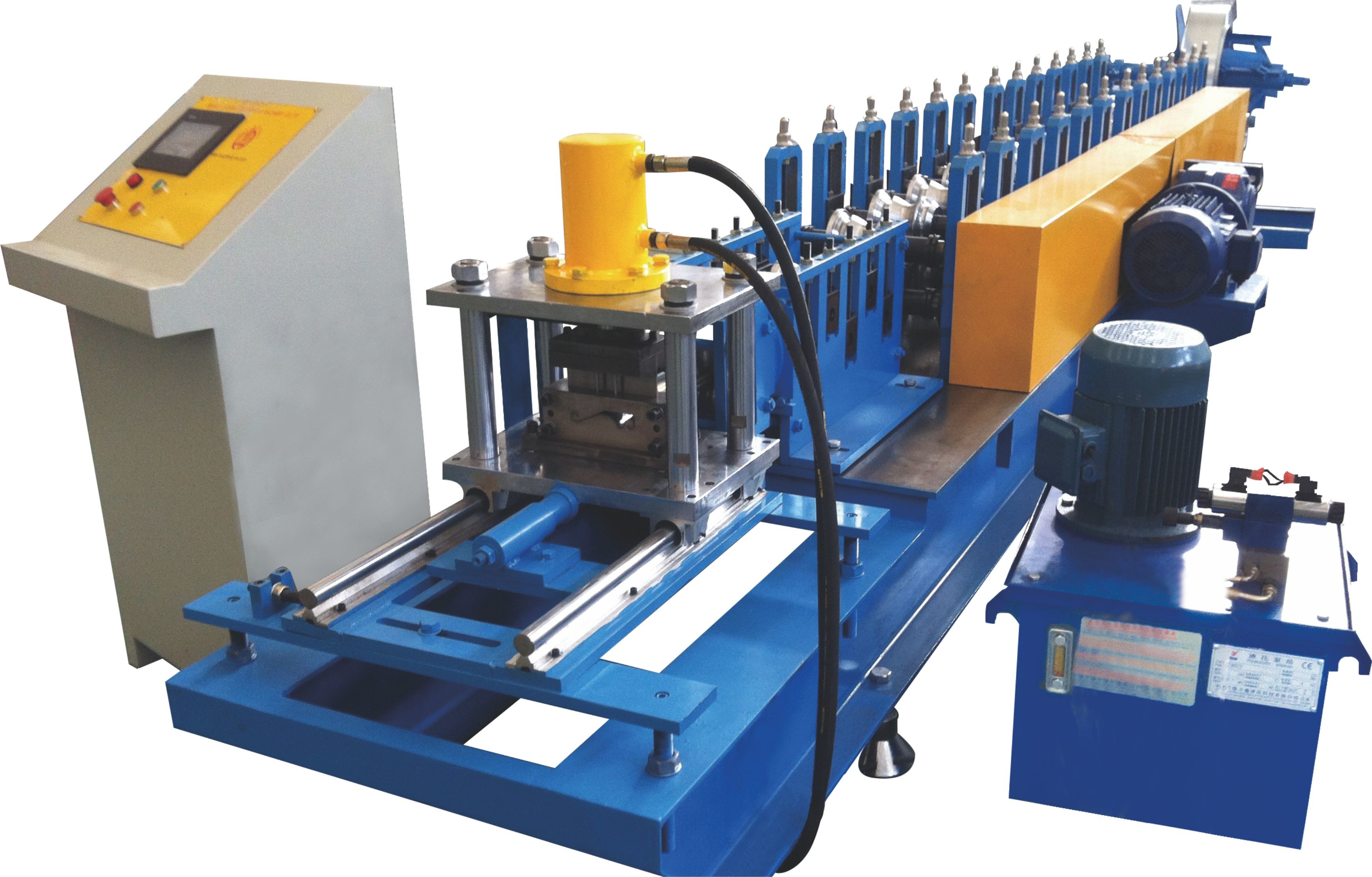

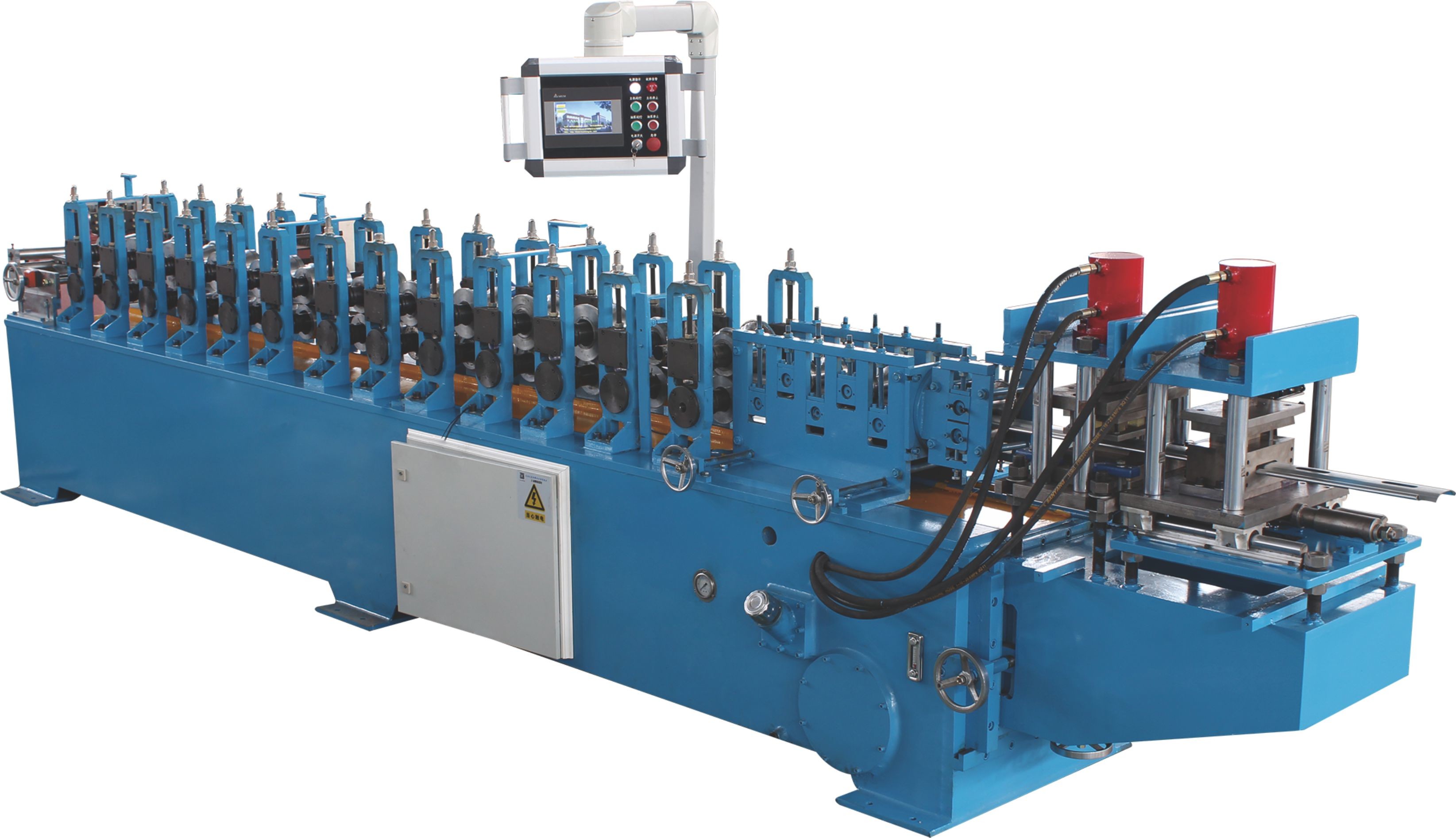

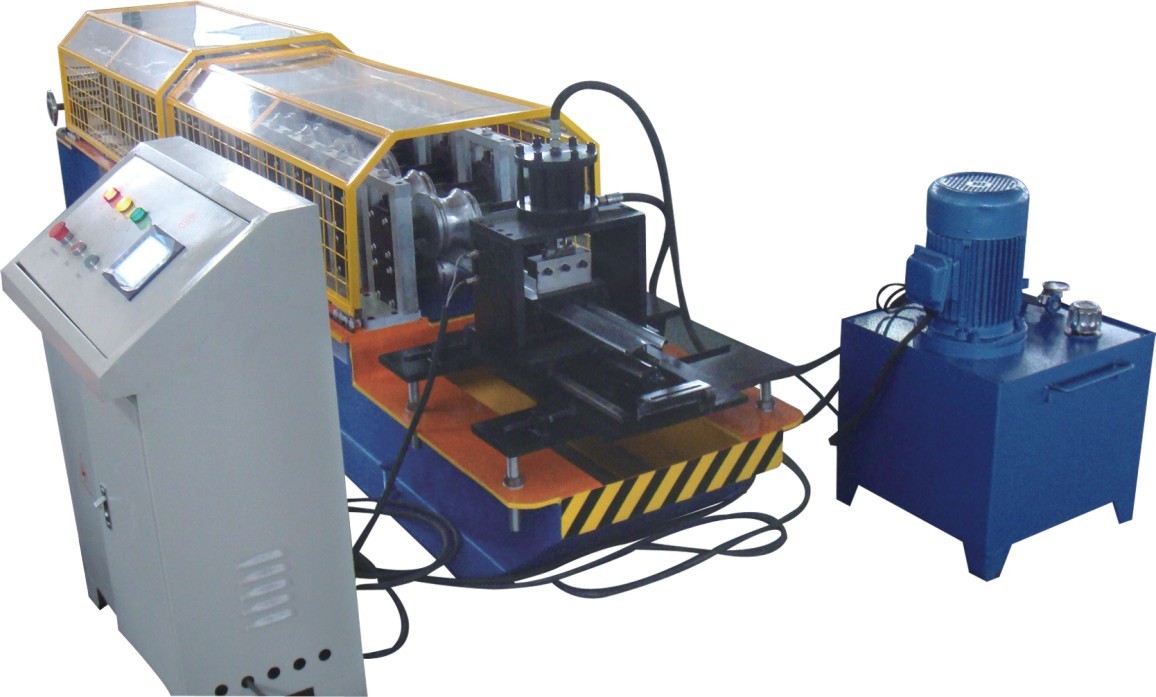

PLC Automatic Control Door Frame Roll Forming Machine With Hydraulic Cutter 1PLC Automatic Control Door Frame Roll Forming Machine With Hydraulic Cutter 2PLC Automatic Control Door Frame Roll Forming Machine With Hydraulic Cutter 3
