Galvanized Steel Roofing Sheet Roll Forming Machine For Two Roof Wall Panel Profiles
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-914-1000 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 50 days |
| Payment Terms | L/C, D/P,, T/T |
| Supply Ability | 2 per month |
Product Details
| Material | Galvanized Steel Sheet And PPGI | Guarantee | 5 Years |
|---|---|---|---|
| Material Thickness | 0.3~0.8mm | Material Of Rollers | #45 |
| Hardness | HRC58~62 Degree | Forming Station | 16 Stations |
| Color | To Be Customized | Main Motor | 7.5 KW 380V 50HZ |
| High Light | sheet metal roll forming machines,roof tile making machine |
||
Product Description
Galvanized Steel Sheet Double Layer Roof Wall Panel Roll Forming Machine for Two Roof Wall Panel Profiles
A). Main Specifications
- Material thickness: 0.3-0.7mm
- Material width: depend on customer’s requirement
- Decoiler Type: manual or automatical type ( depend on customer’s requirement )
- Weight Capacity Of Decoiler: 5 Ton
- Main Motor Power: 7.5 Kw
- Hydraulic Motor Power: 3 Kw
- Forming Station: approx 18 & 18 ( depend on profile drawing )

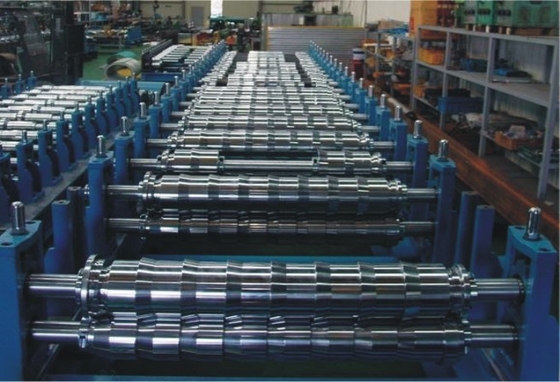

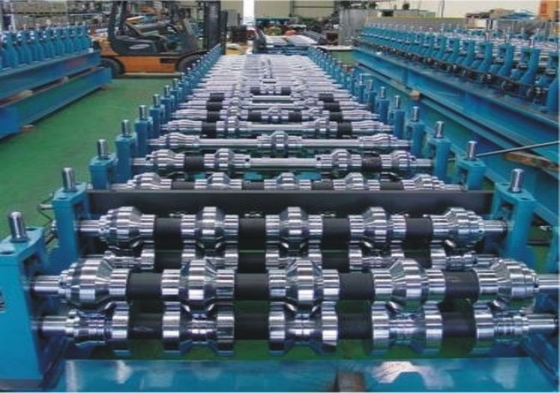

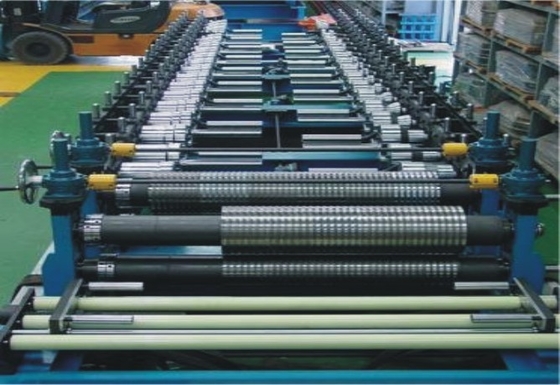

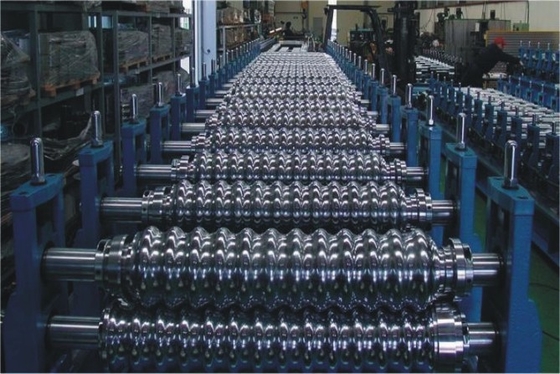

- Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
- Main Axis Material: High grade 45#, quenched and heat treatment.
- Axis Diameter: ¢ 75mm
- Working Speed: 10-15 m/min
- Transporting Type: Chain Transmission
- Heat Treatment of Cutting Blade: HRC 50-60
- Type of Cutting: Hydraulic cutting
- Material Of Cutting Blade: C r 12
- Machine Frame stand: Welded structural steel
- Thickmess of Fame Steel: 18mm
- Electrical Control: PLC Frequency Control System with touch screen
- PLC: PANASONIC Brand
- Encoder: OMRON Brand
- Transducer: PANASONIC Brand
- Machine Weight: about 8.5 Ton
B). Main Components
1. Decoiler -------------------------------------------- 1 Unit
2. Feeding guide -------------------------------------- 1 Unit
3. main roll forming machine ------------------------ 1 Unit
4. Hydraulic cutting device --------------------------- 1 Unit
5. Hydraulic Station ----------------------------------- 1 Unit
6. PLC computer control ------------------------------ 1 Unit
7. Output table ---------------------------------------- 1 Unit
C). Working Flow
Decoiler --- Feeding Guide --- Roll Forming --- Cut-to-length --- Run out table
D). Applications
Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
E). Competitive Advantages
1. Durable and widely used products
2. Simple to operate when assemble
3. Easy to handle the products
4. Direct manufacturer, provide with high quality and best price.
5. Provide sample in free.
6. Products and design solution supplied fast and freely
7. Best design oriented for your special requirements
8. Lifelong technical support
9. Professional team support
