Roofing Sheet Double Layer Roll Forming Machine With Galvanized Steel And PPGI
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-400-500-600 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 90 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Material | Galvanized Steel And PPGI | Guarantee | 5 Years |
|---|---|---|---|
| Material Of Rollers | #45 | Hardness | HRC58~62 Degree |
| PLC | Delta Brand | Hydraulic Decoiler | 5 Tons Capacity, Hydraulic |
| Color | To Be Customized | Input Sheet Thickness | 0.3~0.8mm |
| High Light | sheet metal roll forming machines,roof tile making machine |
||
Product Description
l Double Layer Roofing Sheet Roll Forming Machine for Making Two Different Roof Wall Panel Profiles
A). Main Specifications
- Material thickness: 0.3-0.8mm
- Material width: depend on customer’s requirement
- Decoiler Type: manual or automatical type ( depend on customer’s requirement )
- Weight Capacity Of Decoiler: 5 Ton
- Main Motor Power: 7.5 Kw
- Hydraulic Motor Power: 3 Kw
- Forming Station: approx 18 & 18 ( depend on profile drawing )
- Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
- Main Axis Material: High grade 45#, quenched and heat treatment.
- Axis Diameter: ¢ 75mm
- Working Speed: 0-15 m/min
- Transporting Type: Chain Transmission
- Heat Treatment of Cutting Blade: HRC 50-60
- Type of Cutting: Hydraulic cutting
- Material Of Cutting Blade: C r 12
- Heat Treatment of Cutting Blade: HRC 50-60
- Machine Frame stand: Welded structural steel
- Thickmess of Fame Steel: 18mm
- Electrical Control: PLC Frequency Control System with touch screen
- PLC: PANASONIC Brand
- Encoder: OMRON Brand
- Transducer: PANASONIC Brand
- Machine Weight: about 8.5 Ton
B). Main Components
Decoiler -------------------------------------------- 1 Unit
Feeding guide -------------------------------------- 1 Unit
main roll forming machine ------------------------ 1 Unit
Hydraulic cutting device --------------------------- 1 Unit
Hydraulic Station ----------------------------------- 1 Unit
PLC computer control ------------------------------ 1 Unit
Output table ---------------------------------------- 1 Unit
C). Working Flow
Decoiler --- Feeding Guide --- Roll Forming --- Cut-to-length --- Run out table
D). Applications
Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
E). Competitive Advantages
1.Durable and widely used products
2.Simple to operate when assemble
3.Easy to handle the products
4.Direct manufacturer, provide with high quality and best price.
5.Provide sample in free.
6.Products and design solution supplied fast and freely
7.Best design oriented for your special requirements
8.Lifelong technical support
9.Professional team support

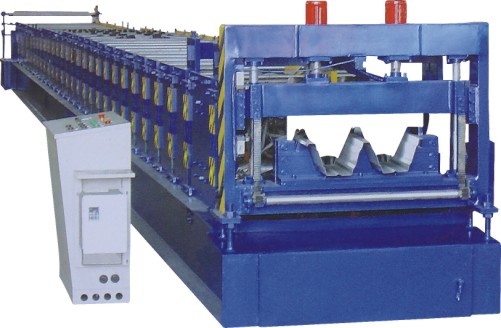

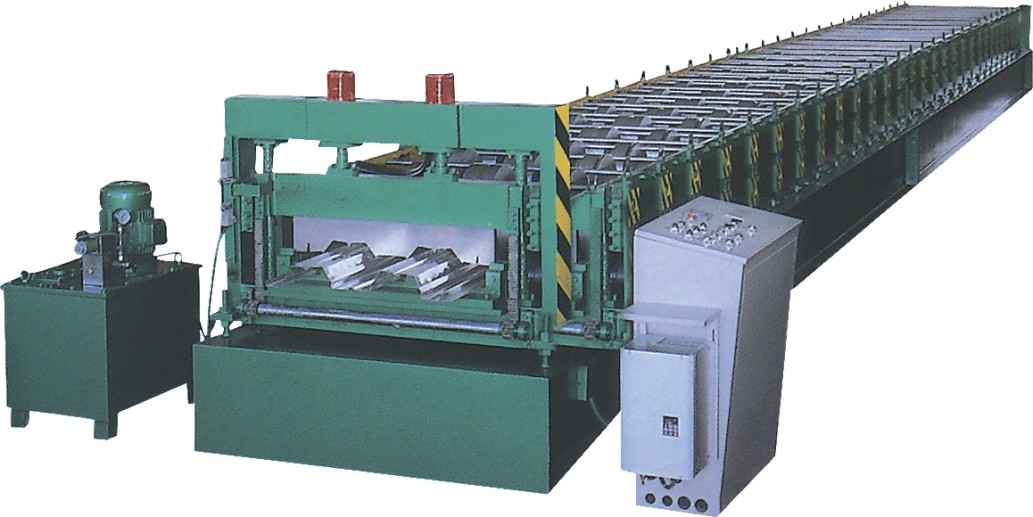

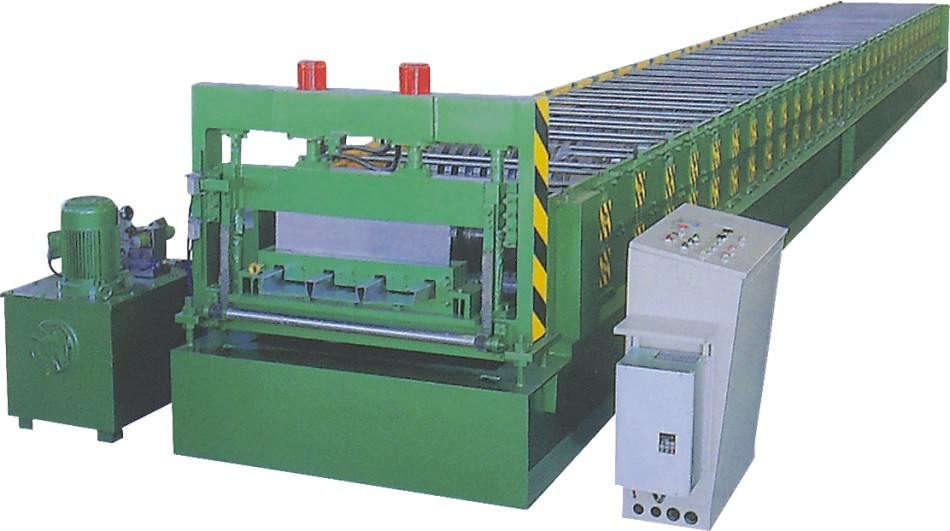

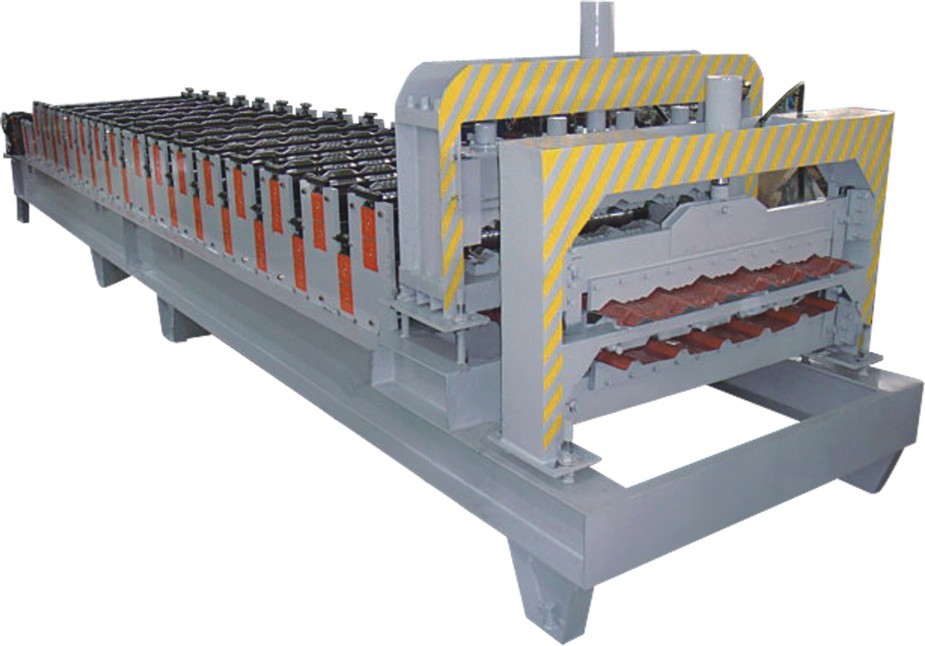

F). More Reference Pictures
