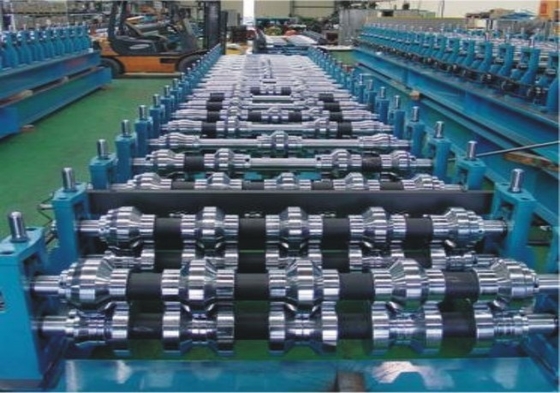

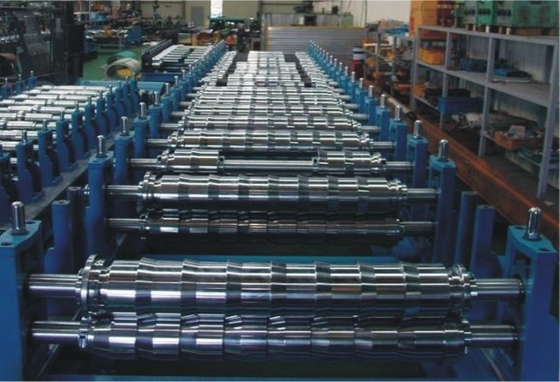

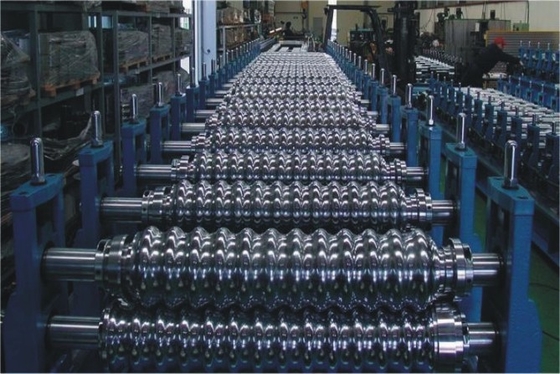

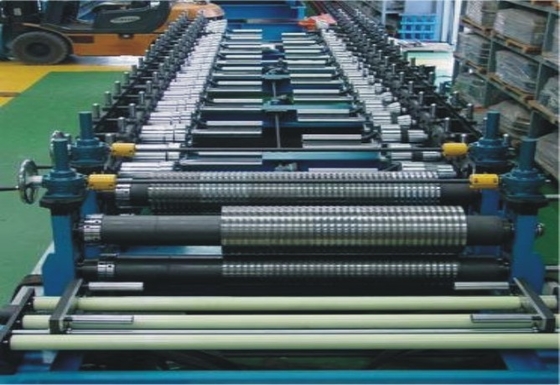

18 Forming Stations Automatic Double Layer Roll Forming Machine With PLC Control
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-1000-1220-1200 |
| Minimum Order Quantity | 1 set |
| Price | negotation |
| Packaging Details | water proof package |
| Delivery Time | 90 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Rollers Material | Gcr15 | Hardness | 55~58 Degree |
|---|---|---|---|
| Working Speed | 10·20m/min | Thickness Of Input Sheet | 0.3~0.8mm |
| Color | To Be Customized | PLC | Automatic |
| High Light | double deck roll forming machine,metal roofing forming machine |
||
Product Description
18 Forming Stations Automatic Double Layer Roll Forming Machine For Roof Wall Panels With PLC Control
Main Specification of Double Layer
- Material thickness: 0.3-0.8mm
- Material width: depend on customer’s requirement
- Decoiler Type: manual or automatical type ( depend on customer’s requirement )
- Weight Capacity Of Decoiler: 5 Ton
- Main Motor Power: 7.5 Kw
- Hydraulic Motor Power: 3 Kw
- Material of forming rollers: 45# steel, plated with chrome on surface.
- Total weight of machine: About 6000-8000KGS
- Tolerance: 10m±1.5mm
- Forming steps: 18 - 26(depend on profiles)
- Shaft material: 40Cr,tempering treatment
- Dimension: About 11.5*1.8*1.6m(L*W*H) , or depend on profile
Working Flowing
Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table
Components
- Decoiler ---------------------------------------------- 1 Unit
- Feeding guide ---------------------------------------- 1 Unit
- main roll forming machine ---------------------------- 1 Unit
- Hydraulic cutting device ------------------------------ 1 Unit
- Hydraulic Station ------------------------------------- 1 Unit
- PLC computer control -------------------------------- 1 Unit
- Output table ----------------------------------------- 1 Unit
Profile Drawing
Application
Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
Our Advantages
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
