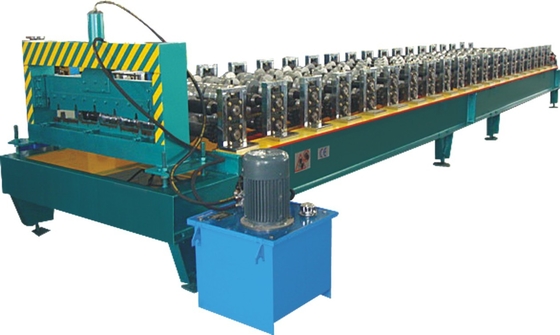

Custom High Speed Double Layer Roll Forming Machine For Roof And Wall Panel

  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-914-1250
Minimum Order Quantity 1 set
Price negotation
Packaging Details water proof package
Delivery Time 90 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Rollers Material Gcr15 Working Speed 10~20m/min
Hardness 55~58 Degree Thickness Of Input Sheet 0.3~0.8mm
Color To Be Customized
High Light

double deck roll forming machine

,

metal roll forming machines
Leave a Message
Product Description





Custom And High Speed Double Sheet Roll Former / Roll Froming Machine For Roof And Wall Panel



Main Specification of Double Layer



Material thickness 0.3-0.8mm for Roof Wall Profiles
Decoiler Type manual or automatical type ( depend on customer’s requirement )
Weight Capacity Of Decoiler 5T
Main Motor Power 7.5kw
Hydraulic Motor Power 3kw
Machine Weight about 8.5 Ton
Forming machine 18 Stations
Driven system Chain Driven 1.2 inches 20A double chain with longer shafts
Cutting Hydraulic Cutting Cr12mov
PLC Panasonic, Japan
Touch Screen Panasonic Japan
Encoder Omron





Working Flow



Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table



Custom High Speed Double Layer Forming Machine For Roof And Wall Panel



Main Components of Double Layer



Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Cutting System 1 Unit
PLC Computer Control Box 1 Unit
Support Table Unit





Application



Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding



Reference Drawing



Custom High Speed Double Layer Forming Machine For Roof And Wall Panel





Our Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

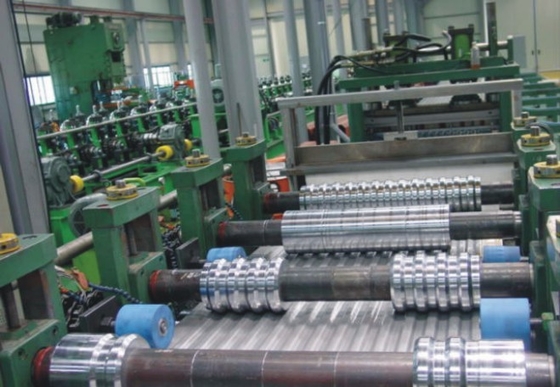

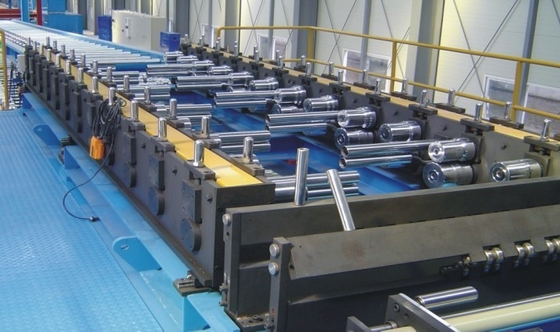

  • Custom High Speed Double Layer Roll Forming Machine For Roof And Wall Panel 2Custom High Speed Double Layer Roll Forming Machine For Roof And Wall Panel 3Custom High Speed Double Layer Roll Forming Machine For Roof And Wall Panel 4
