Windows Shutte Slat Roll Forming Equipment / Rolling Shutter Machine
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE;ISO9001 |
| Model Number | LB-39 |
| Minimum Order Quantity | 1 set |
| Price | USD60000 |
| Packaging Details | water proof |
| Delivery Time | 2 month |
| Supply Ability | 5 per month |
Product Details
| Customized Pattern | Automatic Punching And Cutting | ||
|---|---|---|---|
| High Light | rolling shutter making machine,metal forming equipment |
||
Product Description
windows shuttes slat forming machine
Windows & doors foam insulated shutters slat machine parameters:
Model (for windows): 37mm; 39mm; 42mm; 45mm (flat); 55mm
Model (for doors): 77mm; 90mm; 95mm; 98mm; 100mm
|

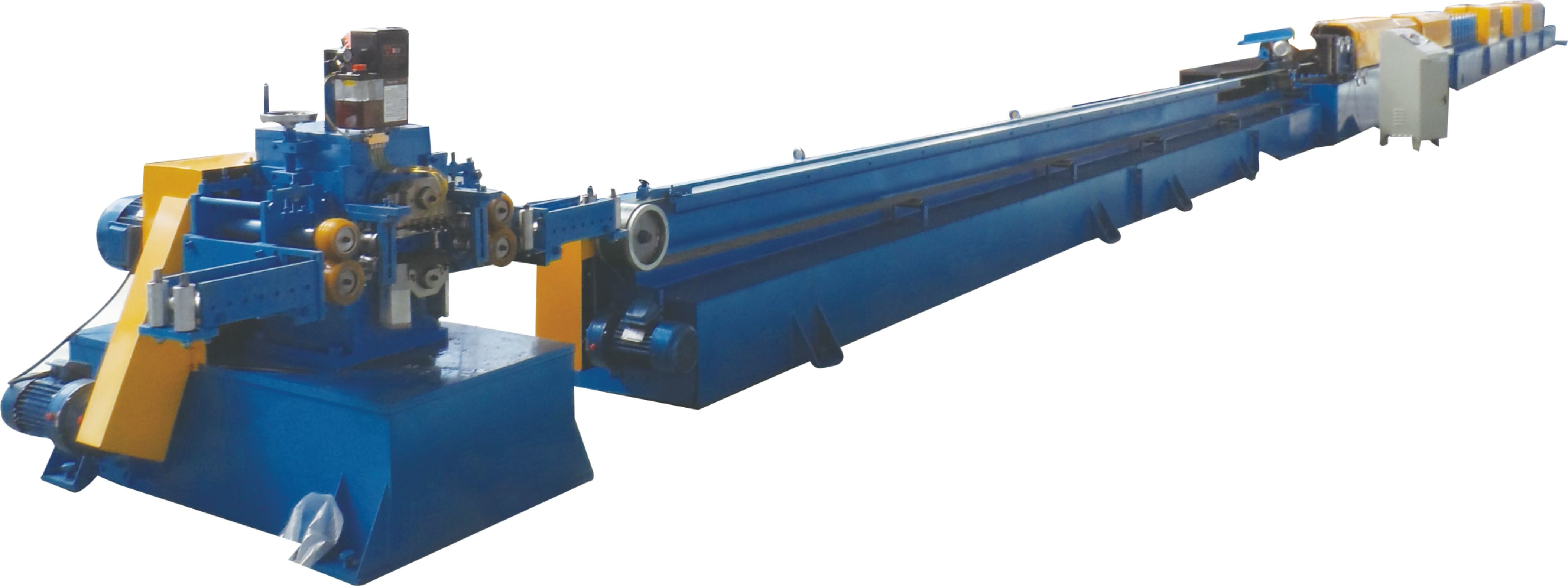

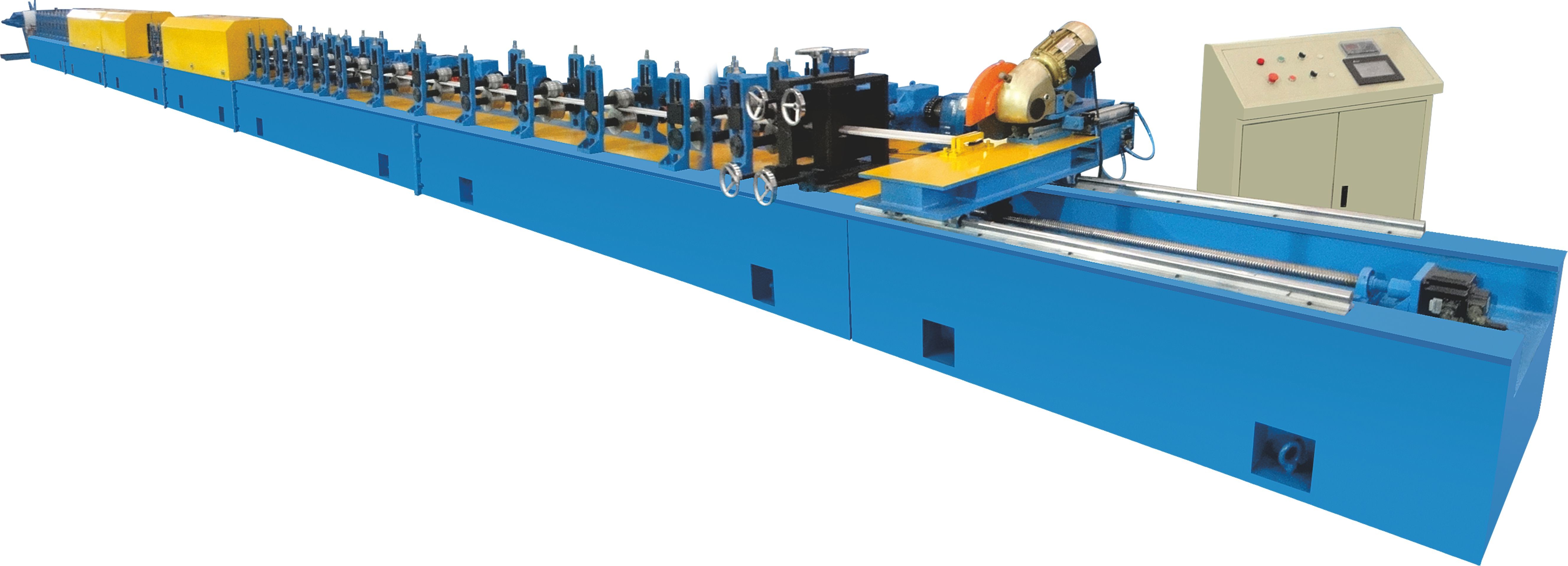

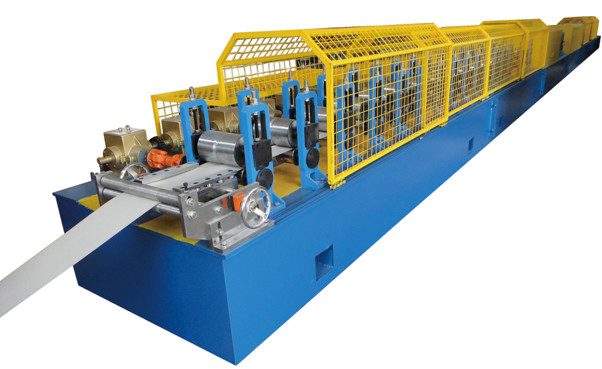

COMPLETE LINE LAYOUT Double head un-coiler ----- feeder guide --- roll forming –Heating device-- --PU Injection -roll forming – keep heating box --- ---- Pneumatic punching hole ------PLC control --- Flying saw cutting unit --- 6 meters roller run out table
|
COMPONENT OF COMPLETE LINE:
①Double head un-coiler: 2 tons capacity manual one/unit
②Main frame of forming machine one/unit
④Straighten part one / unit
⑤ Pneumatic flying saw cutting machine one / unit
⑥ Simple roller stacker 6 meters one/unit
⑦ PLC system: One/unit
8. PU Foam injection machine: One/ set
Specification for Foam machine:
1. Motor power: total 5.5 KW; 380V; 50/60HZ China brand
2. Mixing head with one spare is included
3. Mixing pump quantity: 8g/Second
4. Density: 70~80 Kg/m3
5. Mixing type: mechanical & automatic
6. Washing: Automatic
7. Tank volume: 50 KG / tank. Both Poly and ISO
8. Brand of Foam machine: GREAT WALL.
