Garage Doors Panel Shutter Door Roll Forming Machine Automatic Feeder
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE;ISO9001 |
| Model Number | LB-250-400-600 |
| Minimum Order Quantity | 1 set |
| Price | USD50000~USD600000 |
| Packaging Details | water proof |
| Delivery Time | 180 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1 Per six month |
Product Details
| Customized Pattern | Continuous With Adjusting Width Production | ||
|---|---|---|---|
| High Light | rolling shutter making machine,roller shutter door machine |
||
Product Description

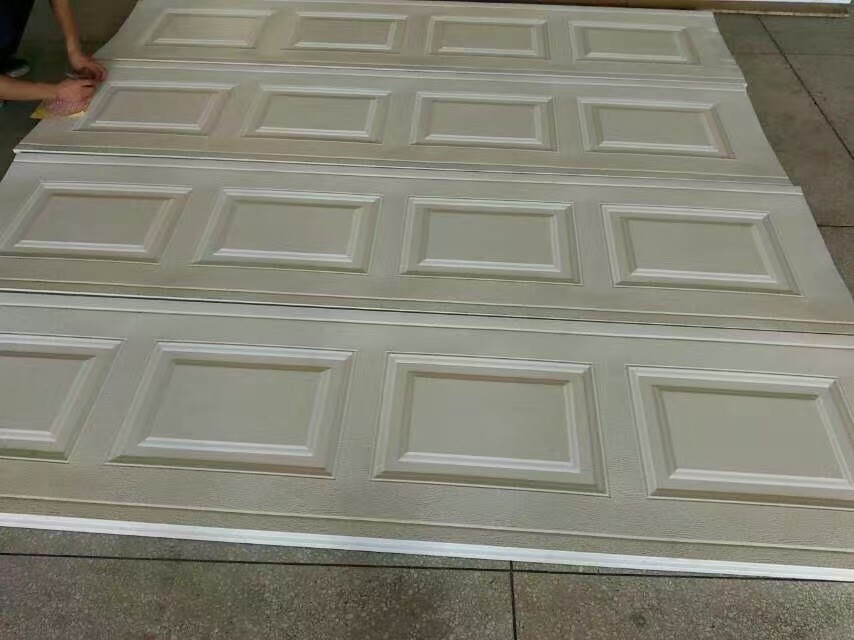

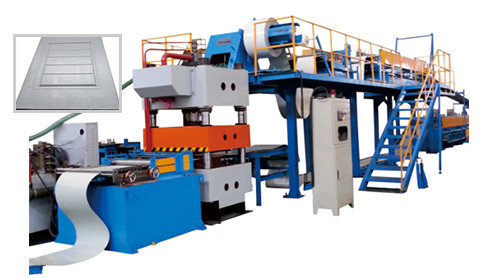

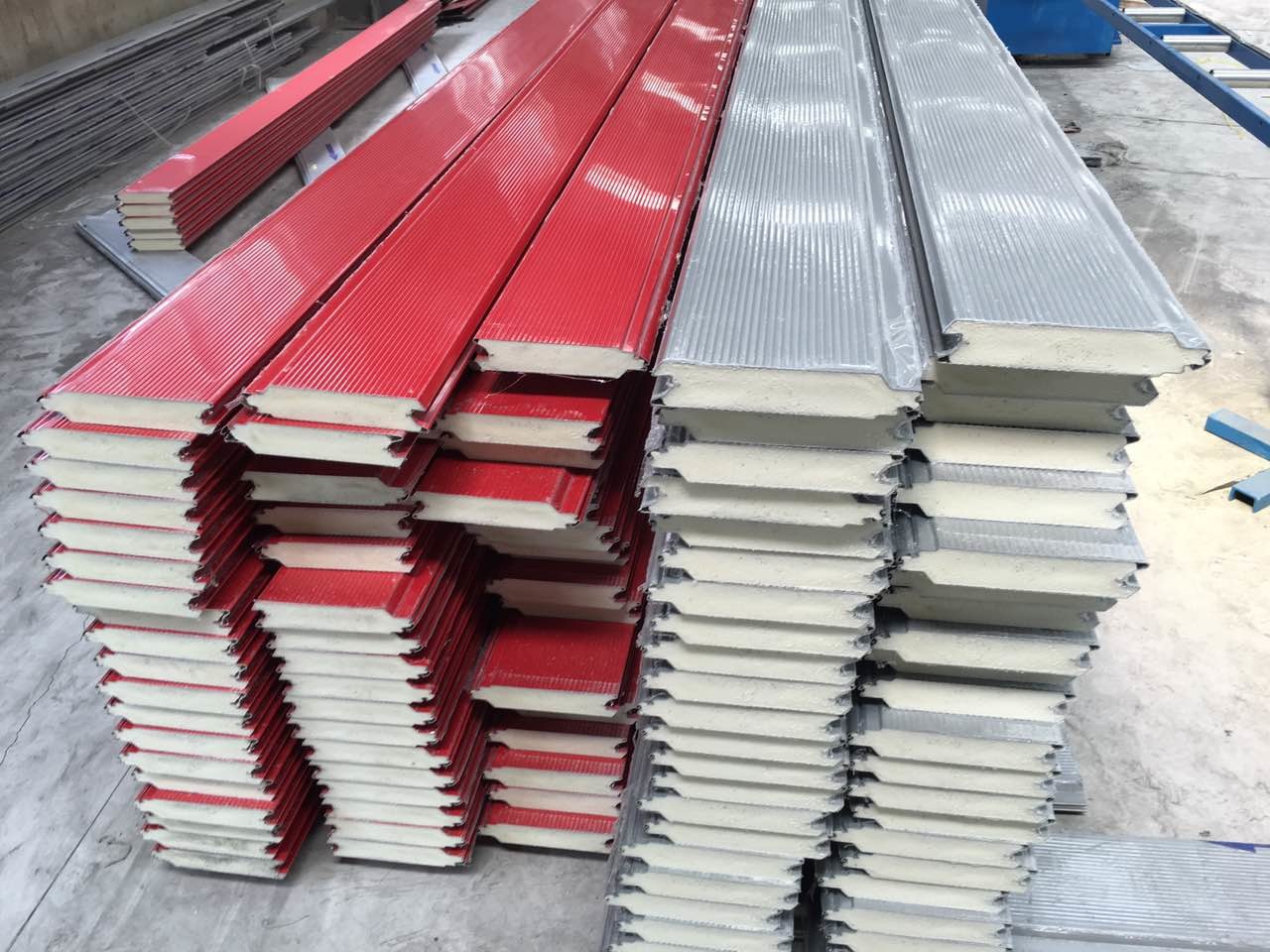

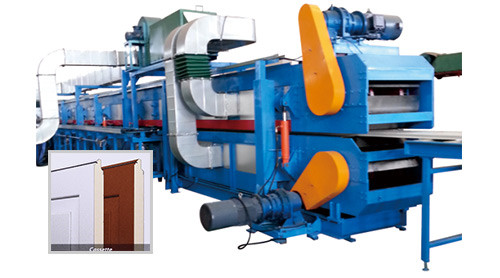

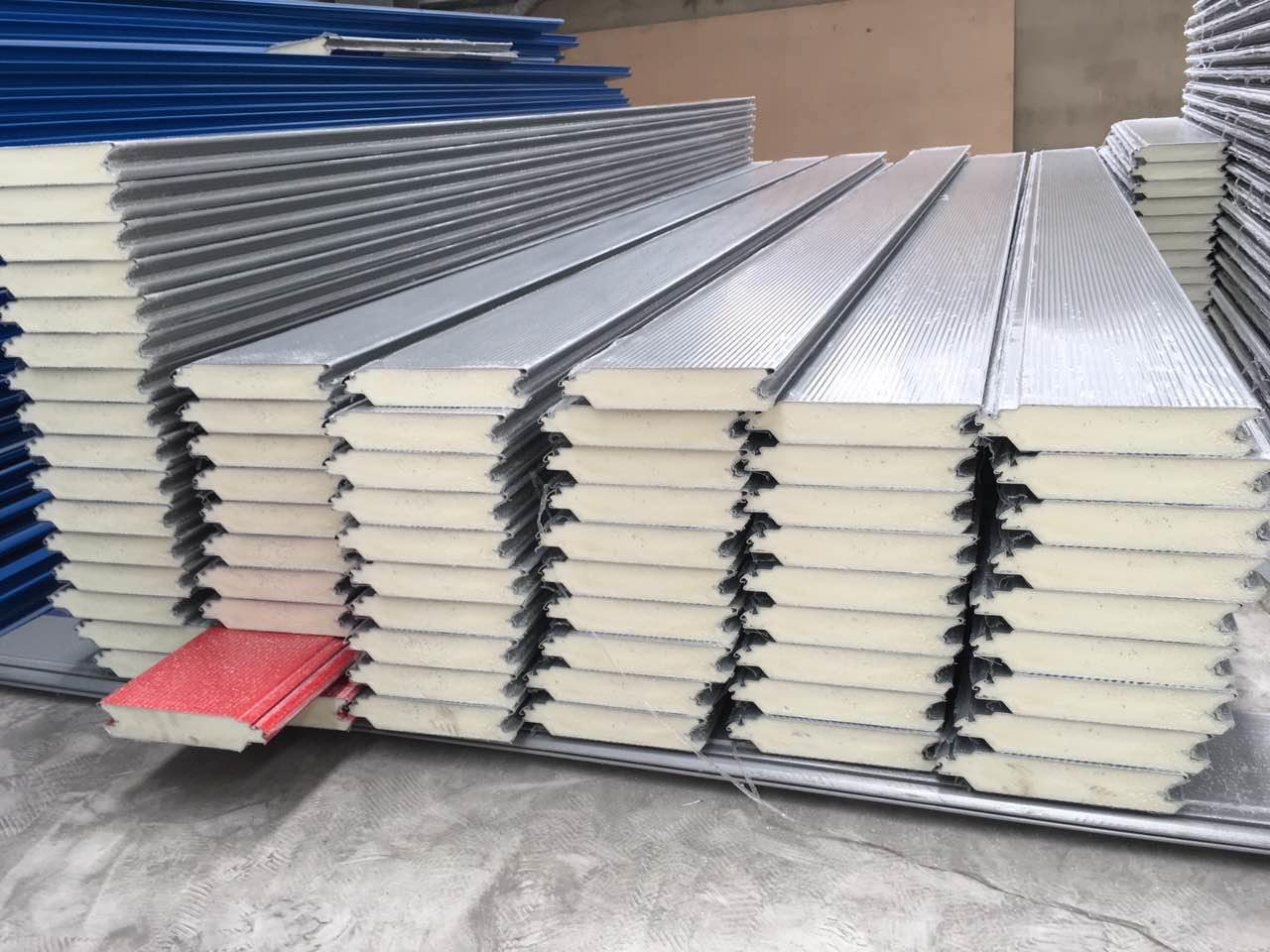

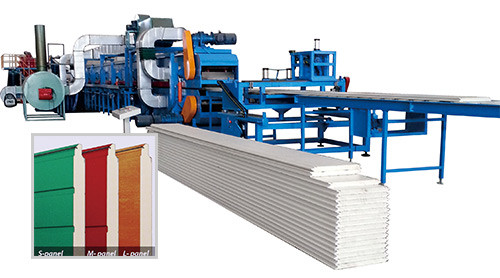

garage doors panel forming machine

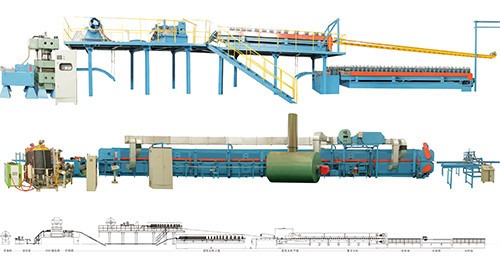

90 meters total length
Main component of the line:
| NO. | name | quantity |
| Main roll former | ||
| 1 | Un-coiler (5 tons ) | 2 |
| 2 | Embossing and firm machine | 2 |
| 3 | Automatic feeder and leveler (N.C) | 1 |
| 4 | Press machine(200ton) | 1 |
| 5 | Square mould | 1 |
| 6 | Upper roll former | 1 |
| 7 | Mark machine (N.C) | 1 |
| 8 | Down panel roll former | 2(two types) |
| 9 | Double layer construction platform | 1 |
| 10 | Double bridge device and conveyor | 1 |
| 11 | Other conveyor | 1 |
| 12 | Hydraulic system | 1 |
| 13 | Electrical control system | 1 |
| 2. PRE-HEATING SYSTEM | ||
| 1 | Heating house | 1 |
| 2 | pre-heating system | 1 |
| 3 | electrical control system | 1 |
| 3.HIGH PRESSURE FOAM MACHINE | ||
| 1 | High pressure continuous foam machine | 1 |
| 2 | Pursing output device | 1 |
| 3 | Electrical control system | 1 |
| NO. | Name | Quantity |
| 4. DOUBLE BELT SYSTEM | ||
| 1 | Double belts system(24M) | 1 |
| 2 | Chain supporting system of two side | 1 |
| 3 | Side-chain system | 1 |
| 4 | Heating machine for double belts | 1 |
| 5 | Electrical control system | 1 |
| 5. Thickness and plastic mould | ||
| 1 | Mould & Plastic mould blade | 1 |
| 6. CUTTING SYSTEM | ||
| 1 | Cutting saw blade | 1 |
| 2 | Conveyor with output table | 1 |
| 3 | Electrical control system | 1 |
Main Technical Data
Panel Data
Facing layersmaterial: steel
Thickness to be specified
Panel type:Garage door panel
Dimensions of the final product
widthmin: 400mm
max: 600mm
Thicknessmin: 40mm
max: 60mm
Double belt length: 24m
Plant speed: max.10m/min.
min.2, 5m/min
Typical production range 4-6m/min
(Depending on foam system and cutting time)
Working height: 1.300mm
Height of production building:approx. 6m
Electrical Control System:
Temperature of production building: 15 - 35°C
Operating voltage: 380V
Operating frequency: 50Hz
control voltage: 220V
valve voltage: 24V
Signal voltage: 24V
PLC brand: Delta
| NO. | ITEM | UNIT | PARAMETERS | REMARK | |
| 1 | PANEL MATERIAL | TYPES | Pre-painted steel; Aluminum; Platinum | CUSTOMIZED | |
| Hardness | MPa |
≤350
|
|||
| Thickness | mm | 0.4-0.8 | |||
| Coil width | mm | ≤1250 | |||
| Coil ID | mm | 500.600 | |||
| Coil Weight | T | 5.8.10 | |||
| 2 | FOAM MATERIAL | EPS POLYURETHANE | CUSTOMIZED | ||
| 3 |
|
m | 3-15 | ||
| 4 | Length of sandwich panel: | mm | ≤1050 | CUSTOMIZED | |
| 4 | Length of sandwich panel: | mm | ≤200 | CUSTOMIZED | |
| 5 | SPEED OF OUTPUT | m/min | 3-7 | ||
| 6 | PRESSURE OF FOAM INJECTION | bar | 150-200 | ||
| 7 |
|
m | 21 | CUSTOMIZED | |
| 8 | Controller | PLC INVERTER | |||
| 9 | Total Power | Kw | 300 | ||
| 10 | Overall dimensions | m | 110x15x5 | ||
