Bottom Profile Shutter Door Roll Forming Machine With 2.0mm Thickness

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-180
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 60 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Material Galvanized Steel And Color Steel Coated Forming Staton 16 Station
Material Of Rollers SKD11 Or Cr15 Hardness Of Rollers HRC58~62 Degree
Guarantee 5 Years Specification One Machine Produce Both Sizes Of Bottom Profile
Ball Bearing SKF Or FAG Origin
High Light

rolling shutter making machine

,

metal forming equipment
Leave a Message
Product Description

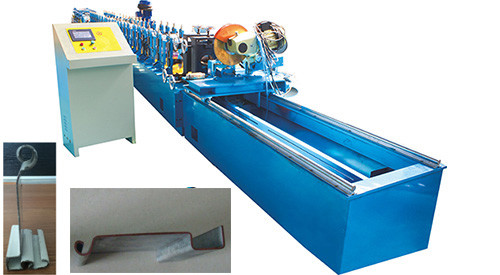

Bottom profile forming machine for rolling shutters doors with 2.0mm thickness



Main component of the line:

NO. name quantity
1 Un-coiler (2 tons ) MANUAL 1
2 roll former 1
3 Hydraulic cutter 1
4 PLC control cabinet 1
5 Output table with rollers(6 meters) 1



TECHNICAL DETAILS

Un-coiler



1. Capacity: 2 tons

2. Material: #45 steel quenched

3. Inner diameter: 410~ 580mm

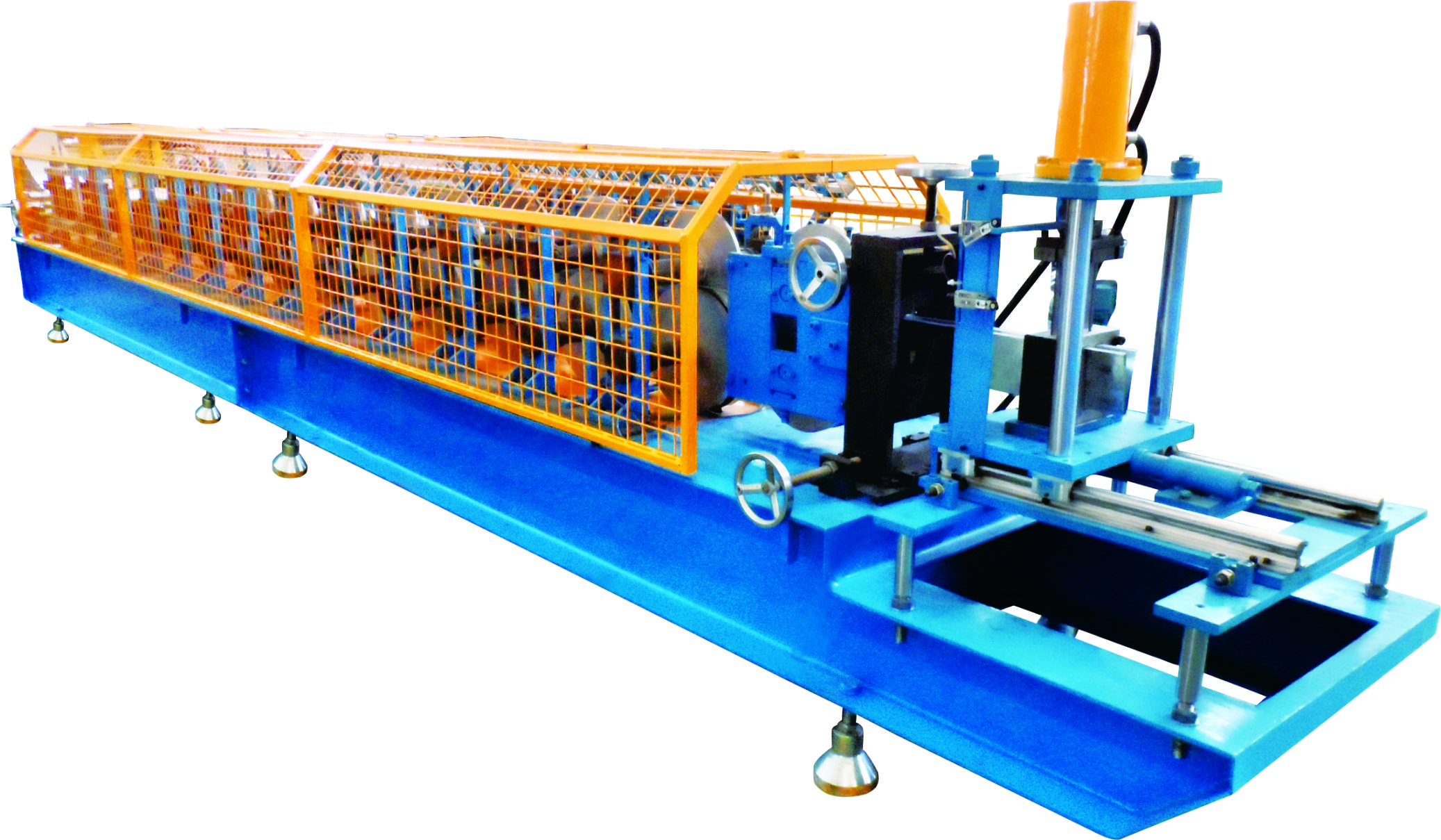

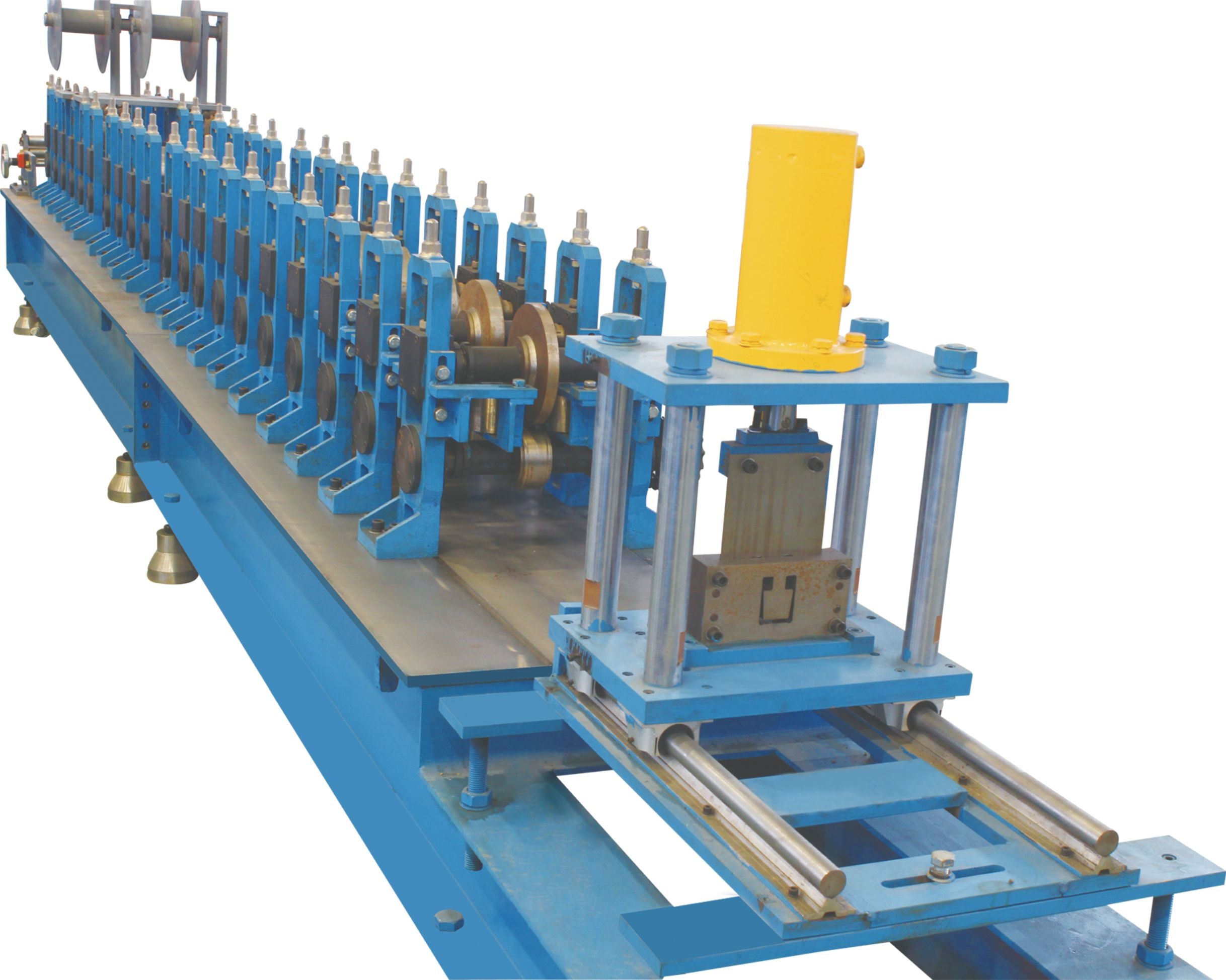

Main roll former

1. Stations: 20

2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON,800 MPA

3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA

4. Bearing brand: FAG Germany

5. Main Motor: 5.5 KW, 380V, 50HZ



CHAMICAL COMPOSITION:

  C SI MN P S CR NI CU MO AI V B
Shaft 0.450 0.220 0.540 0.027 0.008 0.050 0.020 0.010 0.000 0.009 0.000 0
Rollers 1.00 0.32 0.33 0.011 0.003 1.49 0.05 0.00 0.02 0.041
Cutter 1.57 0.34 0.38 0.022 0.010 11.10 0.18 0.14 0.48
Cut knife 2.04 0.23 0.23 0.020 0.010 11.66 0.12 0.06

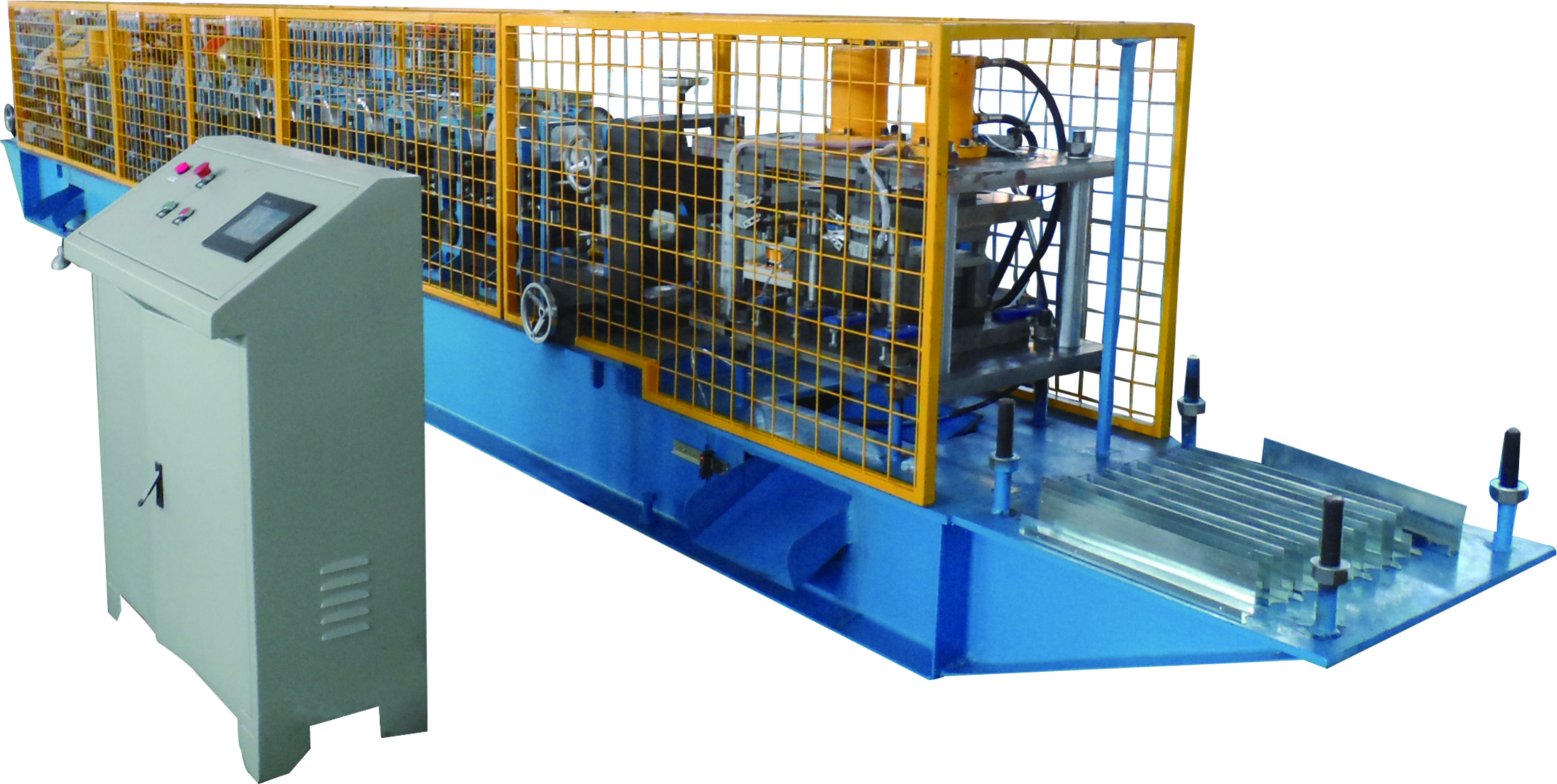

PLC Control Cabinet:

1. Touch screen brand: Delta

2. PLC brand: Delta

3. Inverter brand: Delta

4. Main components for low pressure electricity: Schneider Germany



Output table

1. Length: 6 meters

2. Drive type: Rollers

CUTTING PLATFORM

1. Cutting type: Hydraulic cutter

2. Motor: 4KW; 380V; 50HZ

3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950

Bottom shutters profile forming machine

Bottom Profile Shutter Door Roll Forming Machine With 2.0mm Thickness 0

Bottom Profile Shutter Door Roll Forming Machine With 2.0mm Thickness 1

Main Technical Data

Bottom Profile Shutter Door Roll Forming Machine With 2.0mm Thickness 2
