Automatic Doors Rolling Shutter Strip Making Machine / Metal Forming Equipment

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE;ISO9001;
Model Number LB-75
Minimum Order Quantity 1 set
Price USD15000
Packaging Details water proof
Delivery Time 50 days
Supply Ability 6 per month
Product Details
Customized Pattern Fully Automatic Production Line
High Light

metal forming equipment

,

roller shutter door machine
Leave a Message
Product Description

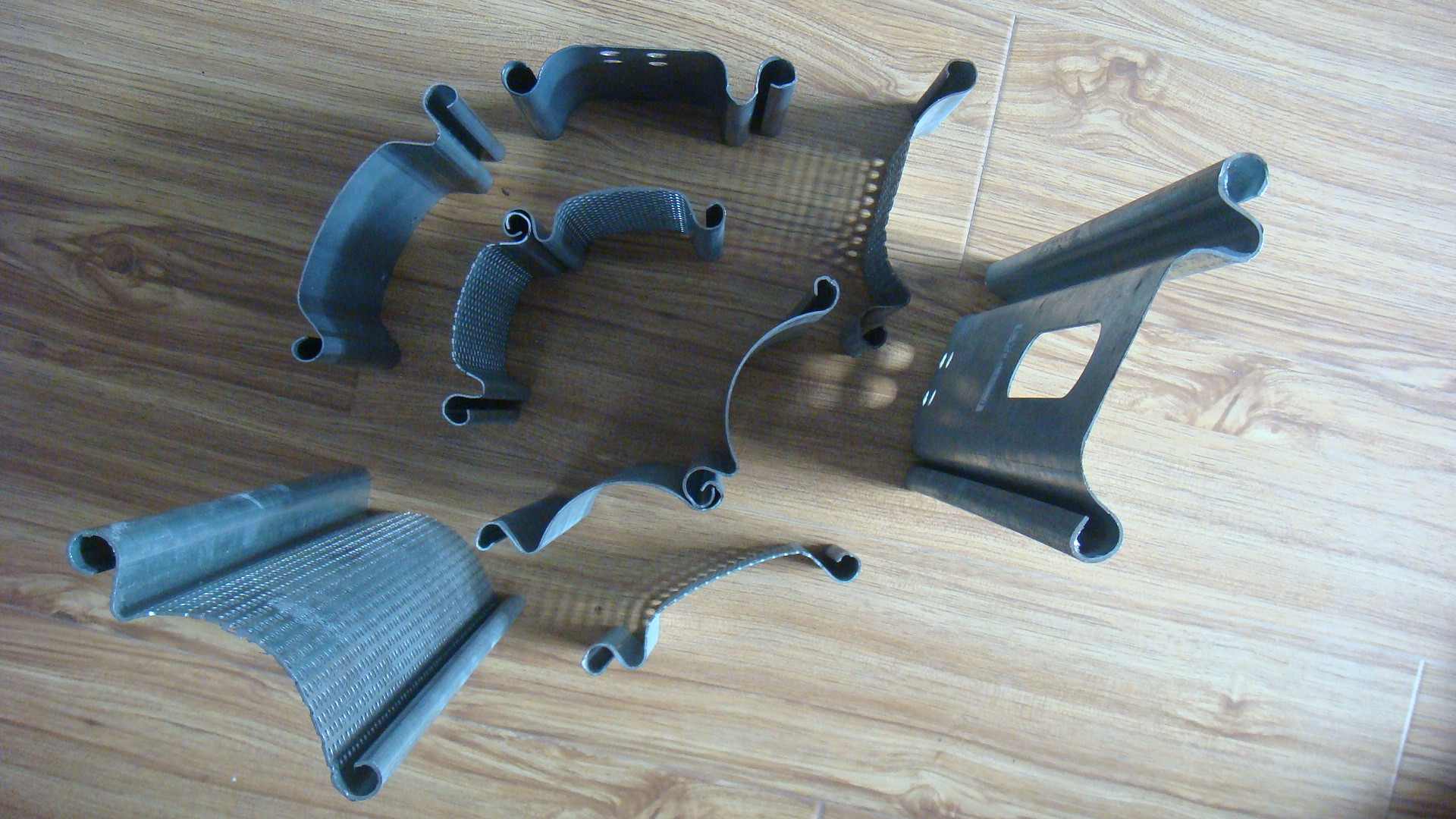

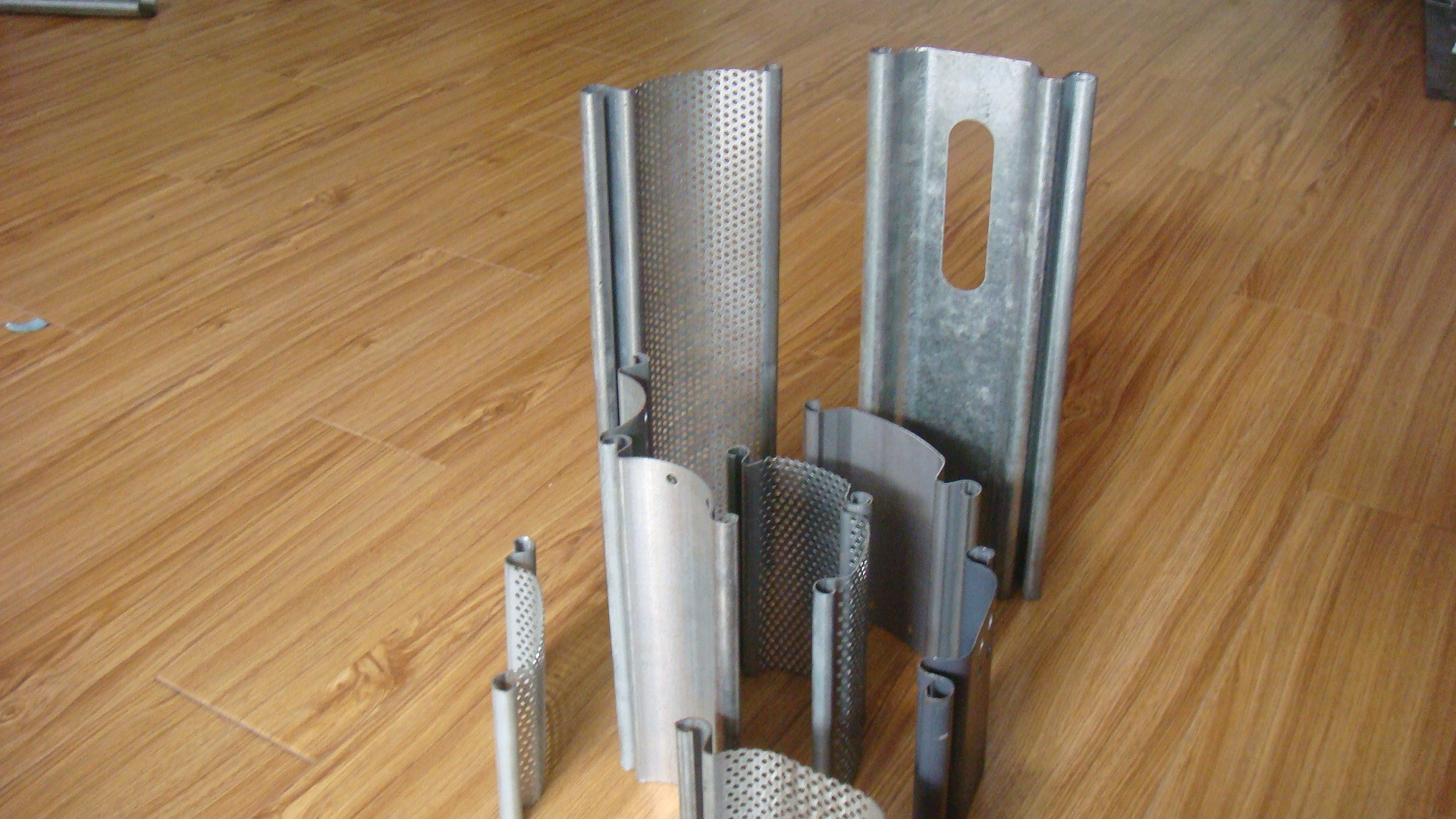

Rolling doors forming machine
Automatic Doors Rolling Shutter Strip Making Machine / Metal Forming Equipment 0

Un-coiler --Pneumatic feeder -- Micro perforation -- Re-coiler

1 Un-coiler (automatic) 2 tons 1
2 Mechanical press machine 1
3 Pneumatic feeder 1
4 Re-coiler (automatic) 1
5 Perforated mould 1

Automatic Doors Rolling Shutter Strip Making Machine / Metal Forming Equipment 1

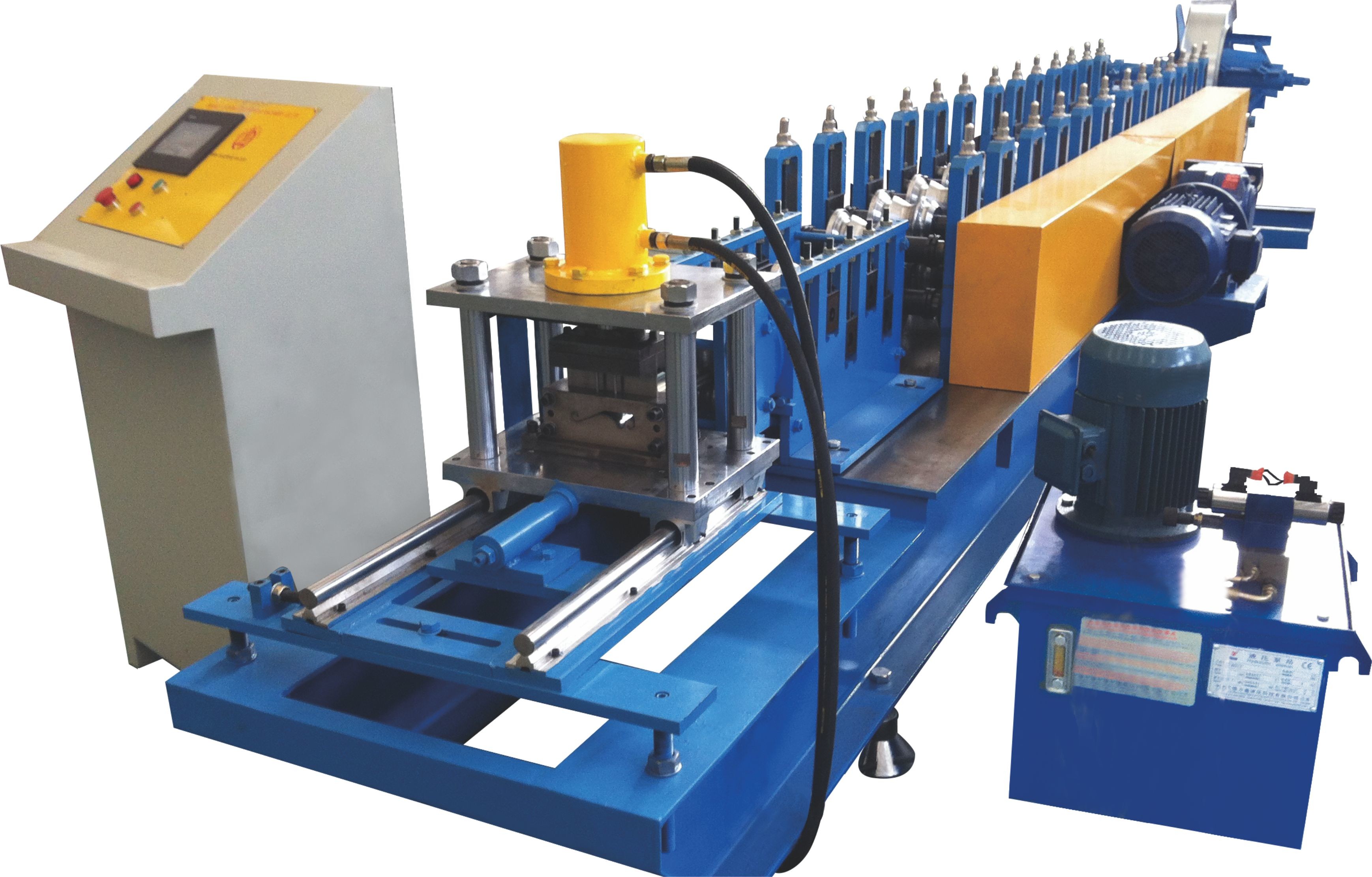

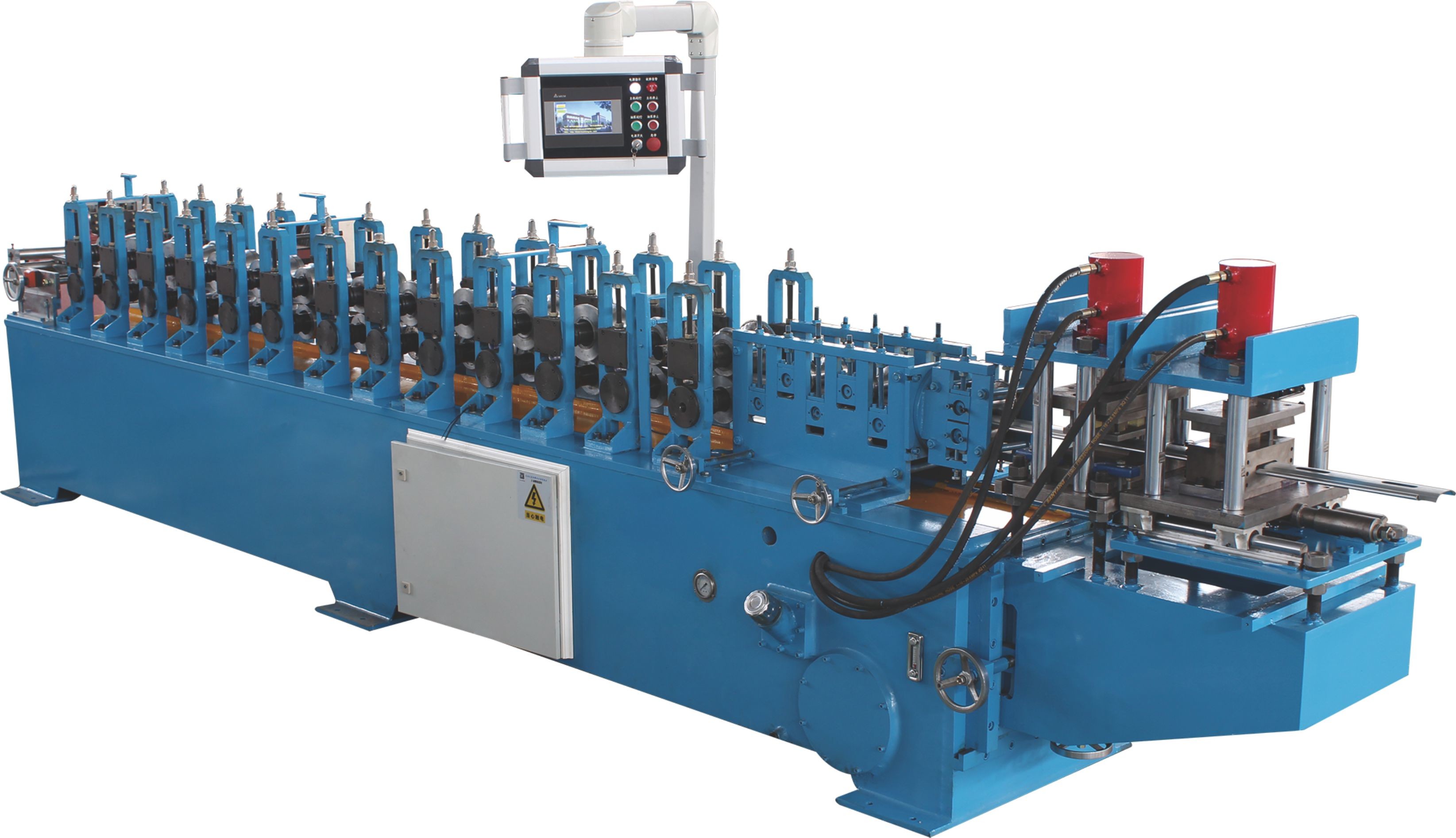

Main component of the line:
NO. name quantity
Main roll former
1 Un-coiler (2 tons ) MANUAL 1
2 roll former 1
3 Hydraulic cutter 1
4 PLC control cabinet 1
5 Output table with rollers(6 meters) 1



TECHNICAL DETAILS

Un-coiler

1. Capacity: 2 tons

2. Material: #45 steel quenched

3. Inner diameter: 410~ 580mm

Main roll former

1. Stations: 13

2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON, 800 MPA

3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA

4. Bearing brand: FAG Germany

5. Main Motor: 5.5 KW, 380V, 50HZ

CHAMICAL COMPOSITION:

  C SI MN P S CR NI CU MO AI V B
Shaft 0.450 0.220 0.540 0.027 0.008 0.050 0.020 0.010 0.000 0.009 0.000 0
Rollers 1.00 0.32 0.33 0.011 0.003 1.49 0.05 0.00 0.02 0.041
Cutter 1.57 0.34 0.38 0.022 0.010 11.10 0.18 0.14 0.48
Cut knife 2.04 0.23 0.23 0.020 0.010 11.66 0.12 0.06

PLC Control Cabinet:

1. Touch screen brand: DELTA

2. PLC brand: DELTA

3. Inverter brand: DELTA

4. Main components for low pressure electricity: Schneider Germany

5. Encoder: Omron

Output table

1. Length: 6 meters

2. Drive type: Rollers

CUTTING PLATFORM

1. Cutting type: Hydraulic system

2. Motor: 4KW; 380V; 50HZ

3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950
