Automatic 55mm Slat Shutter Door Roll Forming Machine PLC System

  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE;ISO9001
Model Number LB-55
Minimum Order Quantity 1 set
Price USD55000
Packaging Details water proof
Delivery Time 60 days
Supply Ability 2 per month
Product Details
Automatic Punching CE Certification
High Light

metal forming equipment

,

roller shutter door machine
Leave a Message
Product Description

55mm shutters slat forming machine



Windows & doors foam insulated shutters slat machine parameters:

Model (for windows): 37mm; 39mm; 42mm; 45mm (flat);55 mm

Model (for doors): 77mm; 90mm; 95mm; 98mm; 100mm

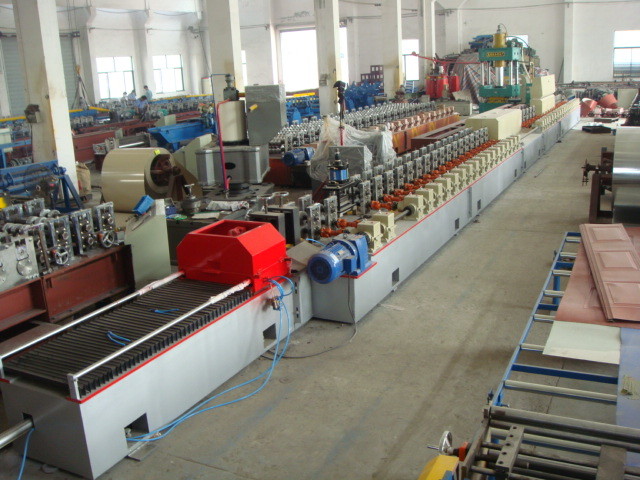

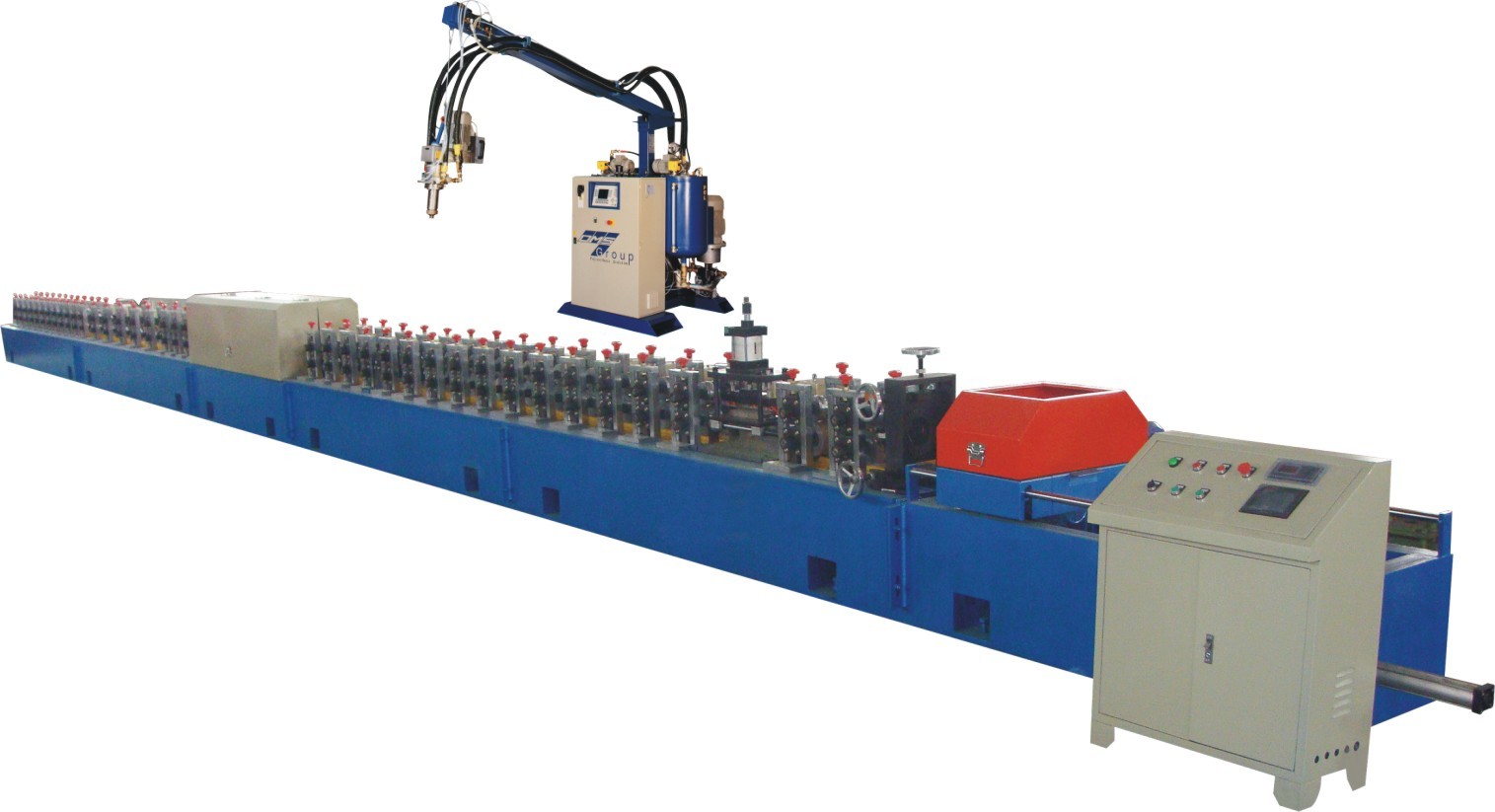

COMPLETE LINE LAYOUT

Double head un-coiler ----- feeder guide --- roll forming –Heating device-- --PU Injection -roll forming – keep heating box --- ---- Pneumatic punching hole ------PLC control --- Flying saw cutting unit --- 6 meters roller run out table

Automatic 55mm Slat Shutter Door Roll Forming Machine PLC System 0


COMPONENT OF COMPLETE LINE:

① Double head un-coiler: 2 tons capacity manual one/unit

② Main frame of forming machine one/unit

④ Straighten part one / unit

⑤ Pneumatic flying saw cutting machine one / unit

⑥ Simple roller stacker 6 meters one/unit

⑦ PLC system: One/unit

8. PU Foam injection machine: One/ set

Automatic 55mm Slat Shutter Door Roll Forming Machine PLC System 1

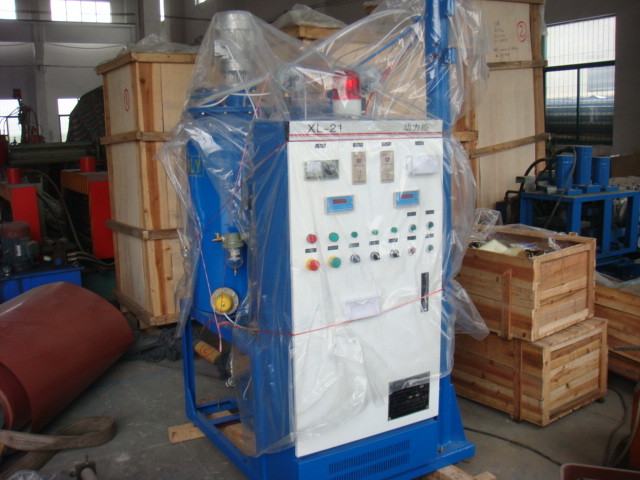

Specification for Foam machine:



1. Motor power: total 5.5 KW; 380V; 50/60HZ China brand

2. Mixing head with one spare is included

3. Mixing pump quantity: 8g/Second

4. Density: 70~80 Kg/m3

5. Mixing type: mechanical & automatic

6. Washing: Automatic

7. Tank volume: 50 KG / tank. Both Poly and ISO

8. Brand of Foam machine: GREAT WALL.
