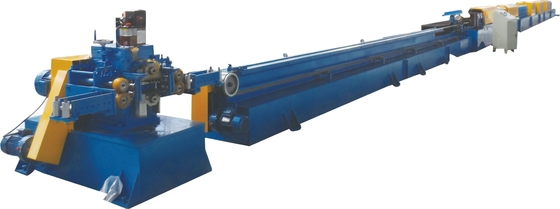

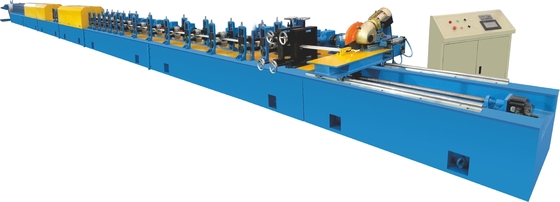

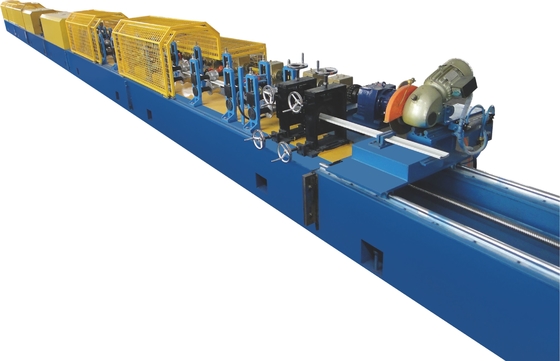

Galvanized Steel Shutter Roll Forming Machine With PU Foam Insulated 0.3~0.5mm Thickness

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-39-42-55-77
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 90 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Material Galvanized Steel And Aluminum Material Thickness 0.23~0.5mm
Forming Speed 15~30m/min Rollers Material SKD11 And Cr15
Forming Station 37~41 Station Guarantee 5 Years
High Light

rolling shutter making machine

,

roller shutter door machine
Leave a Message
Product Description

Rolling shutters with PU foam insulated 0.3~0.5mm thickness



A). Main Specifications

  • Material thickness: 0.23-0.5mm
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 2 Ton
  • Main Motor Power: 7.5 KW
  • Forming Station: approx 37( depend on profile drawing )
  • Material of Roller: SKD11 or Cr15, Polished and coated with 0.05mm Chrome Surface.
  • Main Axis Material: High grade 45#, quenched and heat treatment.
  • Axis Diameter: ¢ 50mm
  • Working Speed: 15-30 m/min
  • Transporting Type: Gear box with universal joint
  • Heat Treatment of Cutting Blade: HRC 58-62
  • Machine Frame stand: Welded structural steel
  • Thickmess of Fame Steel: 20mm
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 16 Ton

B). Main Components


1. Decoiler -------------------------------------------- 1 Unit

2. Feeding guide -------------------------------------- 1 Unit

3. main roll forming machine ------------------------ 1 Unit

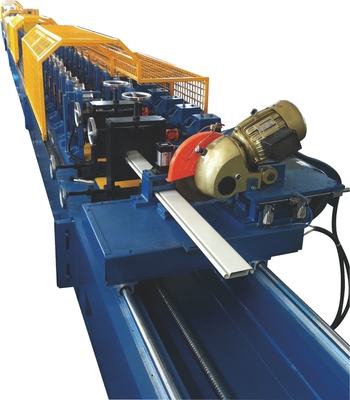

4. Flying saw cutting device --------------------------- 1 Unit

5. Pneumatic punching system ----------------------------------- 1 Unit

6. PLC computer control ------------------------------ 1 Unit

7. Output table ---------------------------------------- 1 Unit

8. PU foam machine----------------------------------1 unit







C). Working Flow


Decoiler --- Feeding Guide --- Roll Forming --- PU injection------Punching holes -----Cut-to-length --- Run out table



D). Applications



Windows and doors





E). Competitive Advantages



1. Durable and widely used products

2. Simple to operate when assemble

3. Easy to handle the products

4. Direct manufacturer, provide with high quality and best price.

5. Provide sample in free.

6. Products and design solution supplied fast and freely

7. Best design oriented for your special requirements

8. Lifelong technical support

9. Professional team support



Galvanized Steel Shutter Roll Forming Machine With PU Foam Insulated 0.3~0.5mm Thickness 0

Galvanized Steel Shutter Roll Forming Machine With PU Foam Insulated 0.3~0.5mm Thickness 1
