0.3~0.5mm Thickness Of PU Foam Filled Shutter Door Roll Forming Machine With 5 Years Guarantee

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-39-55-77-90
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 90 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Material Galvanized Steel And Aluminum Material Thickness 0.23~0.5mm Color Coated
Forming Speed 15~30m/min Guarantee 5 Years
Rollers Material SKD11 And Cr15 PU Machine Automatic Injection
Hardness Of Rollers HRC58~62 Degree
High Light

rolling shutter making machine

,

metal forming equipment
Leave a Message
Product Description





0.3~0.5mm thickness of PU foam filled rolling shutters forming machine with 5 years guarantee



Windows & doors foam insulated shutters slat machine parameters:

Model (for windows): 37mm; 39mm; 42mm; 45mm (flat);55 mm

Model (for doors): 77mm; 90mm; 95mm; 98mm; 100mm



COMPLETE LINE LAYOUT

Double head un-coiler ----- feeder guide --- roll forming –Heating device-- --PU Injection -roll forming – keep heating box --- ---- Pneumatic punching hole ------PLC control --- Flying saw cutting unit --- 6 meters roller run out table

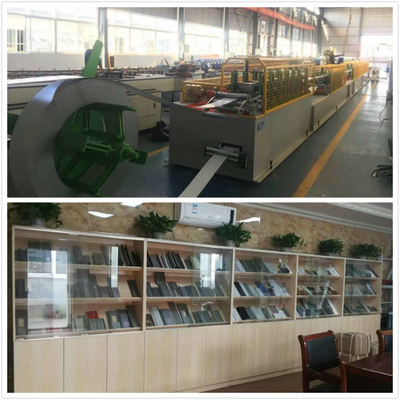

0.3~0.5mm Thickness Of PU Foam Filled Shutter Door Roll Forming Machine With 5 Years Guarantee 0


COMPONENT OF COMPLETE LINE:

①Double head un-coiler: 2 tons capacity manual one/unit

②Main frame of forming machine one/unit

④Straighten part one / unit

⑤ Pneumatic flying saw cutting machine one / unit

⑥ Simple roller stacker 6 meters one/unit

⑦ PLC system: One/unit

8. PU Foam injection machine: One/ set

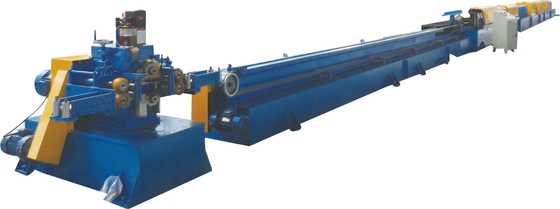

0.3~0.5mm Thickness Of PU Foam Filled Shutter Door Roll Forming Machine With 5 Years Guarantee 1

Specification for Foam machine:

1. Motor power: total 5.5 KW; 380V; 50/60HZ China brand

2. Mixing head with one spare is included

3. Mixing pump quantity: 8g/Second

4. Density: 70~80 Kg/m3

5. Mixing type: mechanical & automatic

6. Washing: Automatic

7. Tank volume: 50 KG / tank. Both Poly and ISO

8. Brand of Foam machine: GREAT WALL.

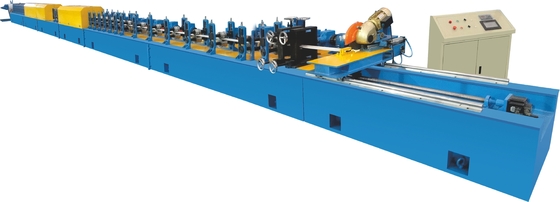

0.3~0.5mm Thickness Of PU Foam Filled Shutter Door Roll Forming Machine With 5 Years Guarantee 2

0.3~0.5mm Thickness Of PU Foam Filled Shutter Door Roll Forming Machine With 5 Years Guarantee 3
