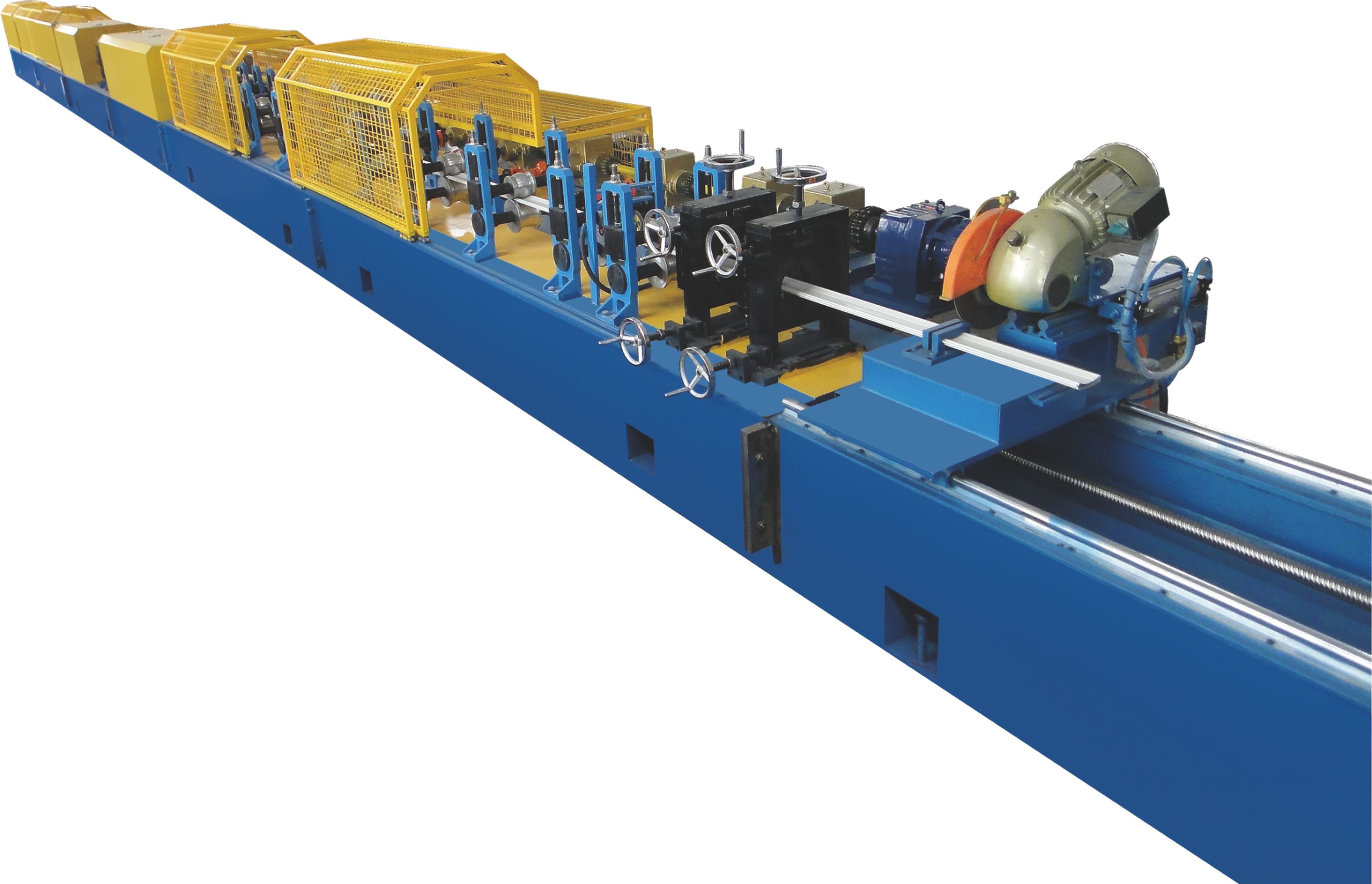

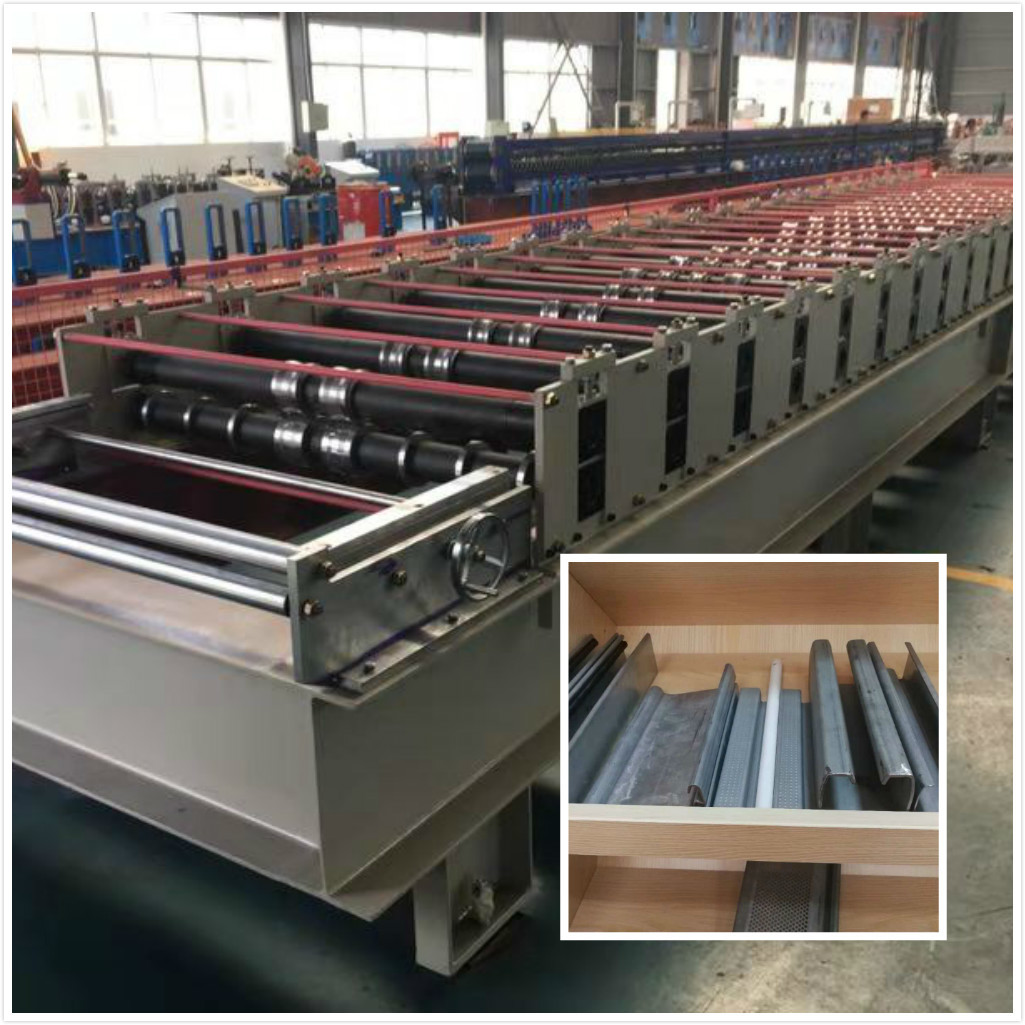

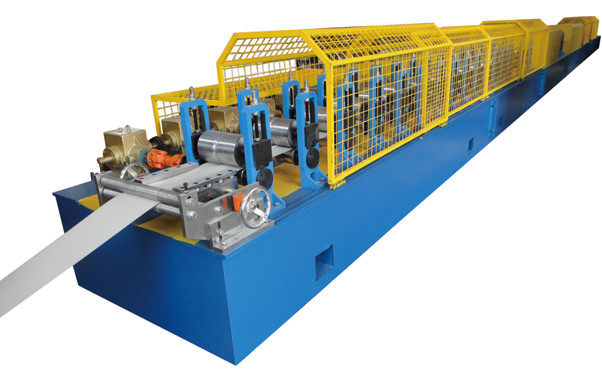

Insulated Rolling Shutter Making Machine With Double Head Uncoiler

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-55-77
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 90 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Material Aluminum And Galvanized Steel Material Thickness 0.3~0.5mm
Material Of Rollers SKD11 Or Cr15 Working Speed 15~20m/min
Hardness Of Rollers HRC58~62 Degree Guarantee 5 Years
Color To Be Customized After Sales Service Send Technician To Buyer's Factory In Time
High Light

rolling shutter making machine

,

metal forming equipment
Leave a Message
Product Description



insulated rolling shutters machines



  • Insulated Rolling Shutter Making Machine With Double Head Uncoiler 0
  • Insulated Rolling Shutter Making Machine With Double Head Uncoiler 1
  • Insulated Rolling Shutter Making Machine With Double Head Uncoiler 2
  • Insulated Rolling Shutter Making Machine With Double Head Uncoiler 3
  • Insulated Rolling Shutter Making Machine With Double Head Uncoiler 4

Windows & doors foam insulated shutters slat machine parameters:

Model (for windows): 37mm; 39mm; 42mm; 45mm (flat);55 mm

Model (for doors): 77mm; 90mm; 95mm; 98mm; 100mm



COMPLETE LINE LAYOUT

Double head un-coiler ----- feeder guide --- roll forming –Heating device-- --PU Injection -roll forming – keep heating box --- ---- Pneumatic punching hole ------PLC control --- Flying saw cutting unit --- 6 meters roller run out table

Insulated Rolling Shutter Making Machine With Double Head Uncoiler 5


COMPONENT OF COMPLETE LINE:

① Double head un-coiler: 2 tons capacity manual one/unit

② Main frame of forming machine one/unit

④ Straighten part one / unit

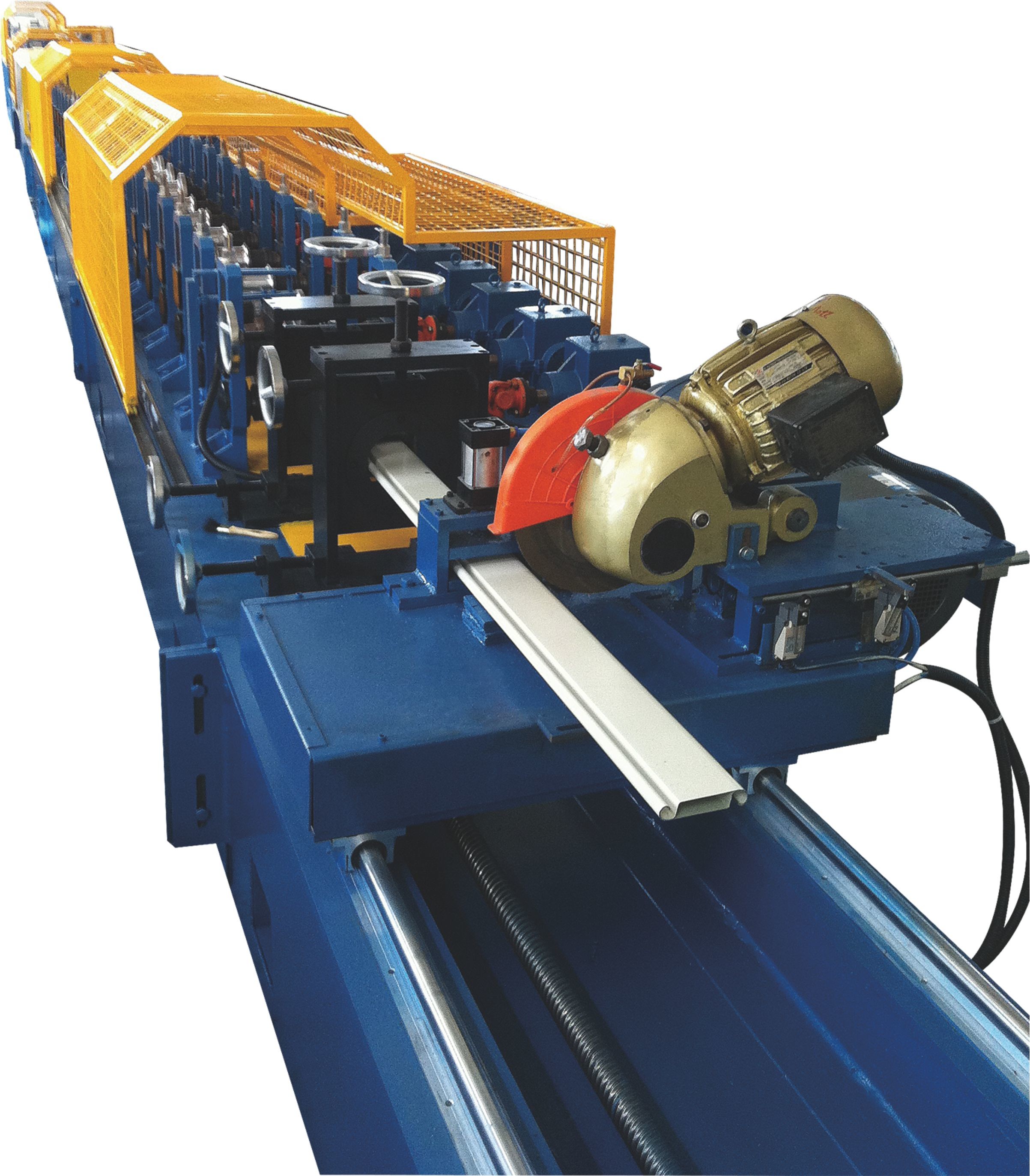

⑤ Pneumatic flying saw cutting machine one / unit

⑥ Simple roller stacker 6 meters one/unit

⑦ PLC system: One/unit

8. PU Foam injection machine: One/ set

Insulated Rolling Shutter Making Machine With Double Head Uncoiler 6

Specification for Foam machine:

1. Motor power: total 5.5 KW; 380V; 50/60HZ China brand

2. Mixing head with one spare is included

3. Mixing pump quantity: 8g/Second

4. Density: 70~80 Kg/m3

5. Mixing type: mechanical & automatic

6. Washing: Automatic

7. Tank volume: 50 KG / tank. Both Poly and ISO

8. Brand of Foam machine: GREAT WALL.

Insulated Rolling Shutter Making Machine With Double Head Uncoiler 7
