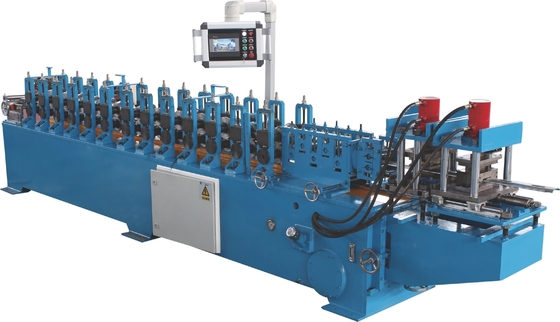

0.7~1.2mm Thickness Roller Shutter Door Roll Forming Machine With Perforation System

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-100-75
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 60 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Material Galvanized Steel And Stainless Steel Material Of Rollers SKD11 Or CR15
Hardness Of Rollers HRC58~62 Degree Forming Stations 13 Stations
Guarantee 5 Years Color To Be Customized
Perforation Automatically
High Light

metal forming equipment

,

roller shutter door machine
Leave a Message
Product Description
0.7~1.2mm thickness of rolling doors forming machine with perforation system

in component of the line:
NO. name quantity
Main roll former
1 Un-coiler (2 tons ) MANUAL 1
2 roll former 1
3 Hydraulic cutter 1
4 PLC control cabinet 1
5 Output table with rollers(6 meters) 1



TECHNICAL DETAILS

Un-coiler

1. Capacity: 2 tons

2. Material: #45 steel quenched

3. Inner diameter: 410~ 580mm

Main roll former

1. Stations: 13

2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON, 800 MPA

3. Shaft material: Diameter: 50mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA

4. Bearing brand: FAG Germany

5. Main Motor: 5.5 KW, 380V, 50HZ

CHAMICAL COMPOSITION:

  C SI MN P S CR NI CU MO AI V B
Shaft 0.450 0.220 0.540 0.027 0.008 0.050 0.020 0.010 0.000 0.009 0.000 0
Rollers 1.00 0.32 0.33 0.011 0.003 1.49 0.05 0.00 0.02 0.041
Cutter 1.57 0.34 0.38 0.022 0.010 11.10 0.18 0.14 0.48
Cut knife 2.04 0.23 0.23 0.020 0.010 11.66 0.12 0.06

PLC Control Cabinet:

1. Touch screen brand: DELTA

2. PLC brand: DELTA

3. Inverter brand: DELTA

4. Main components for low pressure electricity: Schneider Germany

5. Encoder: Omron

Output table

1. Length: 6 meters

2. Drive type: Rollers

CUTTING PLATFORM

1. Cutting type: Hydraulic system

2. Motor: 4KW; 380V; 50HZ

3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950

Metal rolling shutters forming machine

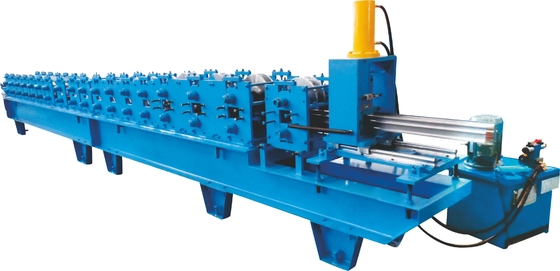

0.7~1.2mm Thickness Roller Shutter Door Roll Forming Machine With Perforation System 0

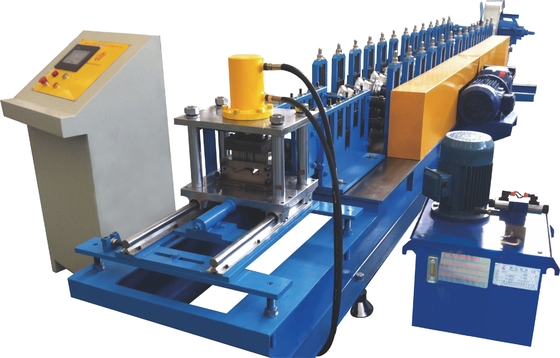

0.7~1.2mm Thickness Roller Shutter Door Roll Forming Machine With Perforation System 10.7~1.2mm Thickness Roller Shutter Door Roll Forming Machine With Perforation System 2

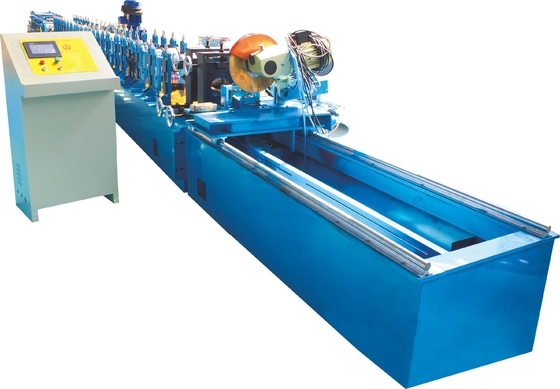

0.7~1.2mm Thickness Roller Shutter Door Roll Forming Machine With Perforation System 3

Un-coiler --Pneumatic feeder -- Micro perforation -- Re-coiler

1 Un-coiler (automatic) 2 tons 1
2 Mechanical press machine 1
3 Pneumatic feeder 1
4 Re-coiler (automatic) 1
5 Perforated mould 1
