Trapped Round Steel Pipe Making Machine With Thicnkness 0.8~1.5mm
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-40-80-600 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 60 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 3 per month |
Product Details
| Material | GI And Carbon Steel And PPGI | Rollers Material | SKD11 Or Cr15 |
|---|---|---|---|
| Guarantee | 5 Years | Hardress | HRC58~62 Degree ,Chromed |
| After Sales Service | Send Technician To Buyer's Factory Immediately When Machines Arrives | Color | To Be Customized |
| Motor Power | 15 KW, 380V, 50HZ | Welding System | Argon Welding Machine |
| High Light | downspout roll forming machine,steel pipe making machine |
||
Product Description
Trapped Round Steel Pipe Making Machine With Thicnkness 0.8~1.5mm
A). Main Specifications
- Main motor power: 15Kw
- Number of roll stand: About 20 stands
- Forming speed: 4-6m/min
- Voltage: 380 V, 3 Phase 50Hz ( or depend on customer’s requirement )
- Dimension of machine: About 12000mm*1100mm*1200mm
- Machine wight: about 12 Ton
- Material of Axis: High grade 45# steel
- Diameter of Axis: φ60mm
- Material of Roller: High grade 45#, polished and coated with 0.05mm Chrome Surface.
- Materical of Machine Frame: A3 Steel, thickness 18mm
- Electrical Control: PLC Frequency Control System with touch screen
- PLC: PANASONIC Brand
- Encoder: OMRON Brand
- Transducer: PANASONIC Brand
B). Main Components
Decoiler -------------------------------------------- 1 Unit
Feeding guide -------------------------------------- 1 Unit
main roll forming machine ------------------------ 1 Unit
Hydraulic cutting device --------------------------- 1 Unit
Hydraulic Station ----------------------------------- 1 Unit
PLC computer control ------------------------------ 1 Unit
Output table ---------------------------------------- 1 Unit
Argon welding machine -------------------------------------- 1 Unit
C). Working Flow
Decoiler--> Coil sheet guiding and feeding --> Roll forming machine with safty guard-->Argon welding--- Tighten Device -> Cut to length --> Out-put Table
D). Applications
Rainwater downpipe, downspout, rainspout, water pipe, drainpipe, doors & windows
E). Competitive Advantages
1. Durable and widely used products
2. Simple to operate when assemble
3. Direct manufacturer, provide with high quality and best price.
4. Provide sample in free.
5. Products and design solution supplied fast and freely
6. Best design oriented for your special requirements

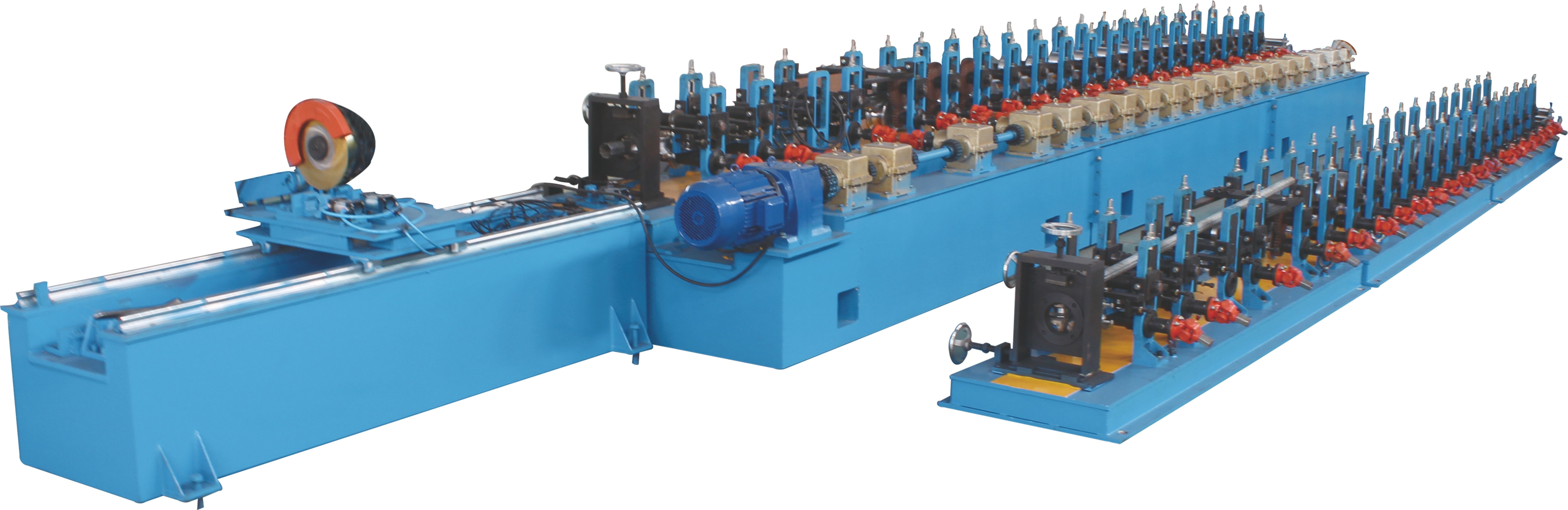

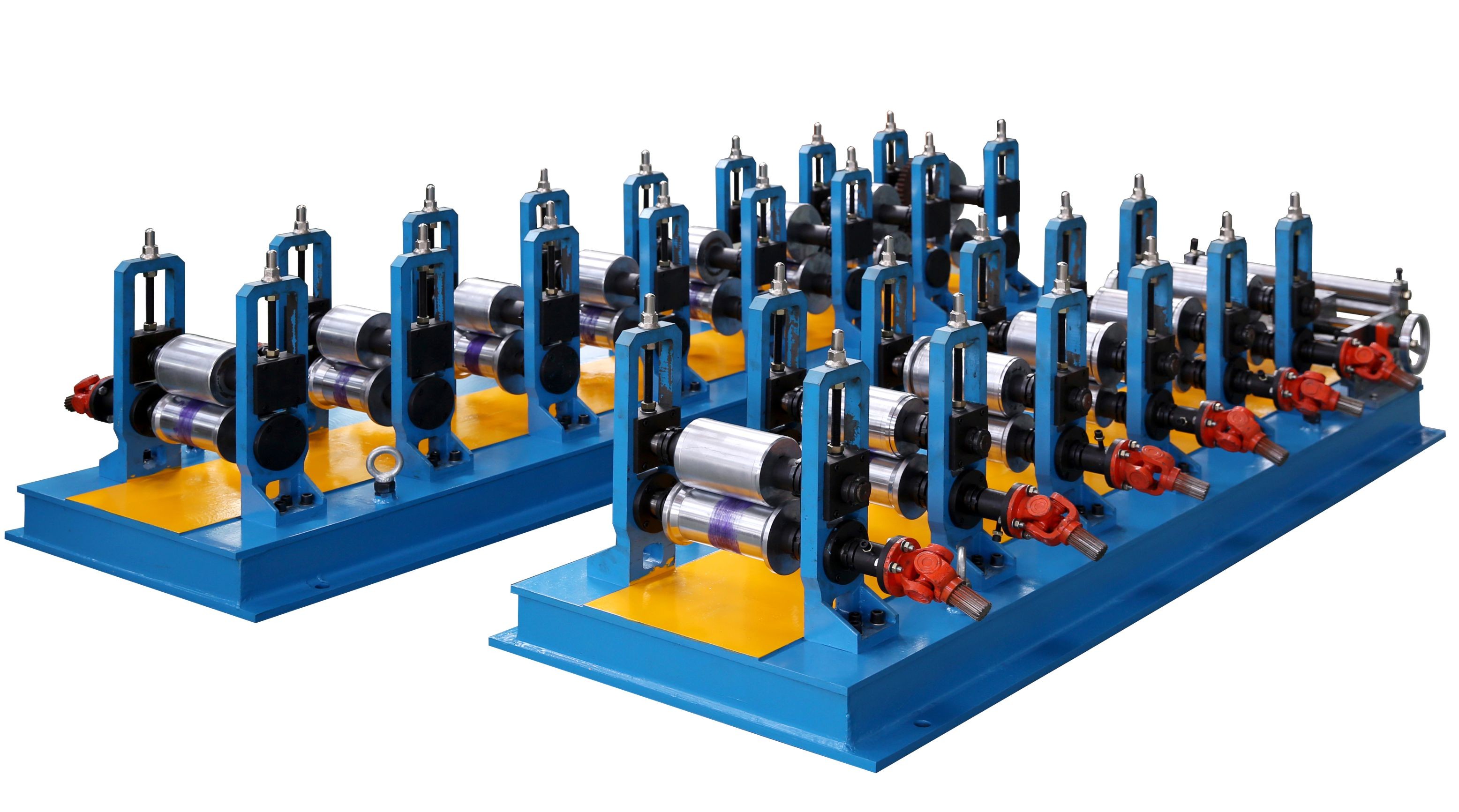

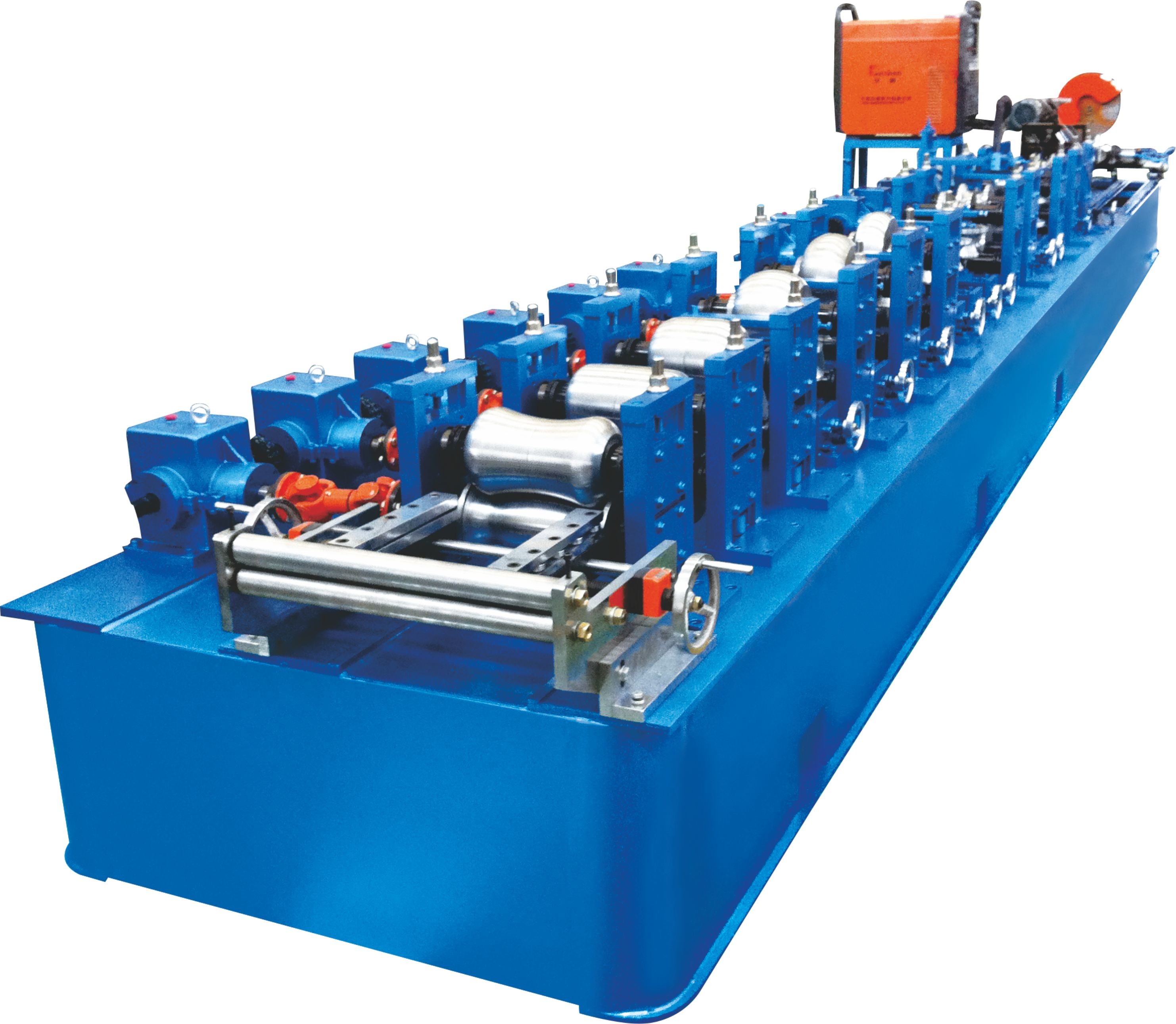

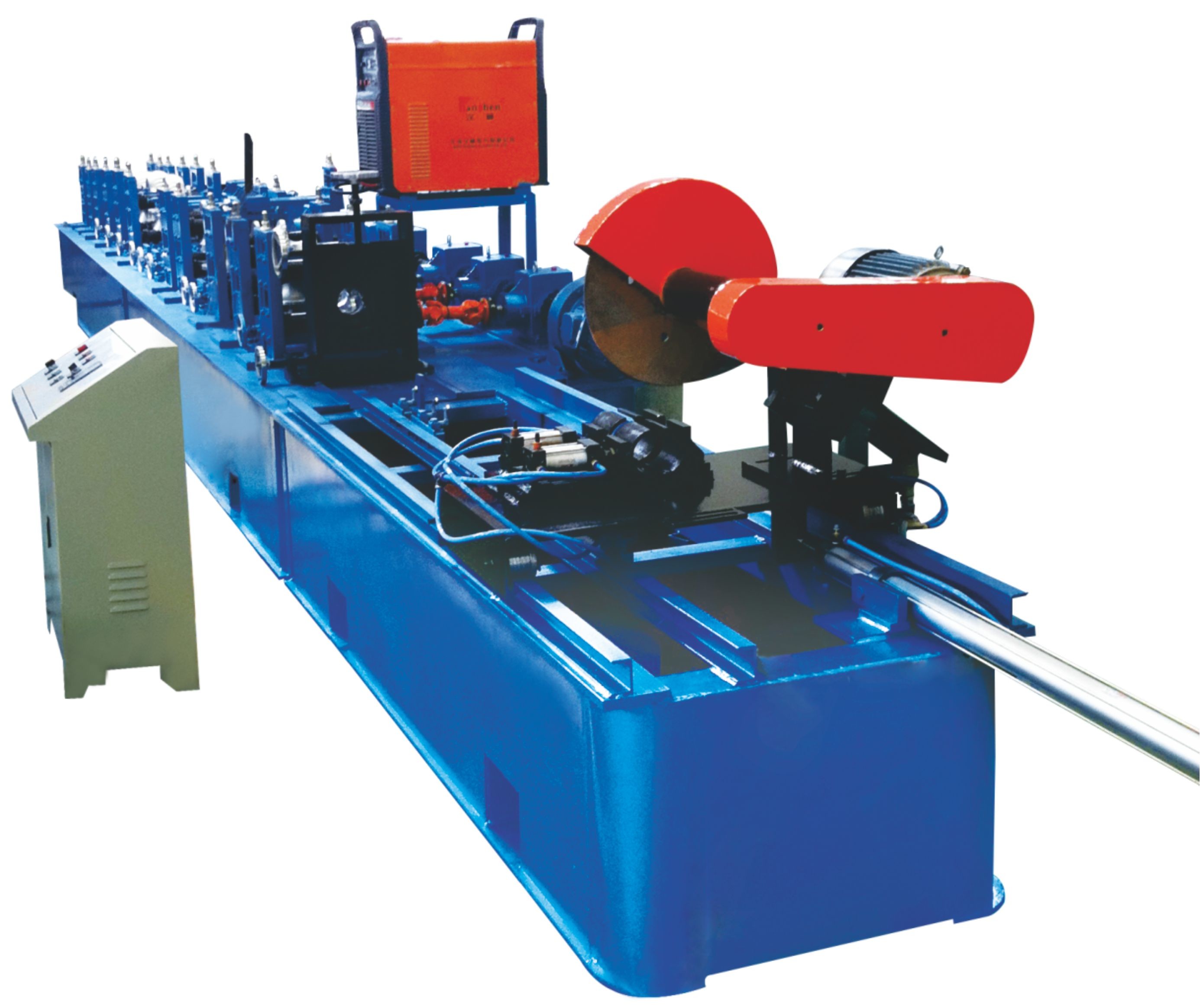

F). Machine Reference Pictures
