Awning Tube Round Pipe Roll Forming Machine For Sunshade Curtain System
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-60-70-80mm |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 90 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 3 per month |
Product Details
| Material | Galvanized Steel | Rollers Material | SKD11 Or CR15 |
|---|---|---|---|
| Hardness | HRC58~62 Degree, Chromed | Guarantee | 5 Years |
| Color | To Be Customized | Cooling System | Cooling Cintinuously |
| Forming Stations | 24 Station | Flying Saw Cutting | Flying Saw Cutting With Servo System |
| High Light | tube roll forming machine,steel pipe making machine |
||
Product Description

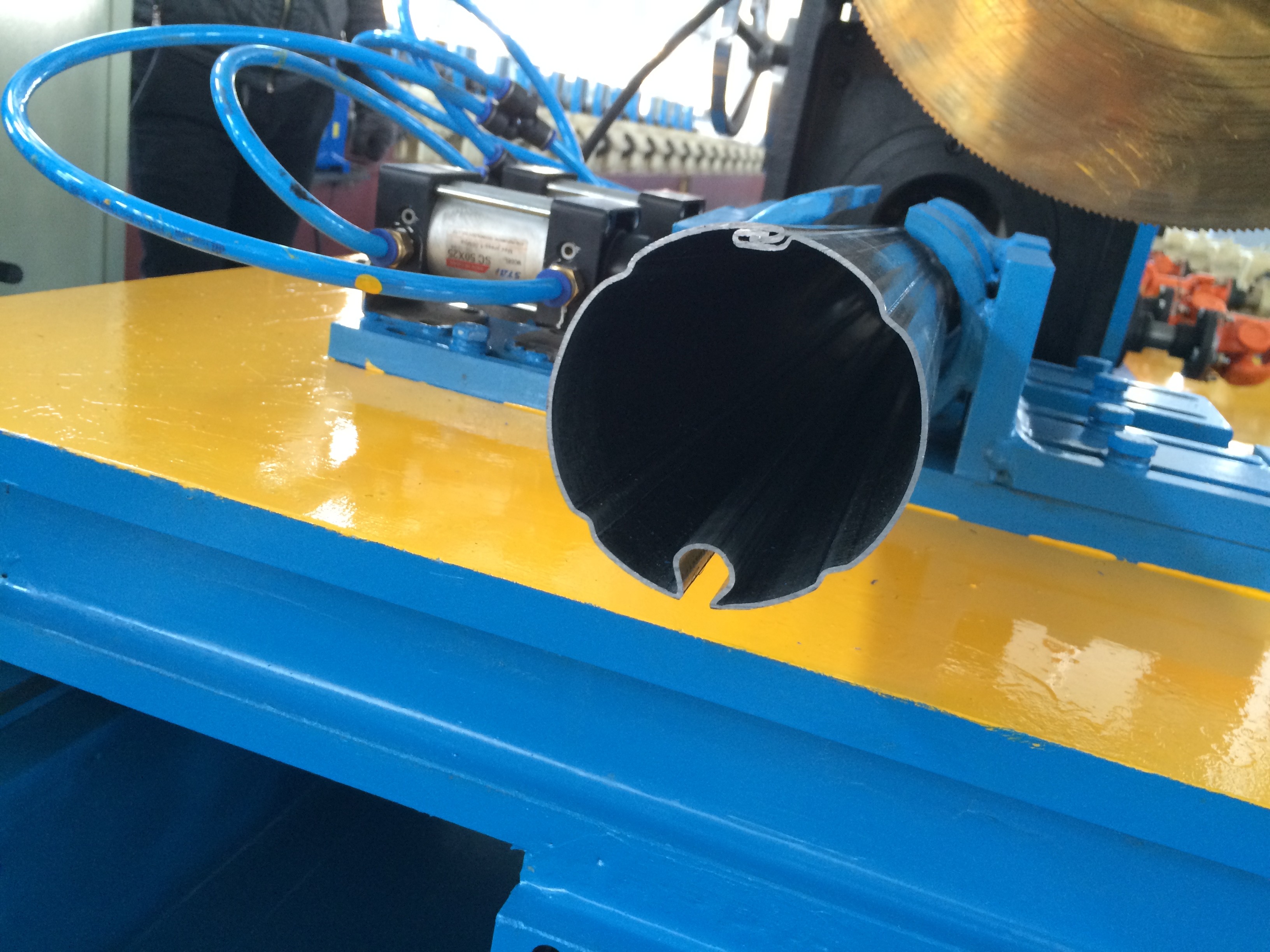

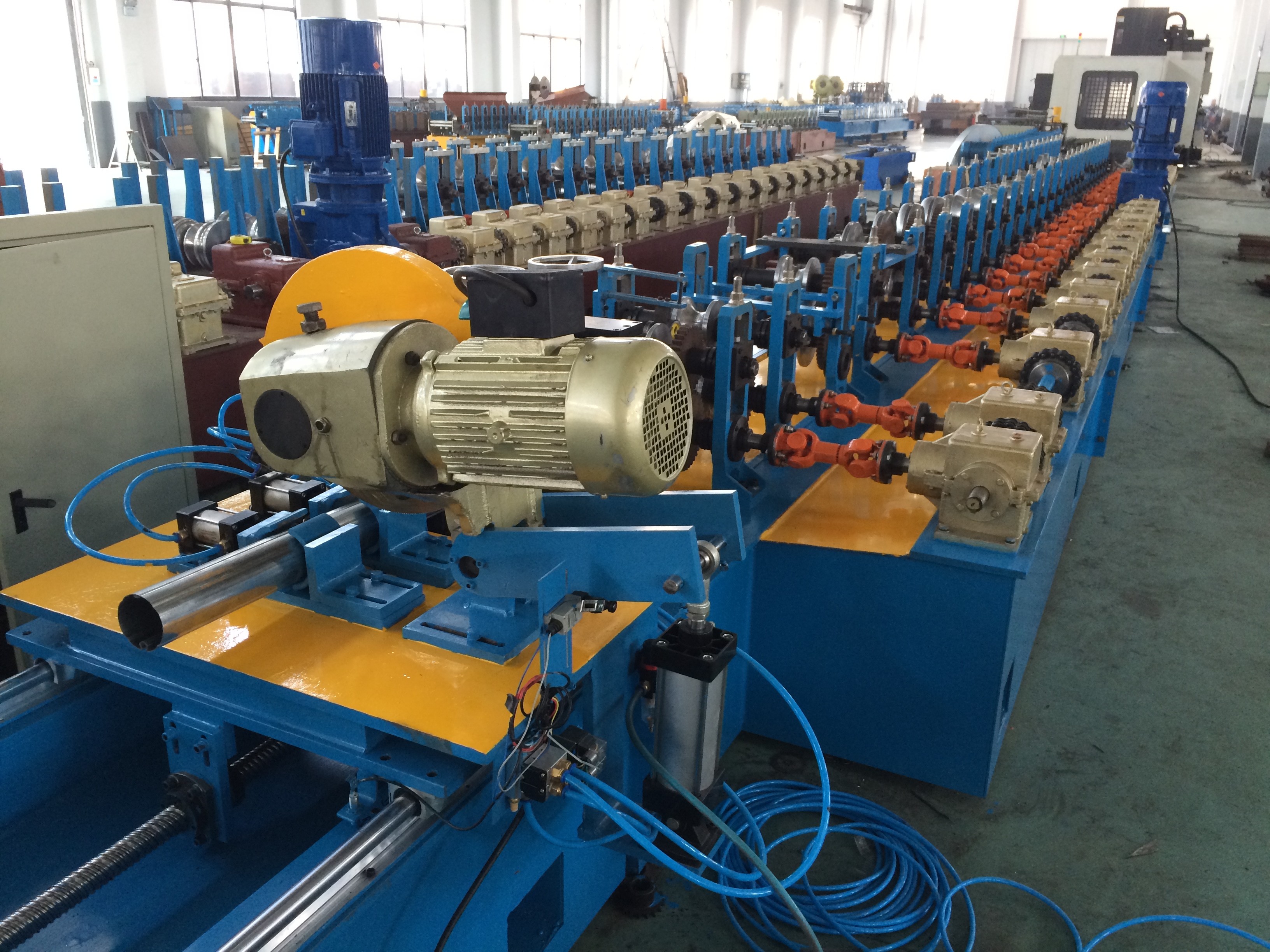

Awning Tube Round Pipe Roll Forming Machine For Sunshade Curtain System
TECHNICAL PARAMETER AS FOLLOWING:
1, Running material: Galvanized steel 1.0mm ~1.2mm
2, Forming speed: 10m/min
3, Forming stands: 24

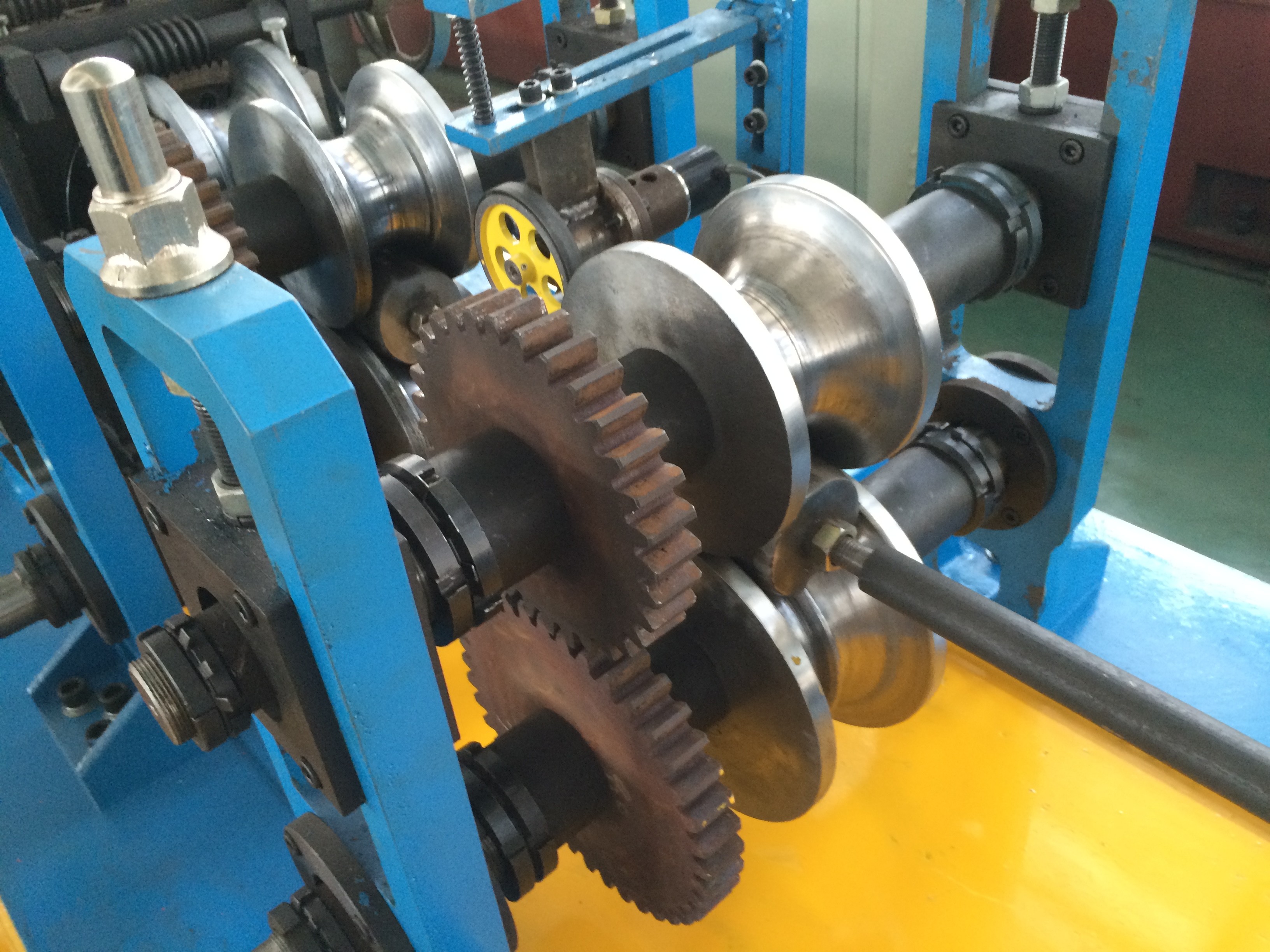

4, Roller material: GCr15,HRC60℃. diameter φ140,Maximal roller diameter:φ200
5, Material of shaft: #45 steel, China standard
6, Chain transmission system
7, Motor power: 7.5 KW; 380V; 50HZ/60HZ

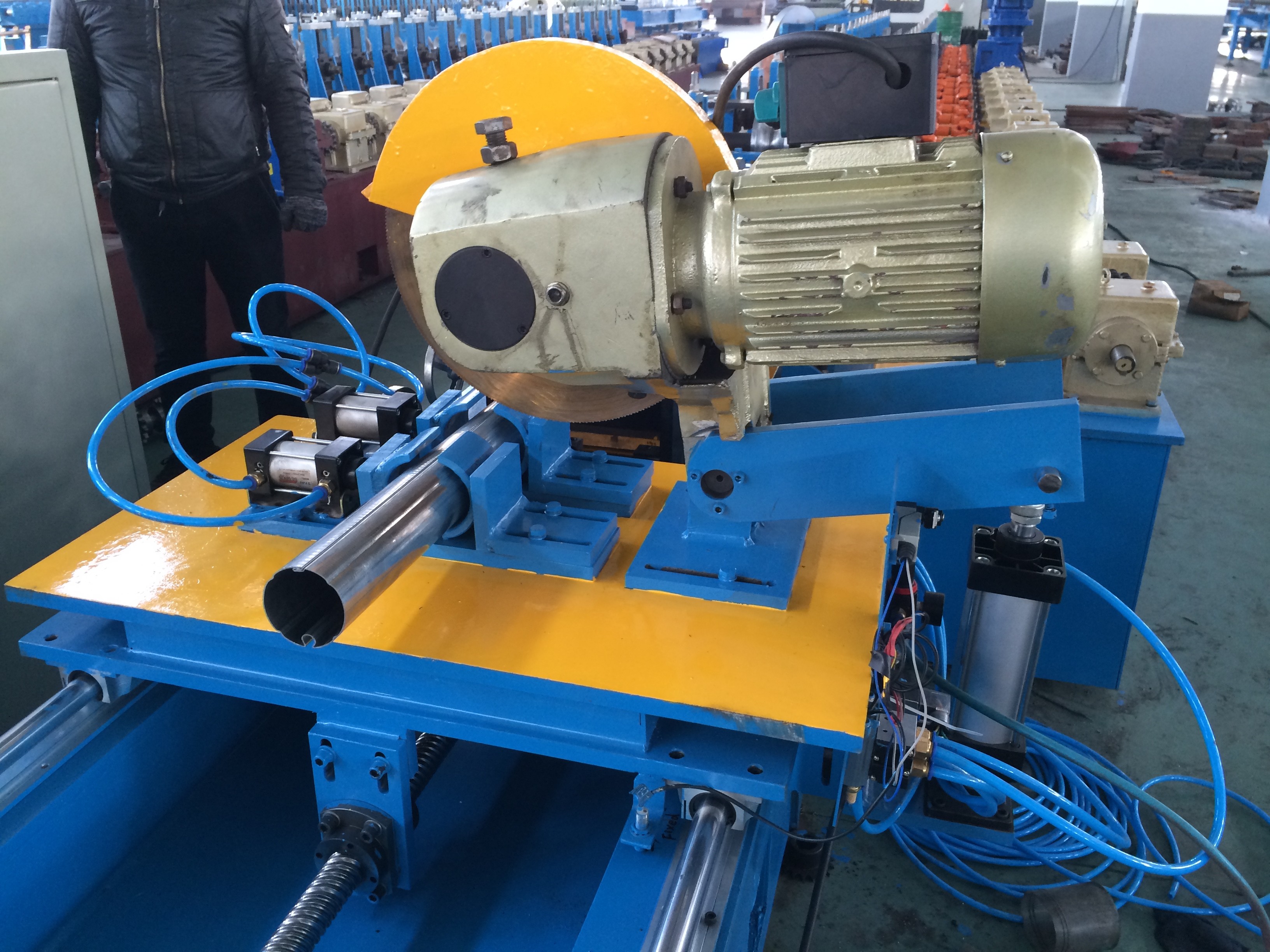

8, Cut-off system: Flying saw no stop cutting. Automatic cutting
9, Fly saw cutting motor power : 4 KW
10, Control system: Brand of Delta; Touch screen is brand of Delta；Encoder is Omron brand; the Inverter is the Delta brand; others low voltage electric components are Schneider Germany
11. Overall Dimension: 13000mmX1000mmX900mm
12. Total weight: 11 ton approximately
