Stainless Steel Retangle Square Pipe Making Machine With Argon Welding System
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-100-200 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 90 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Application | Stainless Pipe | Material | Stainless Steel |
|---|---|---|---|
| Welding Machine | Argon Welding Machine | Rollers Materila | SKD11 |
| Guarantee | 5 Years | Color | To Be Customized |
| Forming Station | 26 Stations | ||
| High Light | tube roll forming machine,downspout roll forming machine |
||
Product Description

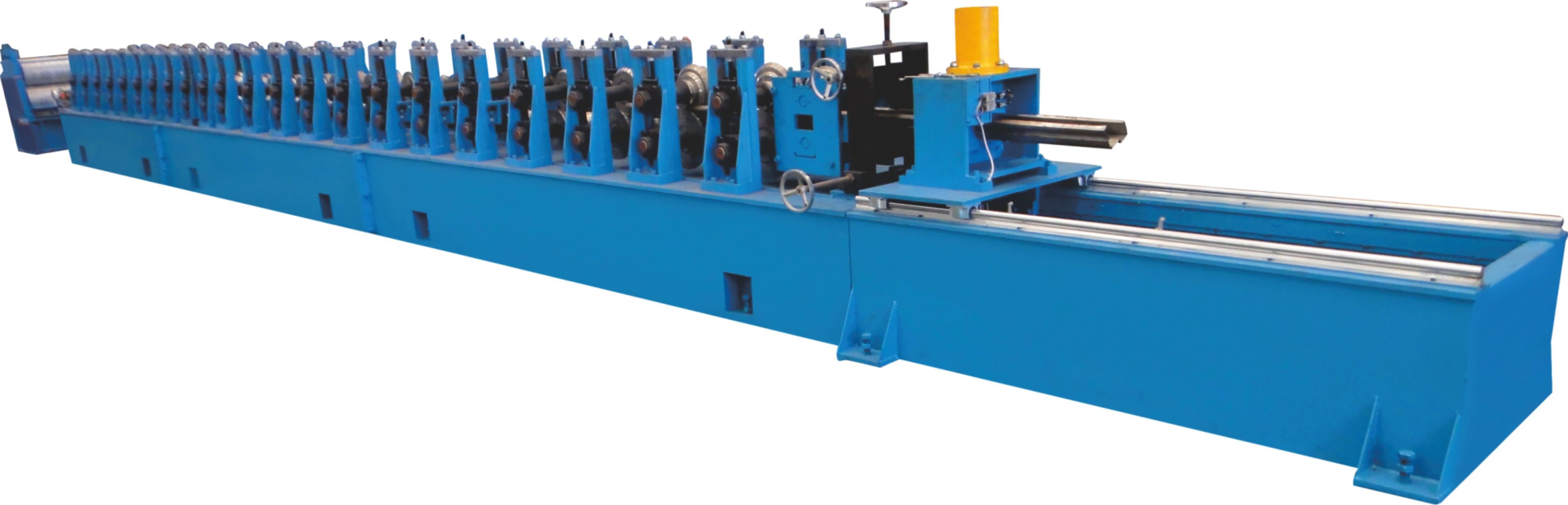

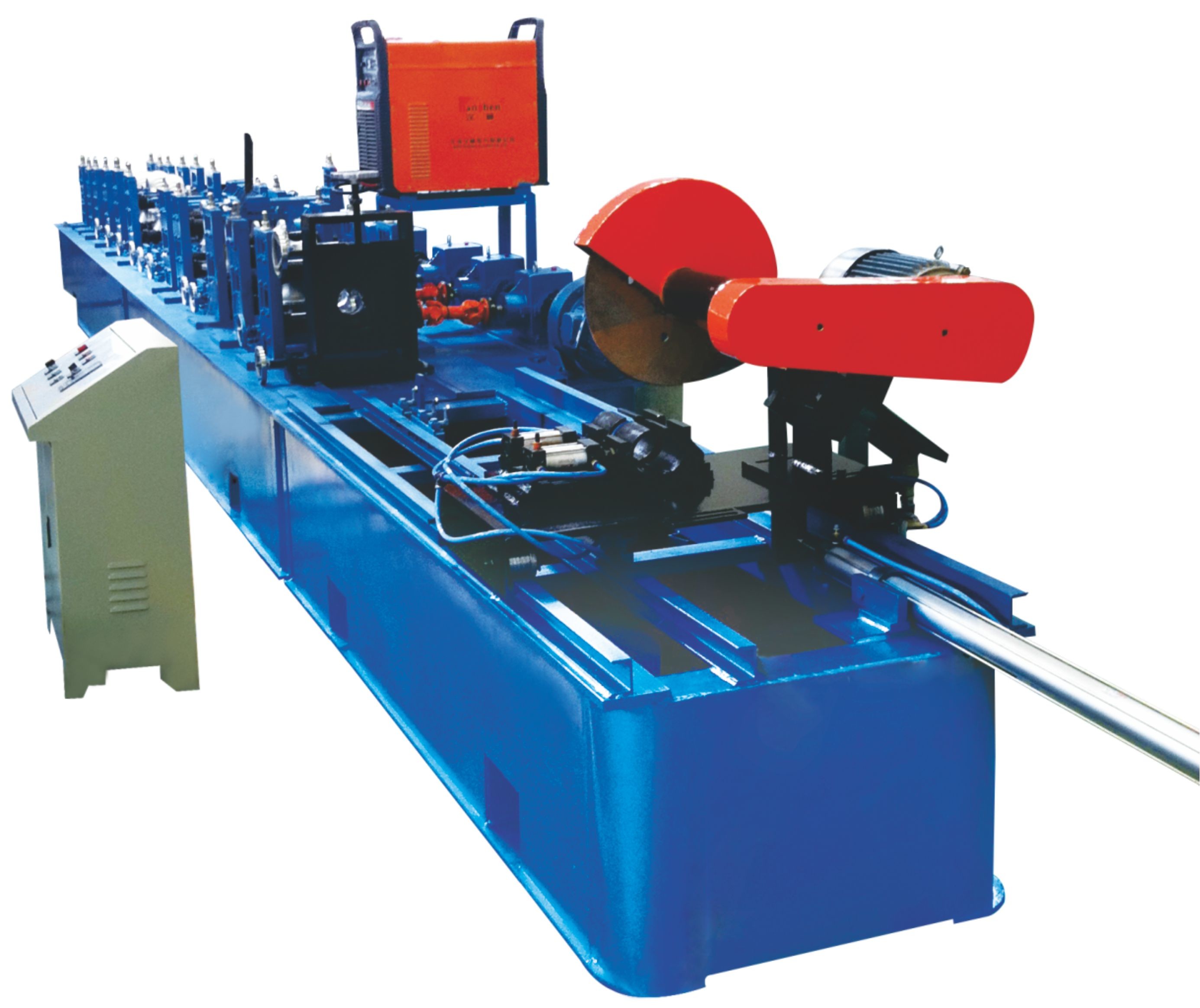

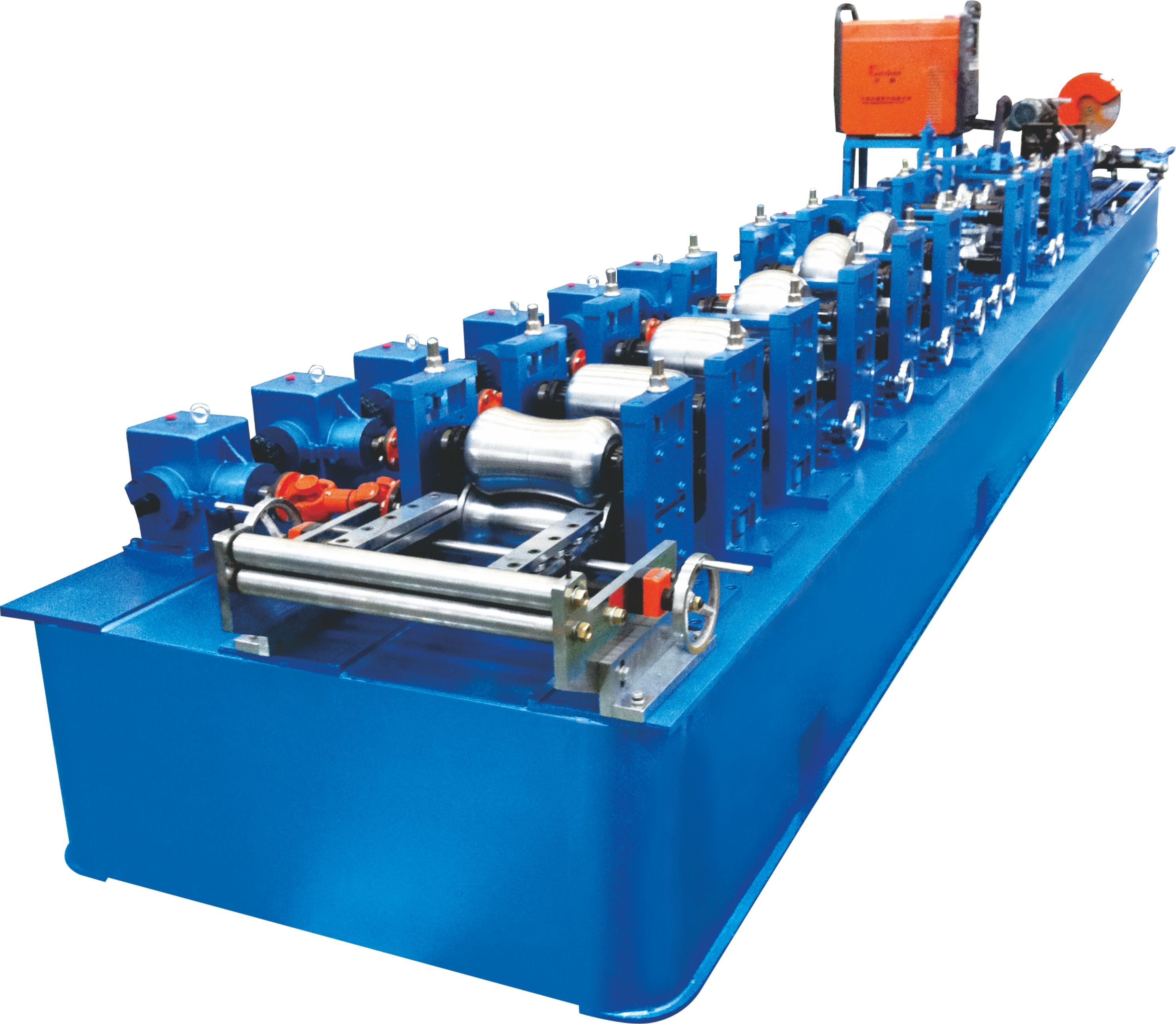

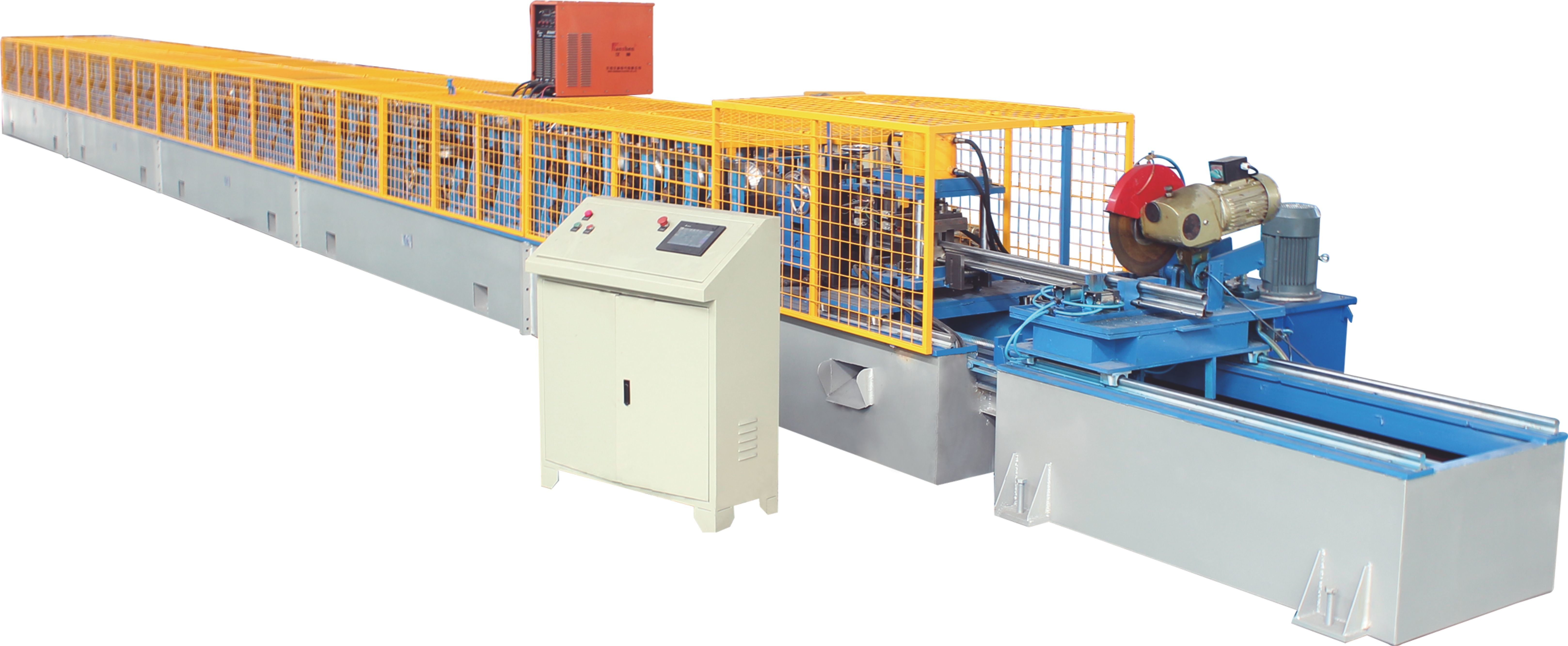

Stainless Steel Retangle Square Pipe Making Machine With Argon Welding System
1, Running material: STAINLESS STEEL
2, Forming speed: 6-10m/min (Punching is included)
3, Forming stands: 26
4, Roller material: SKD11,HRC 58~62 degree. Roller diameter φ120,Maximal roller diameter:φ200
5, Material of shaft: #45 steel, china standard
6, Transmission system: Chain or gear box. Optional
7, Motor power: 7.5KW
8, Cut-off system: Flying saw cutting system
9, Material of molding reamer: Punch holes; Material of cut :Cr12Mov；Quench: HRC58-62.feeding speed is 6—10m／min Mechanical press machine: 25 tons capacity.
10, Fly saw cutting motor power : 4 KW
11, Control system: Touch screen is brand of Delta；Encoder is Omron brand; the Inverter is the Delta brand; others low voltage electric components are Schneider brands Germany.
12. Overall Dimension: 16000mmX1000mmX900mm
13. Total weight: 12 ton approximately
