Windows And Doors Round Pipe Roll Forming Machine With International Standard Sizes
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-40-60-70mm |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 90 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Material | GI And Carbon Steel | Rollers Materila | SKD11 Or Cr15 |
|---|---|---|---|
| Hardness | HRC58~62 Degree | Color | To Be Customized |
| Punching | Press Punching Automatically | Cooling System | Cooling System From Beginning To The End |
| Forming Speed | 6m/min Automatic Punching Included | ||
| High Light | tube roll forming machine,steel pipe making machine |
||
Product Description
Windows And Doors Round Pipe Roll Forming Machine With International Standard Sizes
A). Main Specifications
- Main motor power: 7.5Kw
- Number of roll stand: About 20 stands
- Forming speed: 6m/min
- Voltage: 380 V, 3 Phase 50Hz ( or depend on customer’s requirement )
- Dimension of machine: About 12000mm*1100mm*1200mm
- Machine wight: about 12 Ton
- Material of Axis: High grade 45# steel
- Diameter of Axis: φ50mm
- Material of Roller: High grade 45#, polished and coated with 0.05mm Chrome Surface.
- Materical of Machine Frame: A3 Steel, thickness 18mm
- Electrical Control: PLC Frequency Control System with touch screen
- PLC: PANASONIC Brand
- Encoder: OMRON Brand
- Transducer: PANASONIC Brand
B). Main Components
Decoiler -------------------------------------------- 1 Unit
Feeding guide -------------------------------------- 1 Unit
main roll forming machine ------------------------ 1 Unit
Flying saw cutting device --------------------------- 1 Unit
Sensor device----------------------------------- 1 Unit
PLC computer control ------------------------------ 1 Unit
Output table ---------------------------------------- 1 Unit
Mechanical press machine -------------------------------------- 1 Unit
E). Competitive Advantages
1. Durable and widely used products
2.Simple to operate when assemble
3.Direct manufacturer, provide with high quality and best price.
4.Provide sample in free.
5.Products and design solution supplied fast and freely
6.Best design oriented for your special requirements

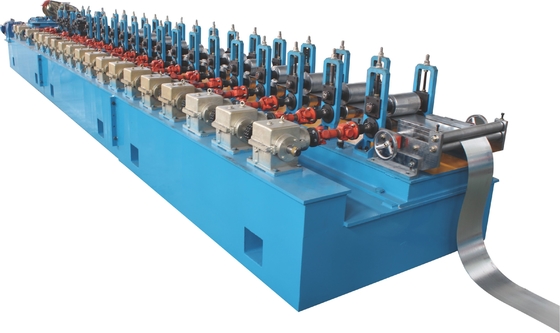

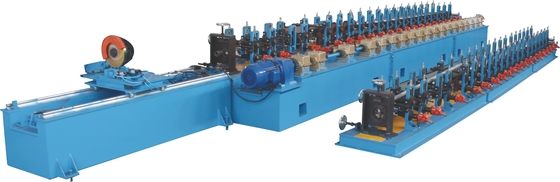

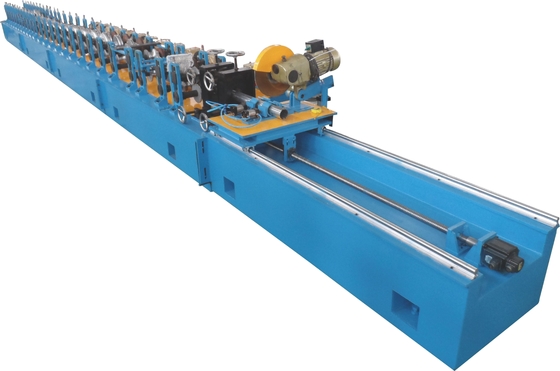

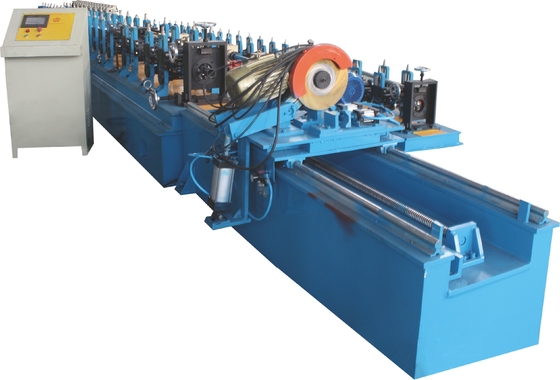

F). Machine Reference Pictures
