PLC Control C Purlin Roll Forming Machine / Z Purlin Machine With Hydraulic Cutter
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-80-300 |
| Minimum Order Quantity | 1 set |
| Price | USD25000~USD45000 |
| Packaging Details | water proof package |
| Delivery Time | 70 days |
| Supply Ability | 2 per month |
Product Details
| Customized Pattern | PLC Control, Automatic Cutting | CE Certification | Blue And Yellow; Pre-punching Automatic, Quick Change System |
|---|---|---|---|
| High Light | cz purlin roll forming machine,c channel roll forming machine |
||
Product Description

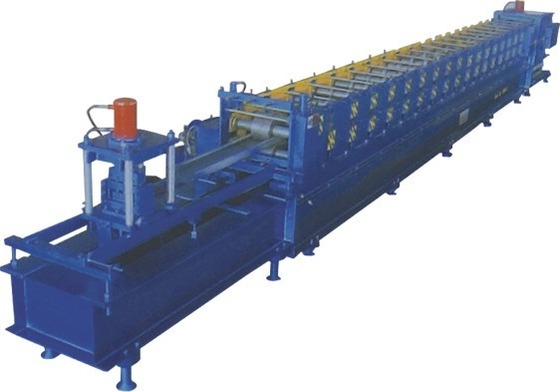

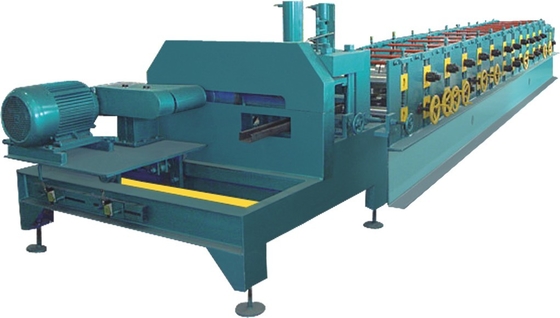

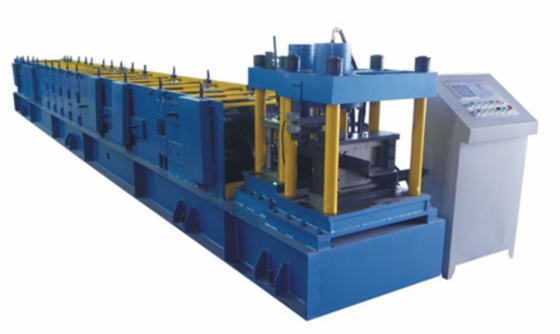

PLC Control C Purlin Roll Forming Machine / Z Purlin Machine With Hydraulic Cutter
| NO. | name | quantity |
| Main roll former | ||
| 1 | Un-coiler (2 tons ) MANUAL | 1 |
| 2 | roll former | 1 |
| 3 | Hydraulic cutter | 1 |
| 4 | PLC control cabinet | 1 |
| 5 | Output table with rollers(6 meters) | 1 |
TECHNICAL DETAILS
Un-coiler
1. Capacity: 2 tons
2. Material: #45 steel quenched
3. Inner diameter: 410~ 580mm
Main roll former
1. Stations: 12
2. Rollers material: CR 15;HRC 60. chrome coated: 0.03~0.05mm. the Strength in Mpa :70 TON,800 MPA
3. Shaft material: Diameter: 40mm, material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA
4. Bearing brand: FAG Germany
5. Main Motor: 5.5 KW, 380V, 50HZ
CHAMICAL COMPOSITION:
| C | SI | MN | P | S | CR | NI | CU | MO | AI | V | B | |
| Shaft | 0.450 | 0.220 | 0.540 | 0.027 | 0.008 | 0.050 | 0.020 | 0.010 | 0.000 | 0.009 | 0.000 | 0 |
| Rollers | 1.00 | 0.32 | 0.33 | 0.011 | 0.003 | 1.49 | 0.05 | 0.00 | 0.02 | 0.041 | ||
| Cutter | 1.57 | 0.34 | 0.38 | 0.022 | 0.010 | 11.10 | 0.18 | 0.14 | 0.48 | |||
| Cut knife | 2.04 | 0.23 | 0.23 | 0.020 | 0.010 | 11.66 | 0.12 | 0.06 |
PLC Control Cabinet:
1. Touch screen brand: Delta
2. PLC brand: Delta
3. Inverter brand: Delta
4. Main components for low pressure electricity: Schneider Germany
Output table
1. Length: 6 meters
2. Drive type: Rollers
CUTTING PLATFORM
1. Cutting type: Hydraulic Fly cutter with servo control system
2. Motor: 4KW; 380V; 50HZ
3. Material of cut die: CR12MOV; Quenched; the Strength in MPA: 950
