Steel CZ Shaped Purlin Roll Forming Machine with 16 Main Rollers Forming Stations
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-50-200 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 70 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Material | GI And PPGI | Input Sheet Thickness | 1.5~3.0mm |
|---|---|---|---|
| Forming Stations | 14 Stations | Guarantee | 5 Years |
| Rollers Material | SKD11 Or CR15 | Hardness | HRC58~62 Degree, Chromed |
| Color | To Be Customized | ||
| High Light | c&z purlin forming machine,c channel roll forming machine |
||
Product Description
Steel CZ Shaped Purlin Roll Forming Machine with 16 Main Rollers Forming Stations for CZ Purlin Sheet
One machine can produce different C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers, spacers. In the process, machine adopt automatic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc data. The roller for C & Z are changed very quickly without dismantle any parts.
A).Main Specification
- Material: G.i Coil or Carbon steel
- Material Thickness:1.0-3.0mm
- Landscape orientation adjustment range of Hole distance : 45-500mm
- Length of purlin: >3m
- Shaft Diameter: Φ80mm Max.
- Forming Stations: about 16 Main rollers
- Leveling Stations: 7
- Feeding Stations: 2
- Main Power: 20KW
- Machine Diameter: about 12000mm(L)x2300mm(W)x1600mm(H) ( including main motor )
- Weight of machine: about 12 Ton
- Punching Model: Hydraulic Pre-Punching
- This line main forming drive adopt reducer motor and frequency conversion control, speed control…
- It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.
- Punching Die Material: Crv12MOV Steel
B). Working Flow
Decoiler --- Feeding & Leveling Device --- Punching --- Cutting --- Main Forming --- Rectify Device --- Run out table
C). Components
- Decoiler -------------------------------------------- 1 Unit
- Feeding & Leveling -------------------------------- 1 Unit
- Hydraulic punching device ------------------------ 1 Unit
- Hydraulic cutting device --------------------------- 1 Unit
- Main roll forming machine ------------------------- 1 Unit
- Hydraulic Station ----------------------------------- 1 Unit
- PLC computer control ------------------------------ 1 Unit
- Output table ---------------------------------------- 1 Unit
D). Applications
Steel cz purlins, c/z purlins, steel structuere cz purlin, metal cz purlins
E). Competitive Advantages
High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience
Simple to operate when assemble
Easy to handle the products
Direct manufacturer, provide with high quality and best price.

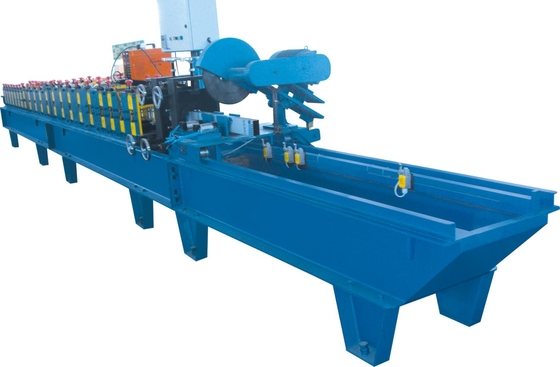

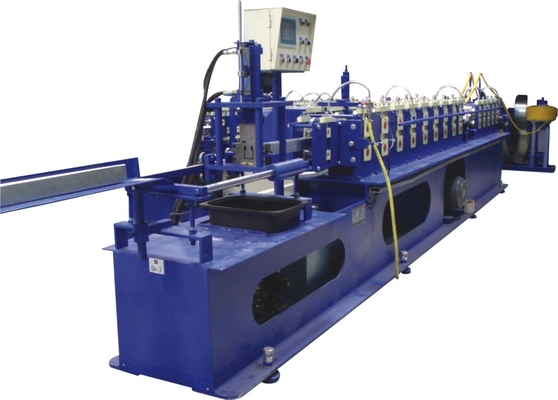

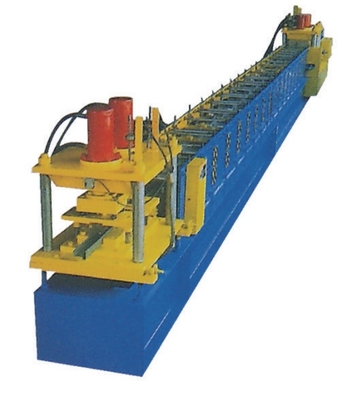

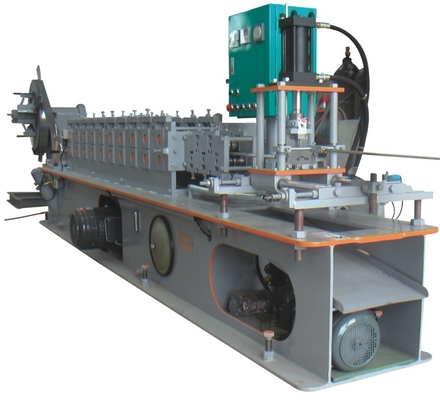

F). Reference Pictures
