17 Main Rollers Hot Cold Roll Forming Machine For Thickness 1.5 - 3.0mm Cz Purlin Machine
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-300-50 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 60 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Guarantee | 5 Years | Rollers Material | SKD11 Or CR15 Mould Steel |
|---|---|---|---|
| Thickness | 1.5~3.0mm | Motor Power | 15KW, 380V, 50HZ |
| Hardness | HRC58~62 Degree | ||
| High Light | c&z purlin forming machine,c channel roll forming machine |
||
Product Description
Cold / Hot Roll Forming Machine For CZ Purlin With 17 Main Rollers For Thickness 1.5-3.0mm LB-CZ300
Main Speicfication
- One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
- C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
- It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.
- Material: G.i Coil or Carbon steel
- Material Thickness:1.0-3.0mm
- Landscape orientation adjustment range of Hole distance : 45-500mm
- Length of purlin: >3m
- Forming Stations: about 16 Main rollers
- Leveling Stations: 7
- Feeding Stations: 2
- Main Power: 20KW
- Weight of machine: about 18.5 Ton
Main Components
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Main Roof Tile Roll Forming Machine | 1 Unit |
| Hydraulic Pressing for Step | 1 Unit |
| Hydraulic Cutting System | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Box | 1 Unit |
| Support Tables | 1 Unit |
Application
Steel cz purlins, c/z purlins, steel structuere cz purlin, metal cz purlins
Profile Drawing
Advantages
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience

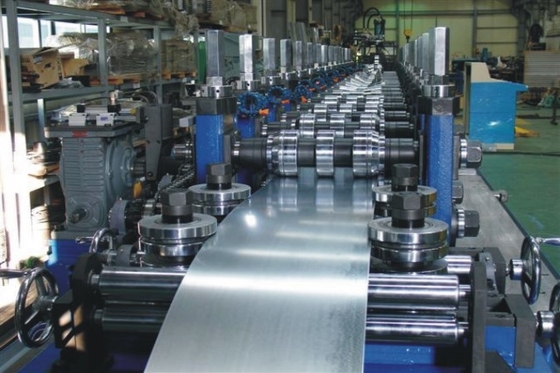

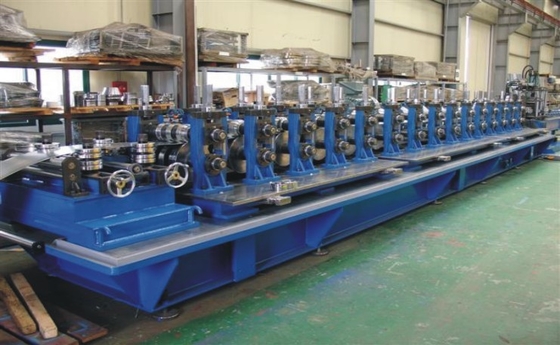

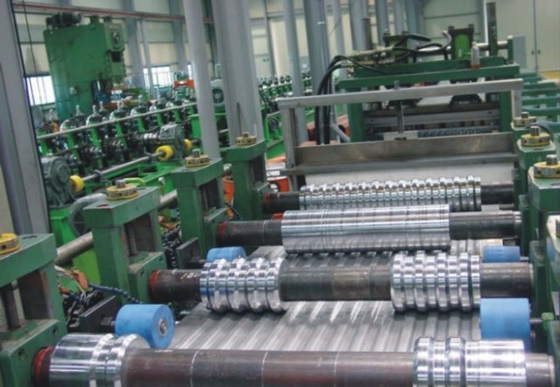

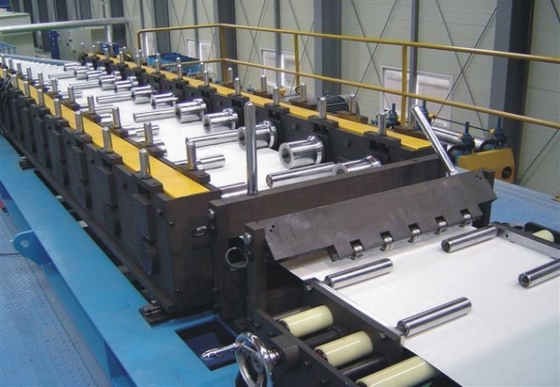

Machine Pictures
