G.I Coil / Carbon Purlin Roll Forming Machine With Touch Screen

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-400-500
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 70 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Material GI And PPGI Color To Be Customized
Guarantee 5 Years Input Sheet Thickness 1.5~3.0mm
Rollers Material SKD11 Or CR15 Mould Steel Hardness HRC58~62 Degree, Chromed
High Light

cz purlin roll forming machine

,

c&z purlin forming machine
Leave a Message
Product Description

Quick Interchangeable CZ Purlin Roll Forming Machine With Plc Touch Screen Control System, Thickness 1.0-3.0mm



Main Components



Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Main Roof Tile Roll Forming Machine 1 Unit
Hydraulic Pressing for Step 1 Unit
Hydraulic Cutting System 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Box 1 Unit
Support Tables 1 Unit



Main Specification



  1. One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
  2. C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
  3. This line main forming drive adopt reducer motor and frequency conversion control, speed control…
  4. It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min
Material G.i Coil or Carbon steel
Material Thickness 1.0-3.0mm
Length of purlin >3m
Forming Stations about 16 Main rollers
Leveling Stations 7
Feeding Stations 2
Main Power 20KW
Machine Diameter about 12000mm(L)x2300mm(W)x1600mm(H) ( including main motor )
Weight of machine about 18.5 Ton







Application



Steel cz purlins, c/z purlins, steel structuere cz purlin, metal cz purlins



Profile Drawing



Quick Interchangeable G.I Coil / Carbon Roll Forming MachineS With Touch Screen

Main Componenets



  1. Decoiler -------------------------------------------- 1 Unit
  2. Feeding & Leveling -------------------------------- 1 Unit
  3. Hydraulic punching device ------------------------ 1 Unit
  4. Hydraulic cutting device --------------------------- 1 Unit
  5. Main roll forming machine ------------------------- 1 Unit
  6. Hydraulic Station ----------------------------------- 1 Unit
  7. PLC computer control ------------------------------ 1 Unit
  8. Output table ---------------------------------------- 1 Unit

Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience



Machine Pictures

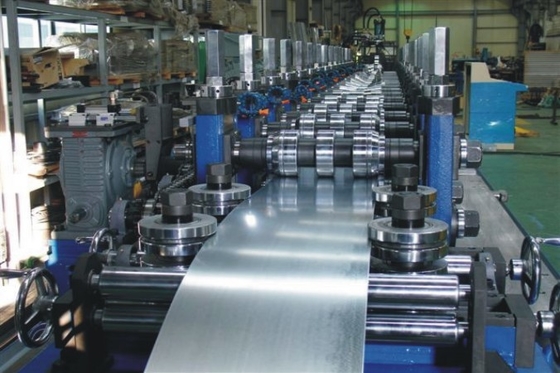

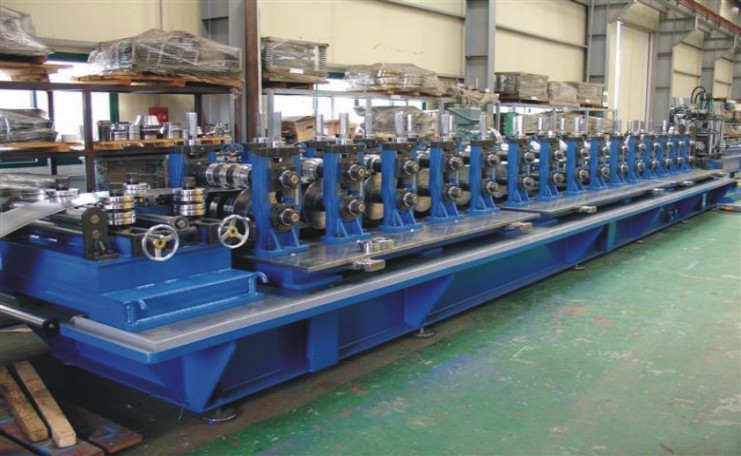

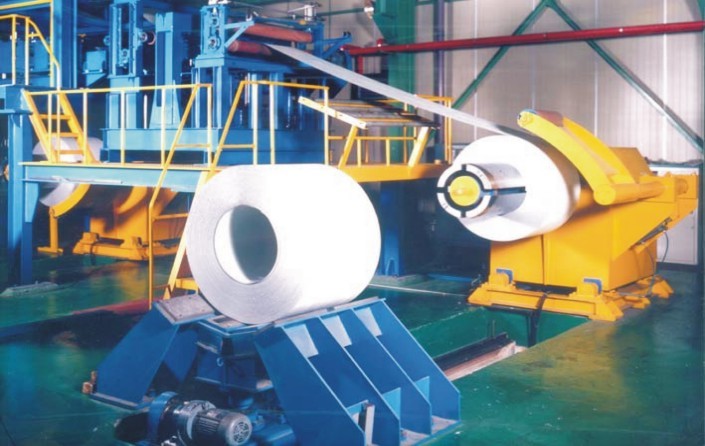

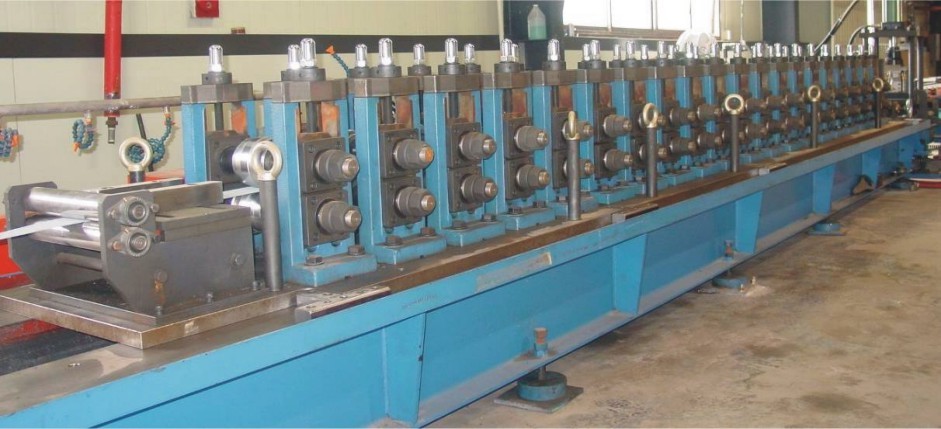

G.I Coil / Carbon Purlin Roll Forming Machine With Touch Screen 1G.I Coil / Carbon Purlin Roll Forming Machine With Touch Screen 2G.I Coil / Carbon Purlin Roll Forming Machine With Touch Screen 3G.I Coil / Carbon Purlin Roll Forming Machine With Touch Screen 4
