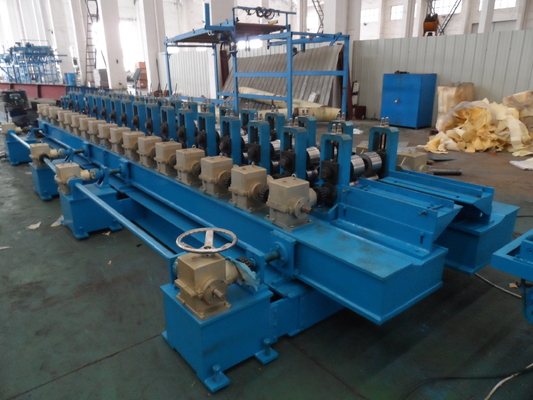

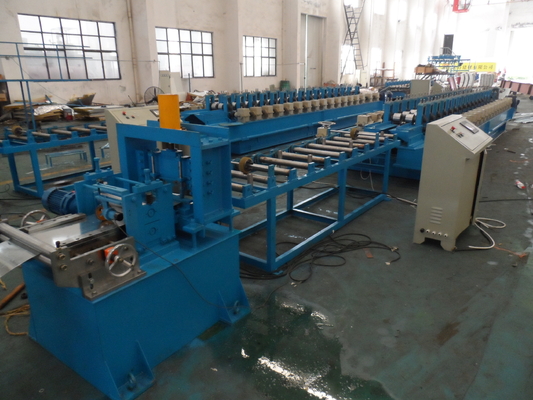

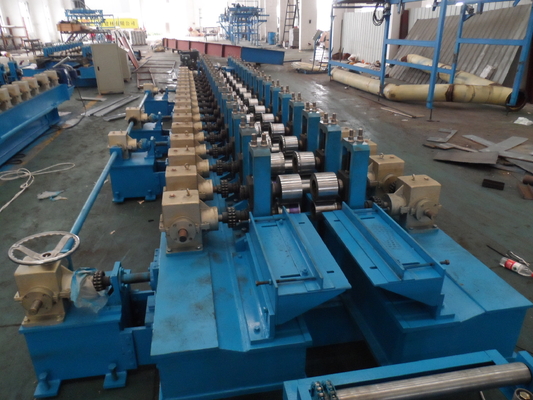

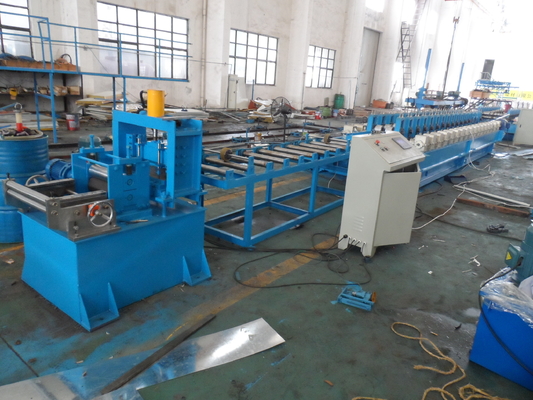

14 Forming Station C Channel Roll Forming Machine For C Shape Purlin 1.5 - 3.0mm
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-50-200-300 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 80 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 2 per month |
Product Details
| Motor Power | 15KW, 380V,50HZ | Material | GI And PPGI |
|---|---|---|---|
| Input Sheet Thickness | 1.5~3.0mm | Forming Speed | 6~12m/min |
| Color | To Be Customized | Rollers Material | SKD11 Or CR15 Mould Steel |
| Hardness | HRC58~62 Degree, Chromed | ||
| High Light | cz purlin roll forming machine,c&z purlin forming machine |
||
Product Description
14 Forming Station C Purlin Roll Forming Machine For 0-15m/min Forming Speed C Shape Purlin
Main Specification
| Material thickness | 1.5-3.0mm |
| Model | C80-300 |
| Material | GI, Carbon steel |
| Machine diameter | about 11500x1500x1300mm ( LXWXH ) |
| Weight of machine | about 10 Ton |
| Decoiler | Manual or hydraulic decoiler ( customer can choose ) |
| Weight capacity of decoiler | 5 Ton |
| Forming station | 14 |
| Principle axis | 75mm diameter |
| Forming speed | 0-15m/min |
| Drive type | 1.5' chain transmission |
| Roller material | GCr15 steel, quenched and heated process |
| Main power | 15 kw |
| Hydraulic power | 11kw |
| Punching | Hydraulic Punching |
| Electrical Control | PLC Frequency Control System with touch screen |
| PLC | PANASONIC Brand |
| Encoder | OMRON Brand |
| Transducer | PANASONIC Brand |
Work Flowing
Decoiler --- Fedding & Leveling --- Roll Forming --- Punching --- Cut-to-length --- Run out table
Application
Steel cz purlins, c/z purlins, steel structuere cz purlin, metal cz purlins
Reference Drawing
Main Components
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Main Roof Tile Roll Forming Machine | 1 Unit |
| Hydraulic Pressing for Step | 1 Unit |
| Hydraulic Cutting System | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Box | 1 Unit |
| Support Tables | 1 Unit |
Advantages
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
