PLC Touch Screen Control Carbon Steel Purlin Roll Forming Machine For 1.5 - 3.0mm Thickness
| Place of Origin | WUXI CHINA |
|---|---|
| Brand Name | LONGBO |
| Certification | CE; ISO9001 |
| Model Number | LB-300 |
| Minimum Order Quantity | 1 set |
| Price | negotiation |
| Packaging Details | water proof package |
| Delivery Time | 60 days |
| Payment Terms | L/C, D/P, T/T |
Product Details
| Motor Power | 15KW, 380V,50HZ | Material | GI And PPGI |
|---|---|---|---|
| Input Sheet Thickness | 1.5~3.0mm | Rollers Material | SKD11 Or CR15 Mould Steel |
| Hardness | HRC58~62 Degree, Chromed | Color | To Be Customized |
| High Light | c&z purlin forming machine,c channel roll forming machine |
||
Product Description
PLC Touch Screen Control Carbon Steel C Purlin Roll Forming Machine For Thickness 1.5-3.0mm
Main Specification
| Material | GI, Carbon steel |
| Material thickness | 1.5-3.0mm |
| Machine diameter | about 11500x1500x1300mm ( LXWXH ) |

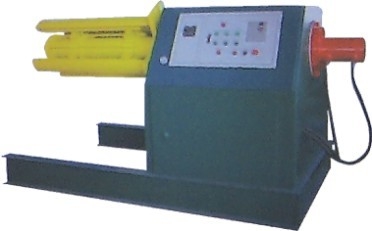

| Decoiler | Manual or hydraulic decoiler ( customer can choose ) |
| Weight capacity of decoiler | 5 Ton |
| Forming station | 14 |
| Principle axis | 75mm diameter |
| Forming speed | 0-15m/min |
- Drive type: 1.5' chain transmission
- Roller material: GCr15 steel, quenched and heated process
- Main power: 15KW
- Hydraulic power: 11KW
- Punching: hydraulic punching
- Electrical Control: PLC Frequency Control System with touch screen
- PLC: PANASONIC Brand
- Encoder: OMRON Brand
- Transducer: PANASONIC Brand
Main Components
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Main Roof Tile Roll Forming Machine | 1 Unit |
| Hydraulic Pressing for Step | 1 Unit |
| Hydraulic Cutting System | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Box | 1 Unit |
| Support Tables | 1 Unit |
Work Flowing
Decoiler --- Fedding & Leveling --- Roll Forming --- Punching --- Cut-to-length --- Run out table
Profile Drawing
Application
C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure
Advantages
- High Quality
- Reliable
- Durable
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience

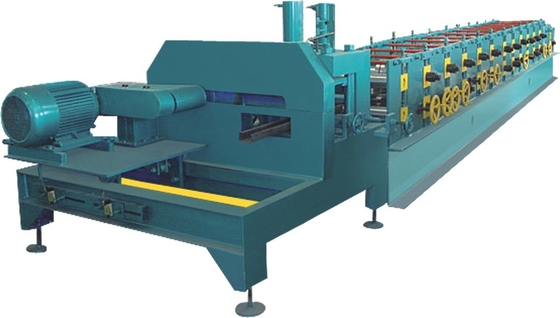

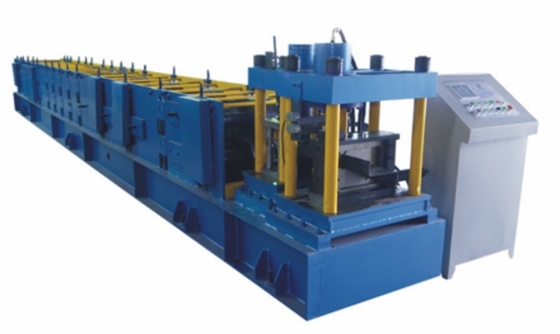

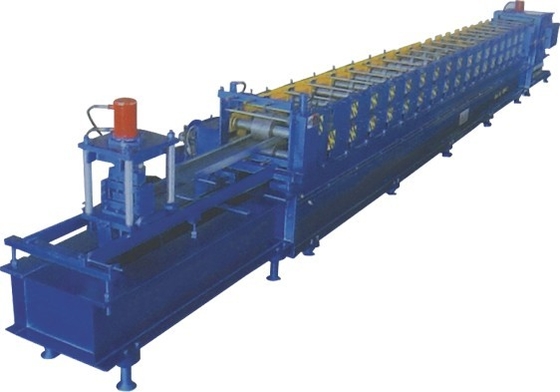

Machine Pictures
