Steel Roll Forming Machine For Purlin Special U Profile With 15 KW Main Power

Steel U Purlin Roll Forming Machine for Special U Purlin Profile with 15 KW Main Power

A). Main Specifications

1. Material: GI, Carbon steel
2. Material thickness: 1.5-3.0mm
3. Machine diameter:about 11500mm x 1500mm x 1300mm ( LXWXH )
4. Weight of machine: about 10 Ton
5. Decoiler: Manual or hydraulic decoiler ( customer can choose )
6. Weight capacity of decoiler: 5 Ton
7. Forming station: 14
8. Principle axis: 75mm diameter
9. Forming speed: 0-15m/min
10. Drive type: 1.5' chain transmission
11. Roller material: GCr15 steel, quenched and heated process
12. Main power: 15KW
13. Hydraulic power: 11KW
14. Punching: hydraulic punching
15. Electrical Control: PLC Frequency Control System with touch screen
16. PLC: PANASONIC Brand
17. Encoder: OMRON Brand
18. Transducer: PANASONIC Brand

B). Main Components

1. Decoiler ----------------------------------------------- 1 Unit
2. Feeding & Leveling --------------------------------- 1 Unit
3. Hydraulic punching device ------------------------ 1 Unit
4. Hydraulic cutting device --------------------------- 1 Unit
5. Main roll forming machine ------------------------- 1 Unit
6. Hydraulic Station ------------------------------------ 1 Unit
7. PLC computer control ------------------------------ 1 Unit
8. Output table ------------------------------------------ 1 Unit

C). Working Flow

Decoiler --- Fedding & Leveling --- Roll Forming --- Cut-to-length --- Run out table

D). Applications

u purlin, u shaped purlin, u channel, u section, u profile, u shape, steel u purlin,u purlin steel structure

E). Competitive Advantages

1. Durable and widely used products

2. Simple to operate when assemble

3. Easy to handle the products

4. Direct manufacturer, provide with high quality and best price.

5. Provide sample in free.

6. Products and design solution supplied fast and freely

7. Best design oriented for your special requirements

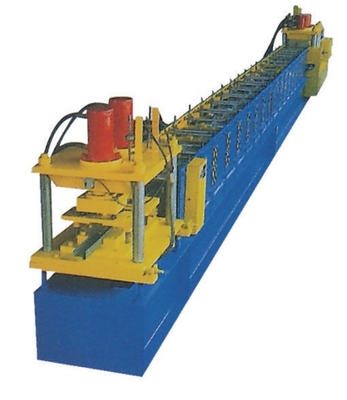

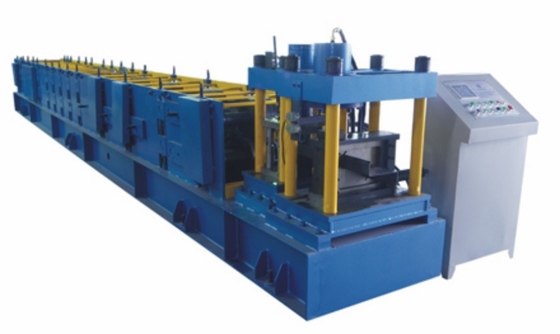

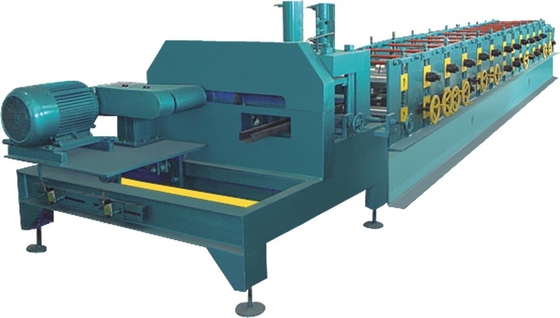

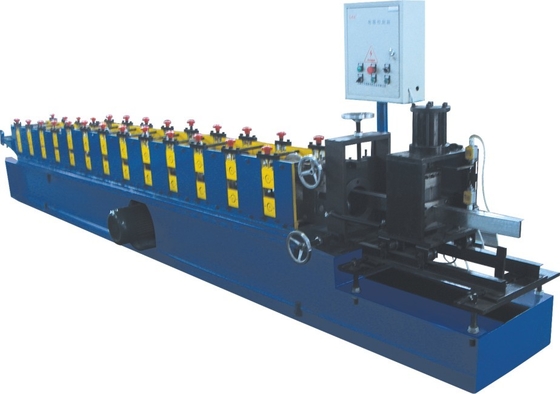

F). Machine Reference Pictures
