Chain Drive Roofing Tile Forming Machine With Fully Automatic Control

  • img.alt
  • img.alt
  • img.alt
  • img.alt
Place of Origin WUXI CHINA
Brand Name LONGBO
Certification CE; ISO9001
Model Number LB-400-500-600
Minimum Order Quantity 1 set
Price negotiation
Packaging Details water proof package
Delivery Time 50 days
Payment Terms L/C, D/P, T/T
Supply Ability 2 per month
Product Details
Material PPGI Input Sheet Thickness 0.3~0.8mm
Guarantee 5 Years Color To Be Customized
Material Of Rollers #45 Hardness HRC58~62 Degree
High Light

roof tile roll forming machine

,

glazed tile roll forming machine
Leave a Message
Product Description

Chain Drive Roof Tile Making Machine With Touch Screen PLC Frequency Control System





Main Specification



PLC Frequency Control Metal Roof Tile Making Machine For Material Thickness 0.3-0.8mm
Material Thickness 0.3-0.8mm
Coil Width Customized, 1000mm or 1200mm or 1250mm
Yield Strength 250-300 Mpa
Material PPGI,Color Steel,GI
Decoiler/Uncoiler Uncoiler Type Manual or Hydraulic or Auto Type
Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
Tile Roll Forming Machine Forming Stations 13-18 Stations ( Depend on Profiles )
Roller material 45# steel, surface coated with 0.05mm hard chrome
Diameter of shaft 76mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed 0-15m/min
Main power 5.5KW
Cutting Device Cutting type Hydraulic cutting
Cutting Die Material Cr12Mov steel, HRC58-62
CuttingTolerance 10m+/-1.5mm
Encoder OMRON Brand



Product Description



  • This Glazed Tile Roll Forming Machine can rollform metal roof tiles. After roll formed by this glazed roof tile roll forming machine, the surface of metal roof glazed tile is very smooth and beautiful without any scratch on the surface of tile profile sheets.
  • The Steel Glazed Roof Tile Roll Forming Machine is with fully automatic control system with PLC.
  • Length, quantity of sheets is adjustable.
  • Rollforming process: Decoiler, Rollforming, Pressing & Cut to length.
  • Easy operation: Key in the length and quantity on the control panel.
  • 5Years warranty, lifelong time service.



Work Flowing



Decoiler ---> Fedding Guide ---> Roll Forming ---> Pressing ---> Cut-to-length ---> Run out table



Application



Glazed tile, Roof Tile, Metal roof tile; steel roof tile; color steel tile; color glazed tile; wave tile; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding



Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience
  • Copra designing software

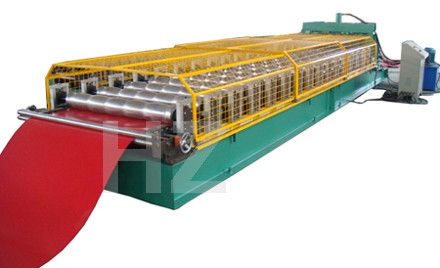

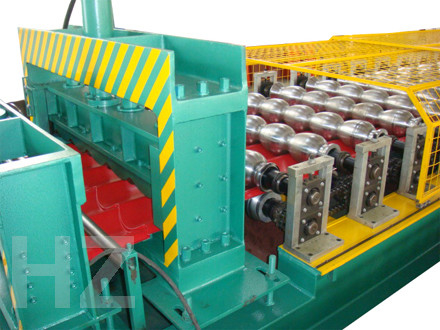

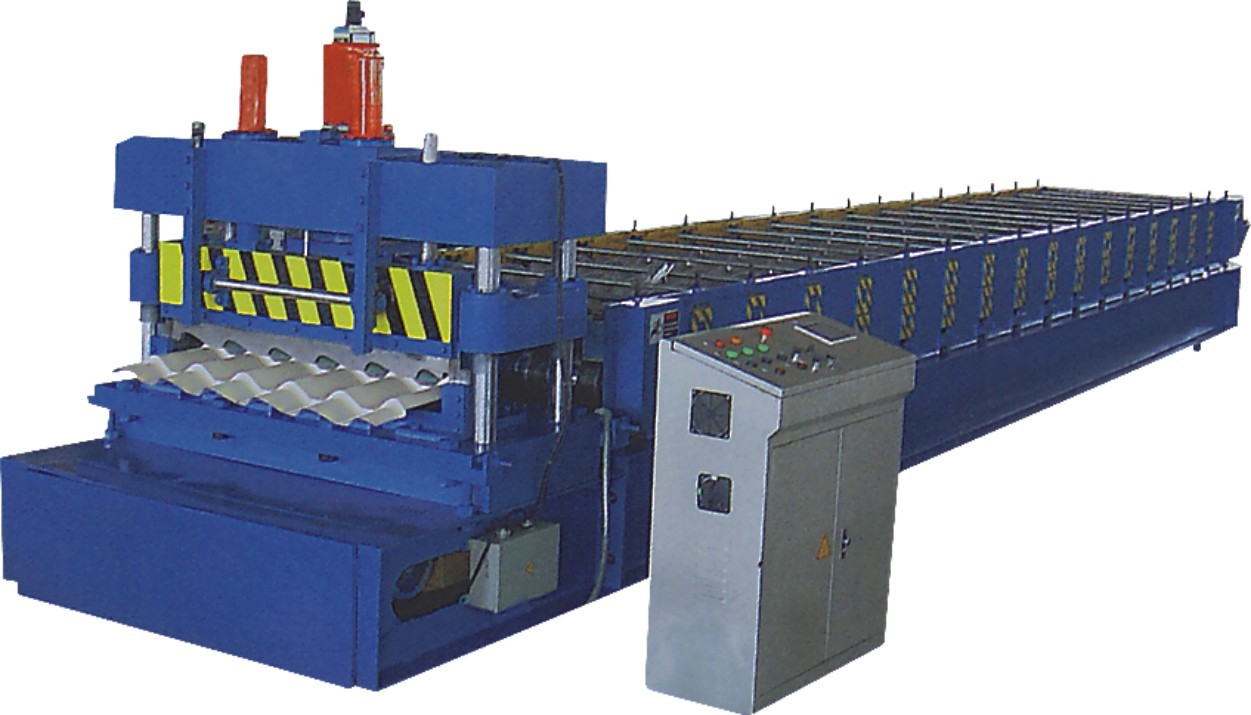

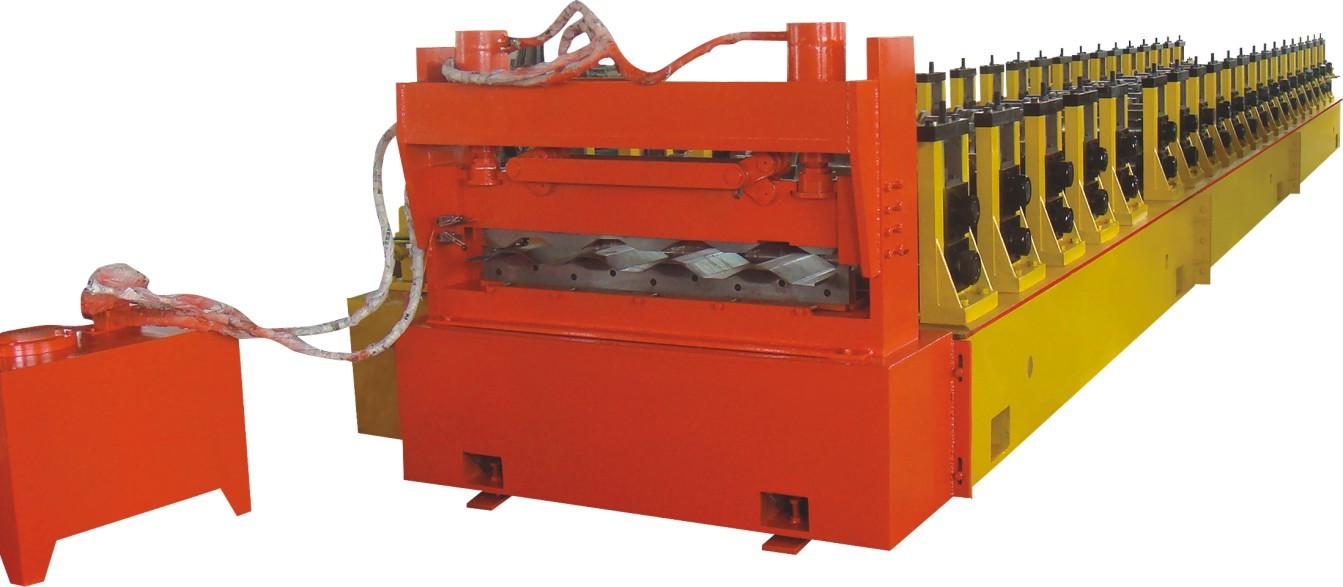

  • Chain Drive Roofing Tile Forming Machine With Fully Automatic Control 0Chain Drive Roofing Tile Forming Machine With Fully Automatic Control 1Chain Drive Roofing Tile Forming Machine With Fully Automatic Control 2Chain Drive Roofing Tile Forming Machine With Fully Automatic Control 3
